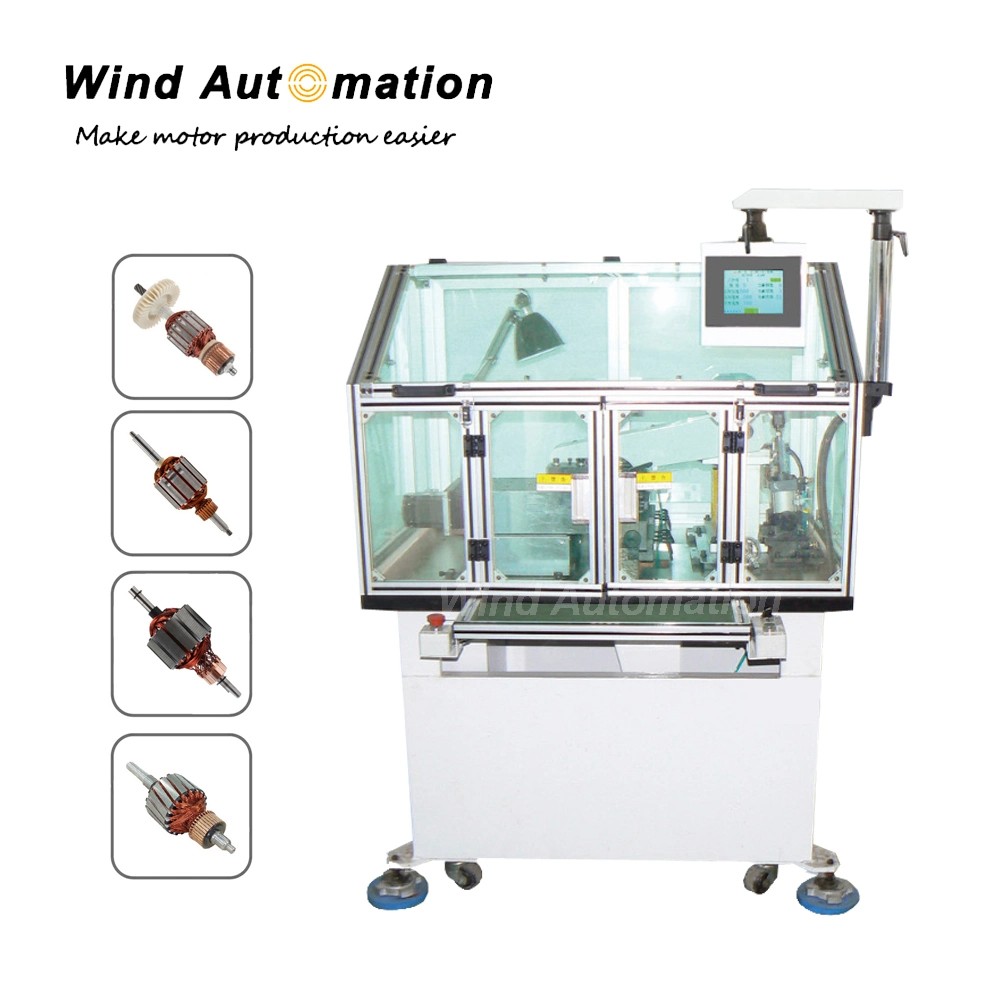

High Precise Commutator Turning Machine
This machine is designed for armature with outer diameter within 20 to 80mm and commutator outer diameter within 4.3 to 60mm
(1) Feature
V type tool holder for turning
PLC control, servo drive
Strong applicability and wide application
Manual loading and unloading
Cutting parameter programmable on touch screen
Quick and easy readjustment for other types of armatures
(2) Specifications
| Roundness: | <=0.003mm |
| Surface roughness: | <=Ra0.40 |
| Rotor outer diameter: | Ф20-Ф80mm |
| Rotor shaft length: | 32-250mm |
| Rotor shaft diameter: | Ф2-Ф18mm |
| Commutator outer diameter: | Ф4.3-Ф60mm |
| Armature OD | Ф20-Ф90mm |
| Turning capability: | rough turning Max0.20mm diameter |
| Speed amplitude modulation: | 0-60Hz |
| Feeding unit: | 1μm-0.5mm arbitrary |
| Cutting length: | Max50mm |
| Feeding speed: | Stepless adjustable |
| Control mode: | stepping, automatic |
| Operation method: | Touch screen operation |
| Air source pressure: | 5-7kg/cm² |
| Turning times: | 1-4 Any setting |
| Fixture: | Diamond V-shaped Frame |
| Total power: | 2Kw |
| Power source: | AC220V 50/60Hz |
(3) Application
Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.
