Product Description

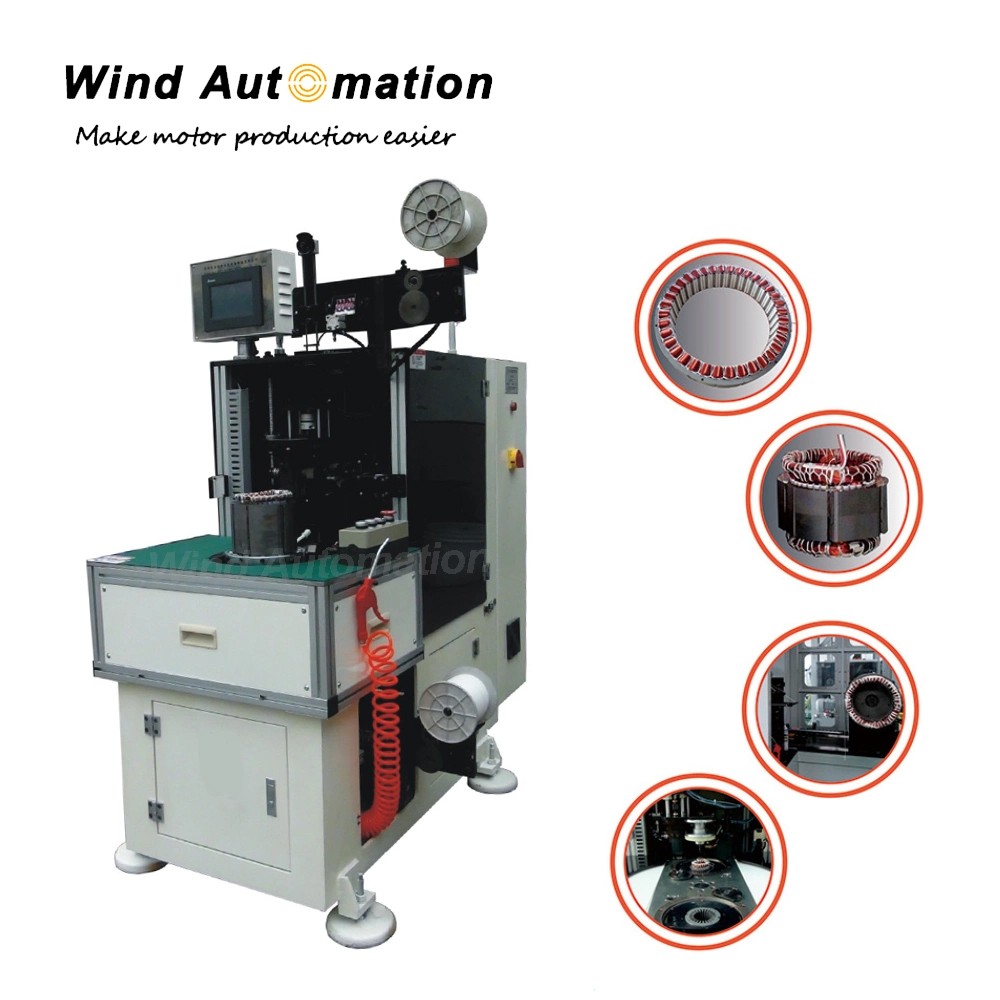

Economic Type Stator Coil Lacing Machine for Compression Motor

This lacing machine is double side lacing machine, therefore, it can lace two sides of the stator coils at the same time. The lacing is done by needle one slot by one. Needle transposition and indexing are controlled by servo motors.


(1) Specification

(2) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.

(3) Feature
Double side lacing
High quality level of the lacing process
Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
The entire working cycle is fully automatic excluding manual loading and unloading
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
Different lacing modes available, slot-by-slot lacing, slot-skipping lacing or fancy lacing
