Stator-Slot-Paper-Forming-and-Cutting-Machine

Product Description

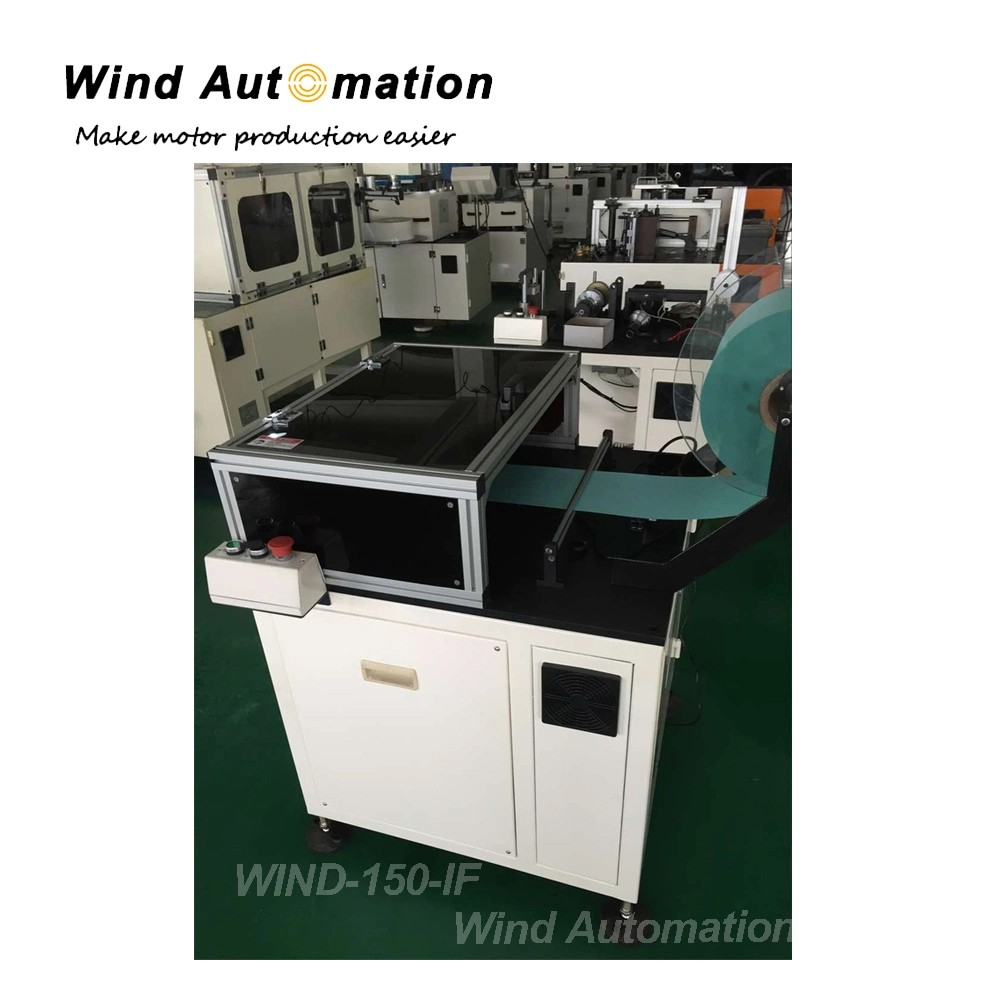

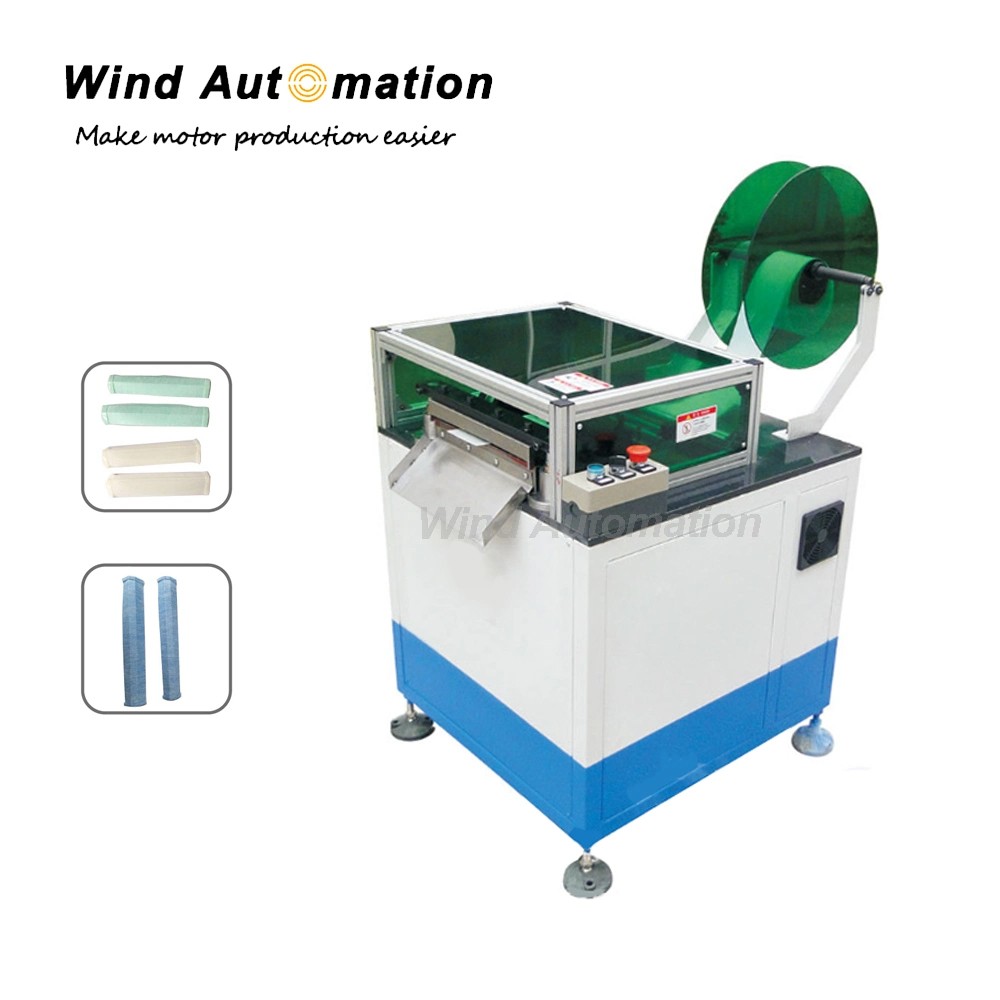

Stator Slot Paper Forming and Cutting Machine

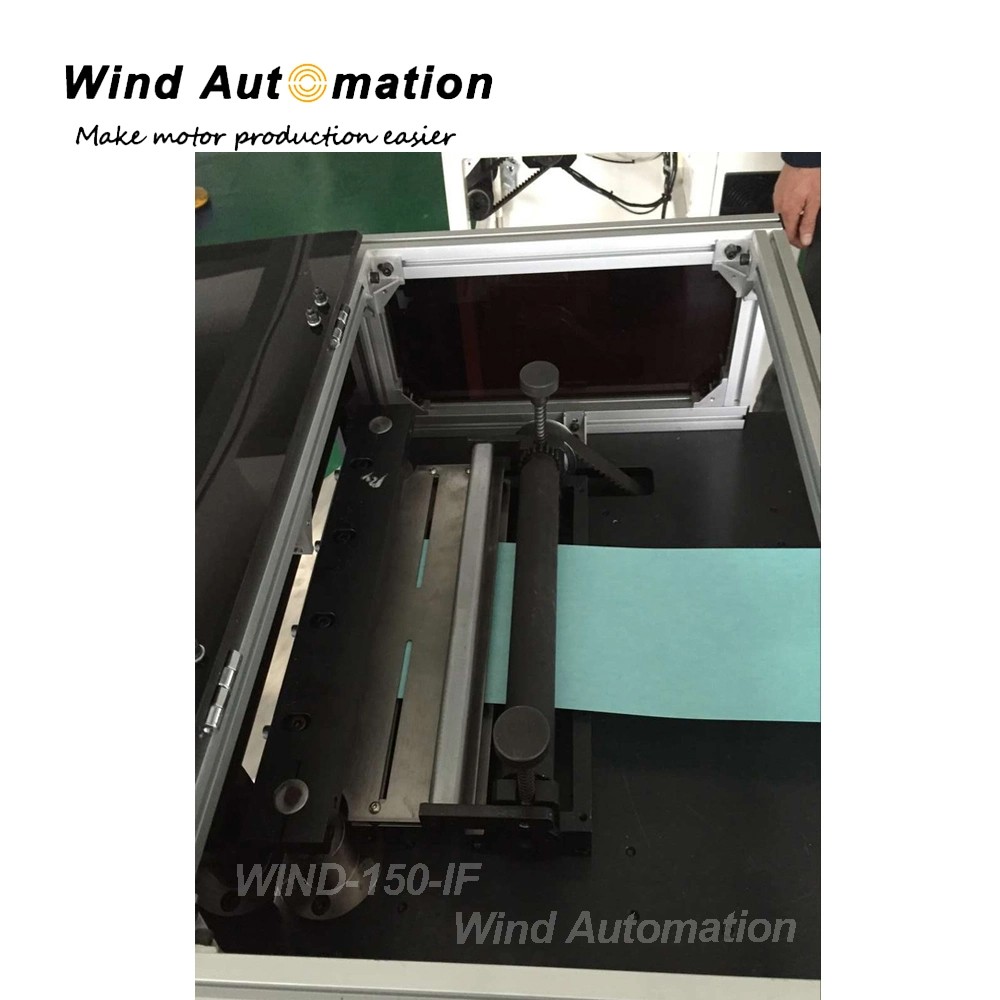

This machine is used to form and cut insulation paper for stator slot inserting. slot liner completed in one operation

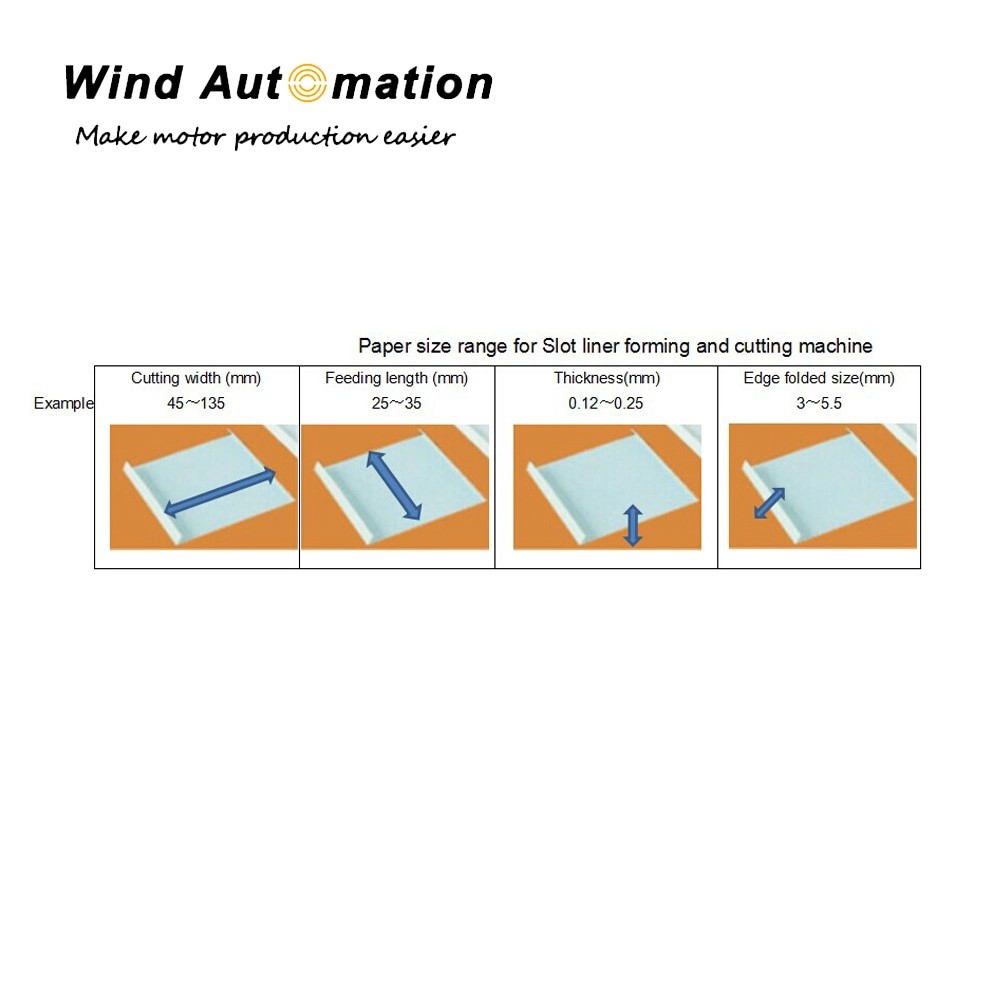

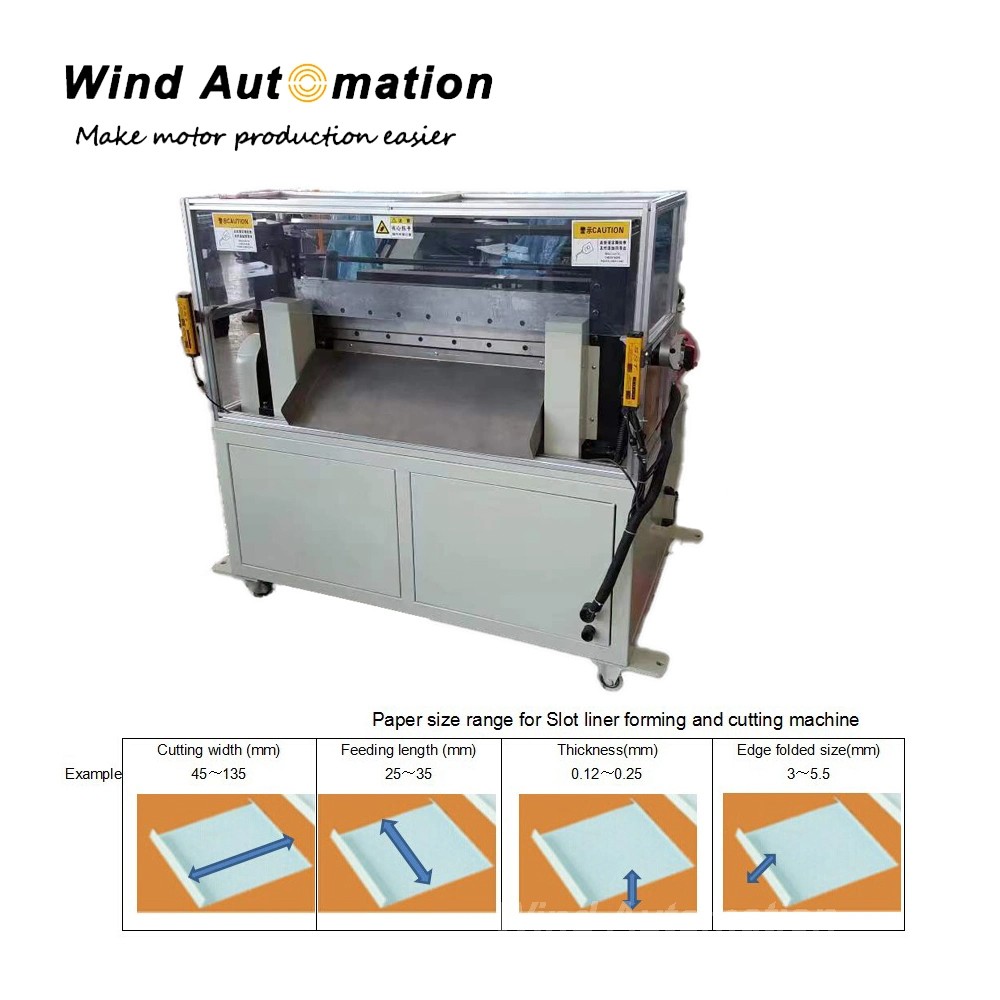

The feeding length is related to slot size total area length,cutting width is usually stator stack length+ edge folded length *4 , for a motor frame size below 132, the edge folded usually is around 3.5mm.For example, if stack length is 80mm, the cutting width is around 80+14 = 94mm.

(1) Specification

(2) Feature
Simple and easy to operate
Wide applied for bending and cutting different slot cell size no need tooling change
No regular maintenance needed, only polish or replace cutter after 2 year to 5 years

(3) Application
This machine is suitable for a low volume but a high mix of production or manual production motor manufacturer.
