Product Description

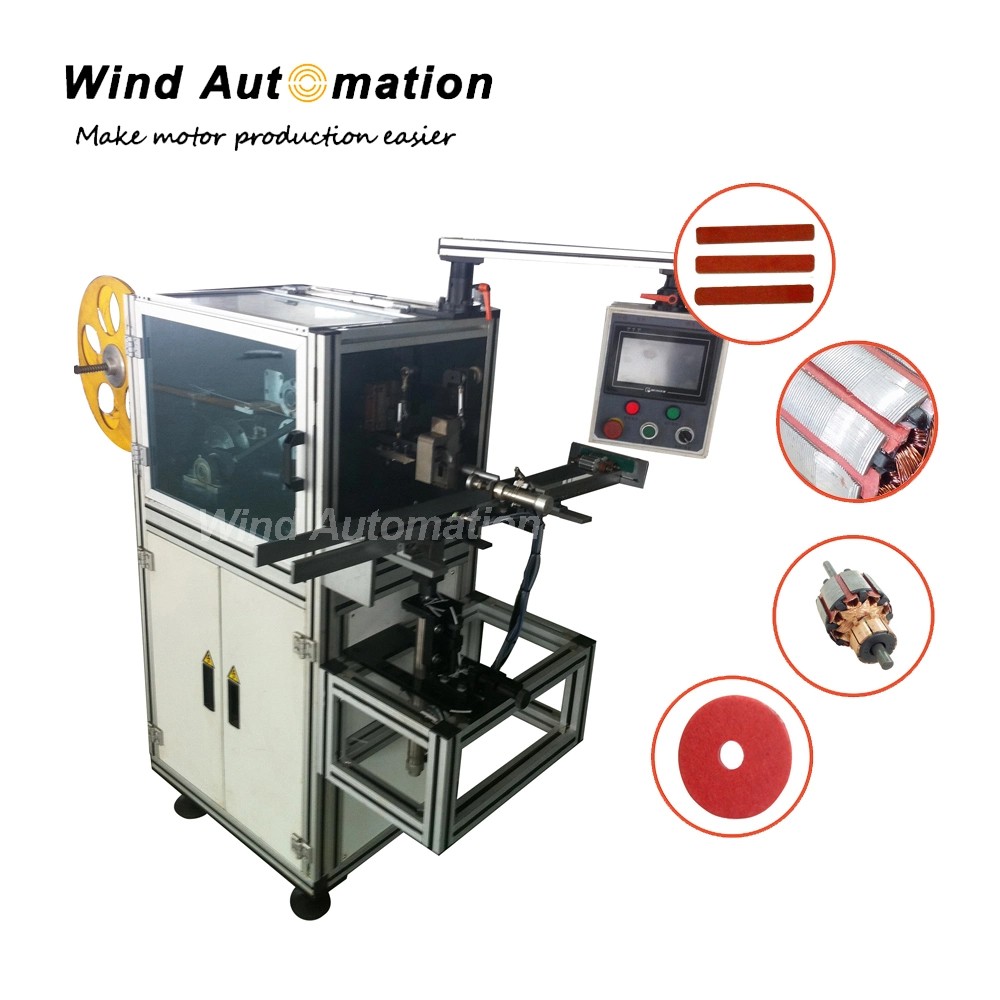

Washing Machine Motor Armature Paper Inserter

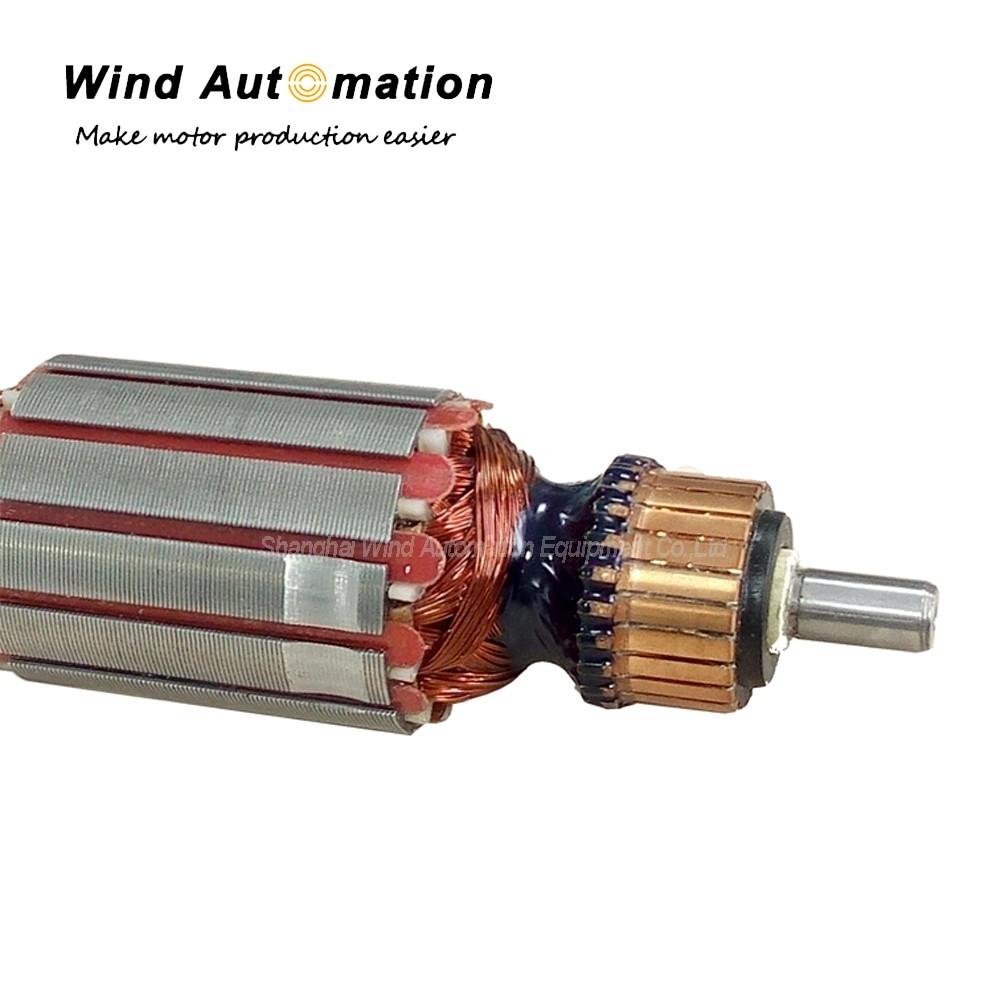

This wedge inserter can form, cut and insert the wedge into armature's slot after winding process to do slot insluation treatment.

(1)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement

(2)Specification

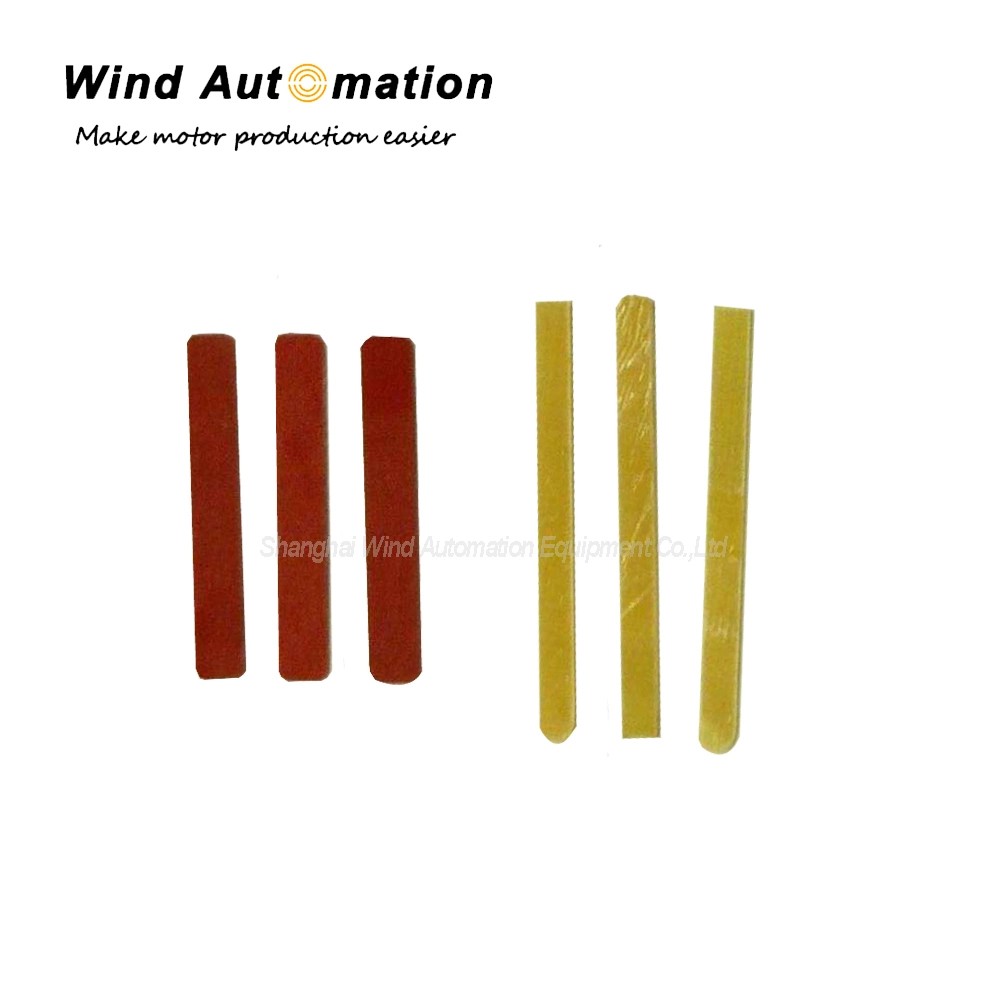

Wedge shape: Flat, U or R shape
Thickness of wedge: 0.2 mm ~ 2.0 mm
Efficiency: 0.5sec - 0.8sec/per slot, loading-Clamp Feeding-unloading (total 8~10sec /cycle for12 slots armature)
Armature O. D: 20-55mm
Length of lamination: Max 60mm
Shaft length: 32~250mm
Shaft O. D: 6~20mm
Slot number: 8-24 slots
Commutator O. D: 16~50mm
Length of wedge: 15-60mm
Speed regulation range: 0~60Hz
Air source: Air pressure: 4~6kg/cm2
Machine power: 1.0KW
Tooling/fixture: Fast changing integrity forming wheel structure
Voltage: AC220V± 10%, 50/60Hz
Weight: About 400Kg
Dimension: 910 x 880 x 1300mm3

(3)Maintenance
1) In order to make sure the accuracy and duration, inject lubricating oil to all the moving parts every 12-15 days so as to reduce the abrasion and increase the efficiency. The moving parts has been marked 1~8 in the below picture. Besides the moving parts, the indexing transferring parts, paper forming parts, other transferring parts and bearing place are also need to be injected lubricating oil.
2) Clean the pressing wheel and discharge tooling by air gun regularly. Clean them from back to front so that the insulation paper comes out easily during operation.
3) Add anti-rust oil to the machine regularly if the environment is humid.
4) The machine frame is made of alloy metal so do not knock it firmly.
5) Clean the surface of the machine regularly.
