Product Description

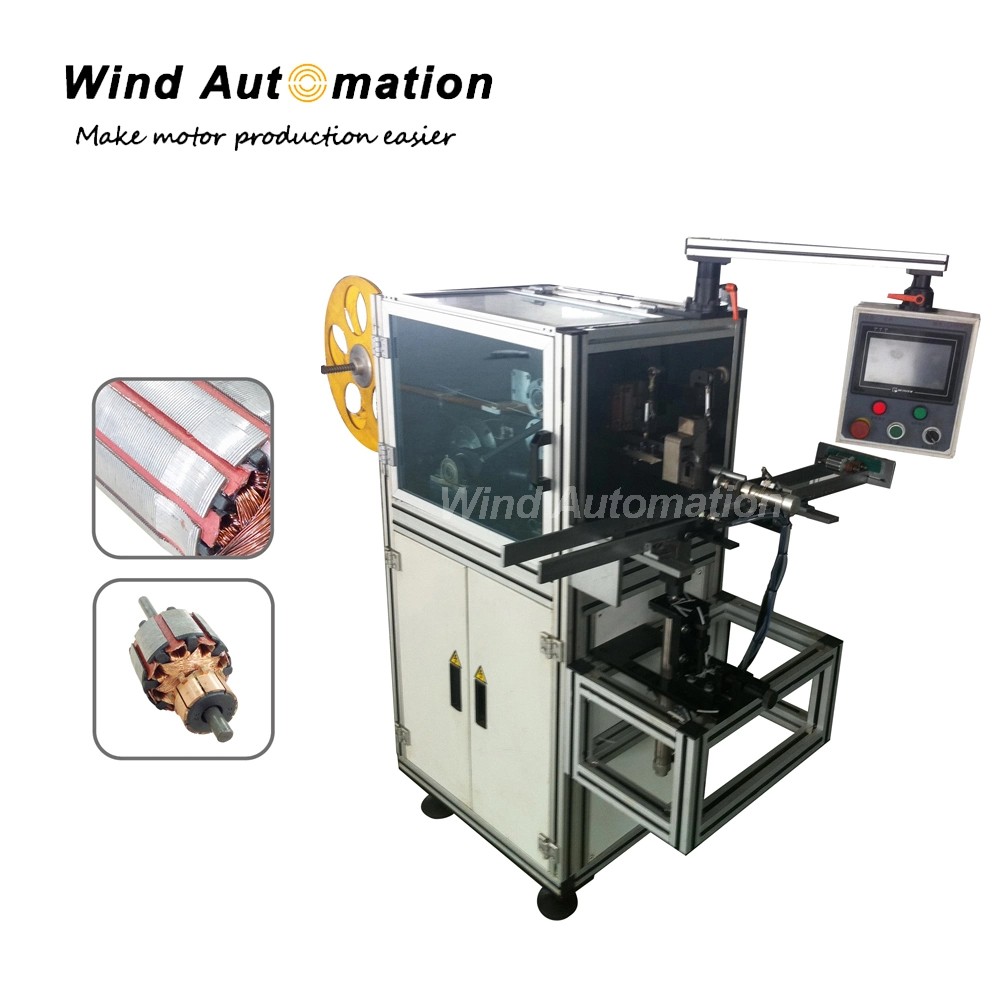

Armature Slot Wedge Inserter For Mixer Juicer Motor
This machine automatically form and insert wedge to form electrical insulator for coils and stack.
(1)Specification
| Outside Dimension | 910(L)X900(W)X1450(H)mm |
| Machine Weight | ~250Kg |
| Motor Power | 0.75Kw |
| Voltage | 220V AC |
| Pressure | 0.4-0.6Mp |

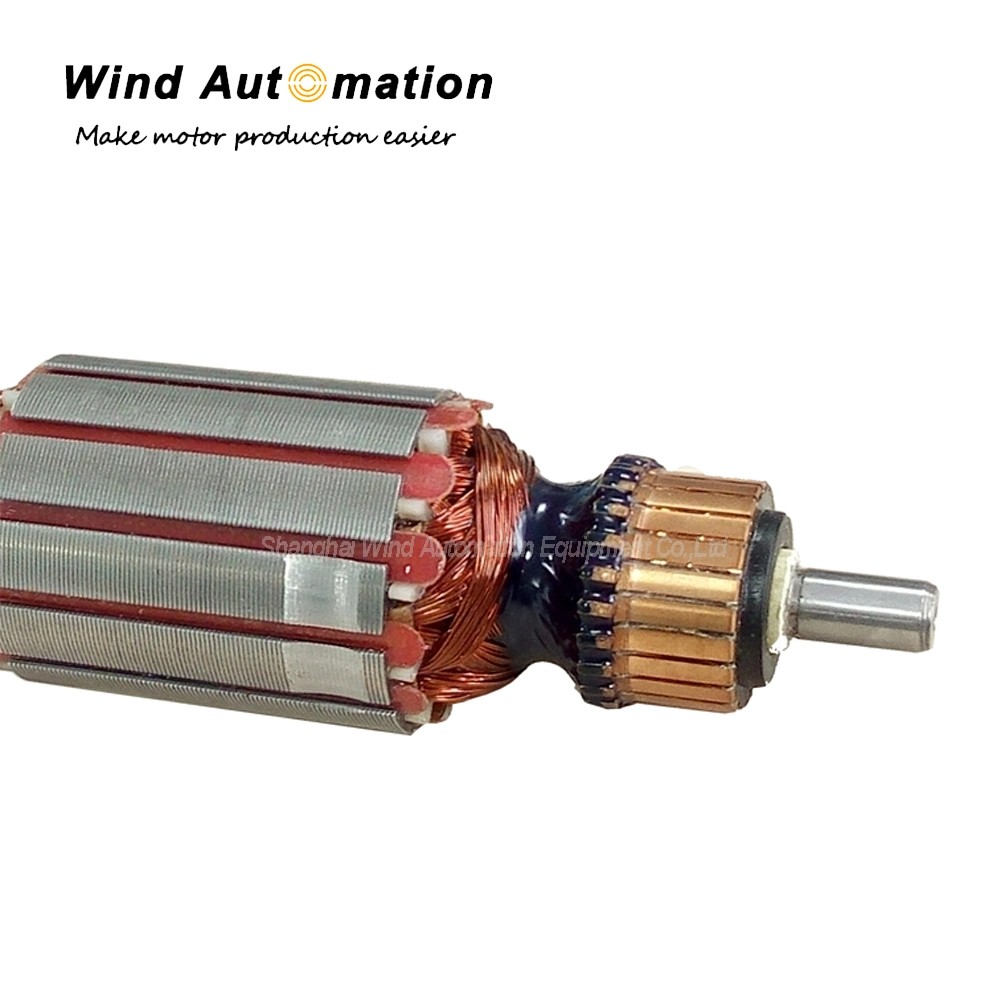

| Manufacturing product | Motor armature wedge |
| Armature O.D range | φ20-φ55 |

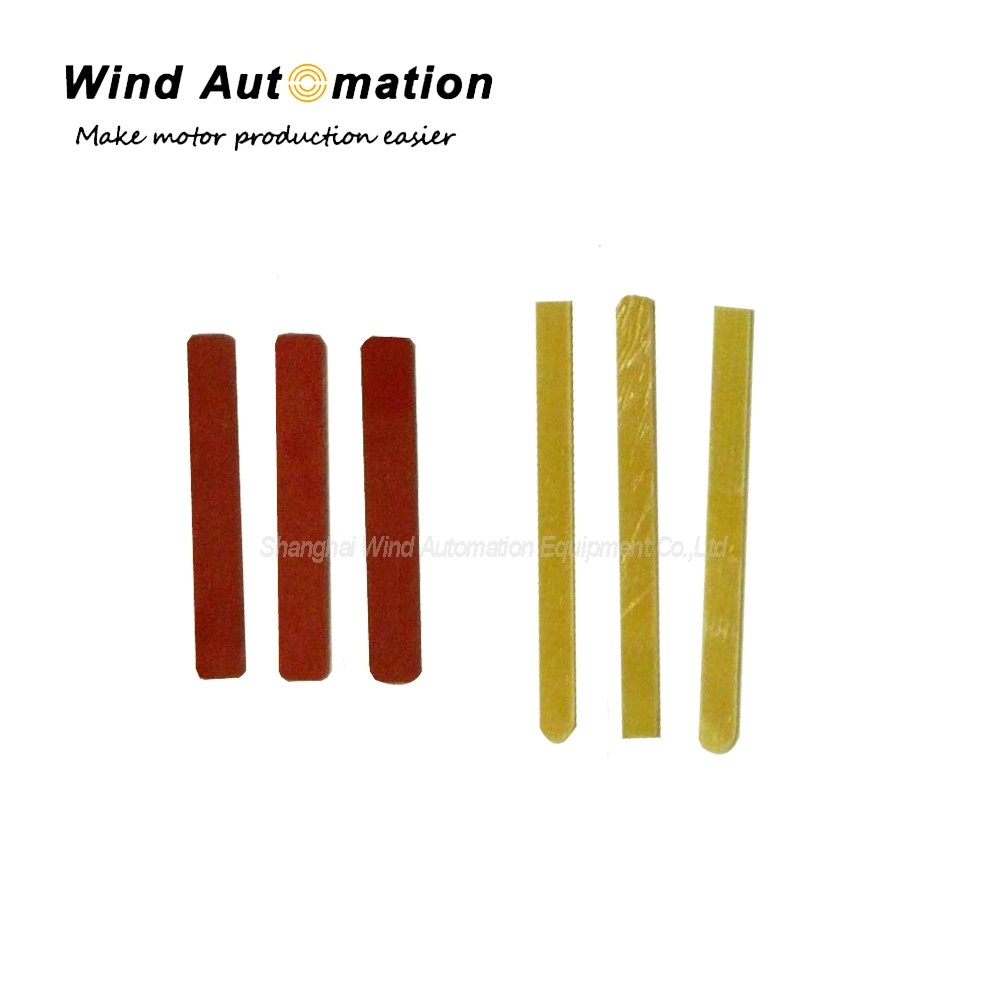

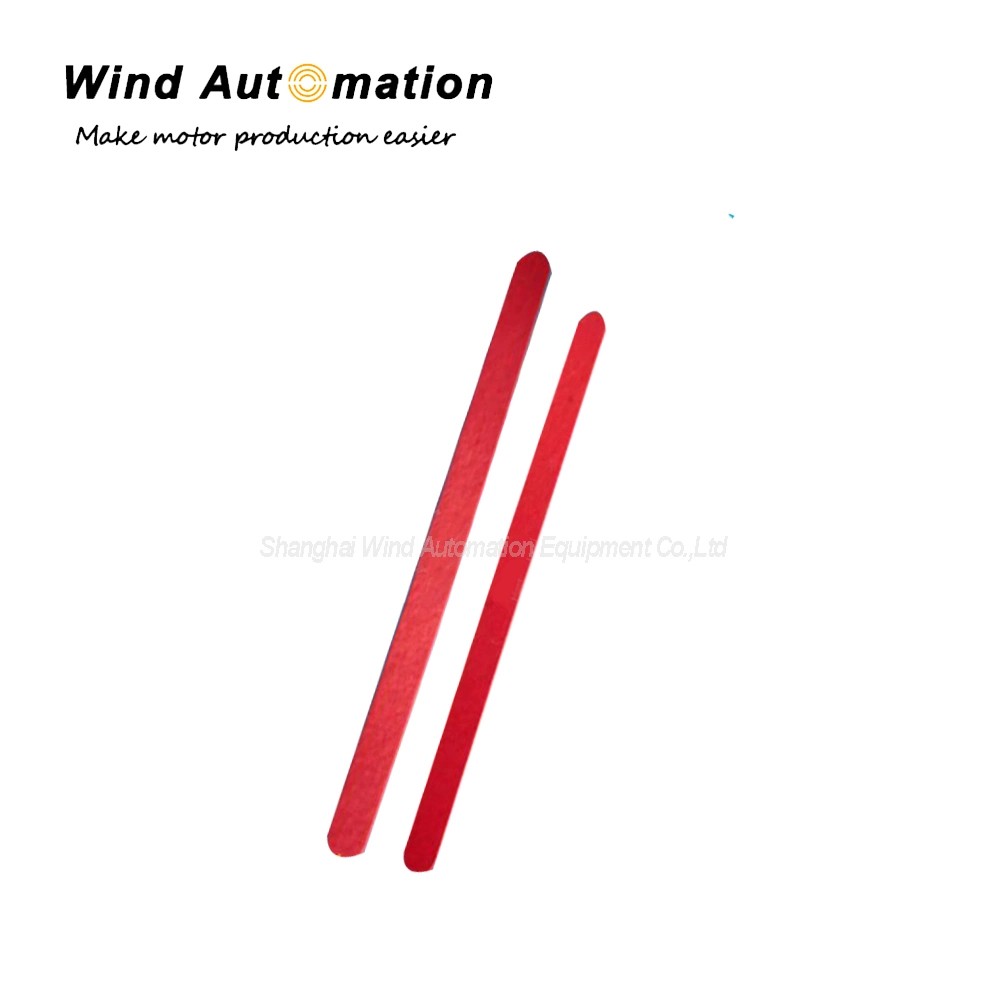

| Length of wedge | 15-60mm Adjustable |
| (MAX) Width of wedge | 8mm |
| Armature slot number | 8-24 slots |
| Work procedure | Feed-install fixture-plug in-discharge |
| Fixture | Pneumatic mechanical fixture |
| Feeding form | Automatic |
| Lubricant form | Grease lubrication |
(2)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement
(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool.
