Product Description

Single-phase Motor Armatur Dynamic Balancing Machine

Motor Armature Dynamic Balancing Machine Adding Weight

This machine is suitable for armature with OD range 0 to 260mm. It uses O shape belt to drive armature to rotate.

Feature

Weight adding balancing method
Unbalancing weight measurement before balancing
No skilled operator need
Adding Balancing mud manually
Fast and easy readjustment
Provide customized service
Wide application and strong applicability
V-shape support block


Application
The machine is
suitable for microelectronic rotors, power tool rotors, single-phase three-phase motor rotors, air-conditioning cross-flow fans, centrifuge drums, supercharger fan blades, etc.


Working Environment
a. Temperature: -5-45ºC, Humidity: <80%
b. Power: 220V 50HZ; Vary range for voltage<±10%
c. Without strong electromagnetic interference, vibration and with cleaning and ventilate place.


Specification

Workpiece weight range0.1-5kg
Max diameter of workpiece260mm
Support shaft neck range3-40mm
Driving methodO shape belt
Diameter range of belt driving position20-85mm
Motor speed2800rpm
Motor Power120W
Min residual unbalance value≤0.3g·mm/kg
URR≥90%

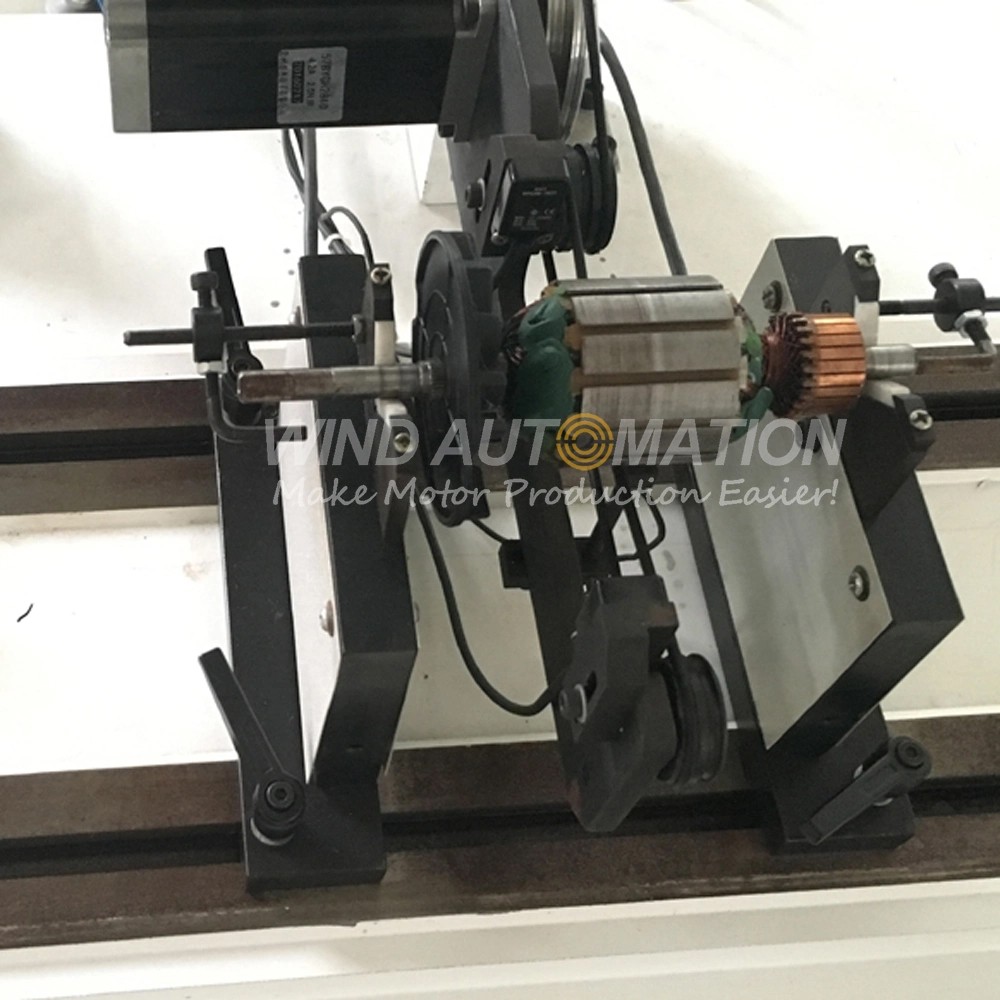

Motor Armature Dynamic Balancing Machine Adding Weight

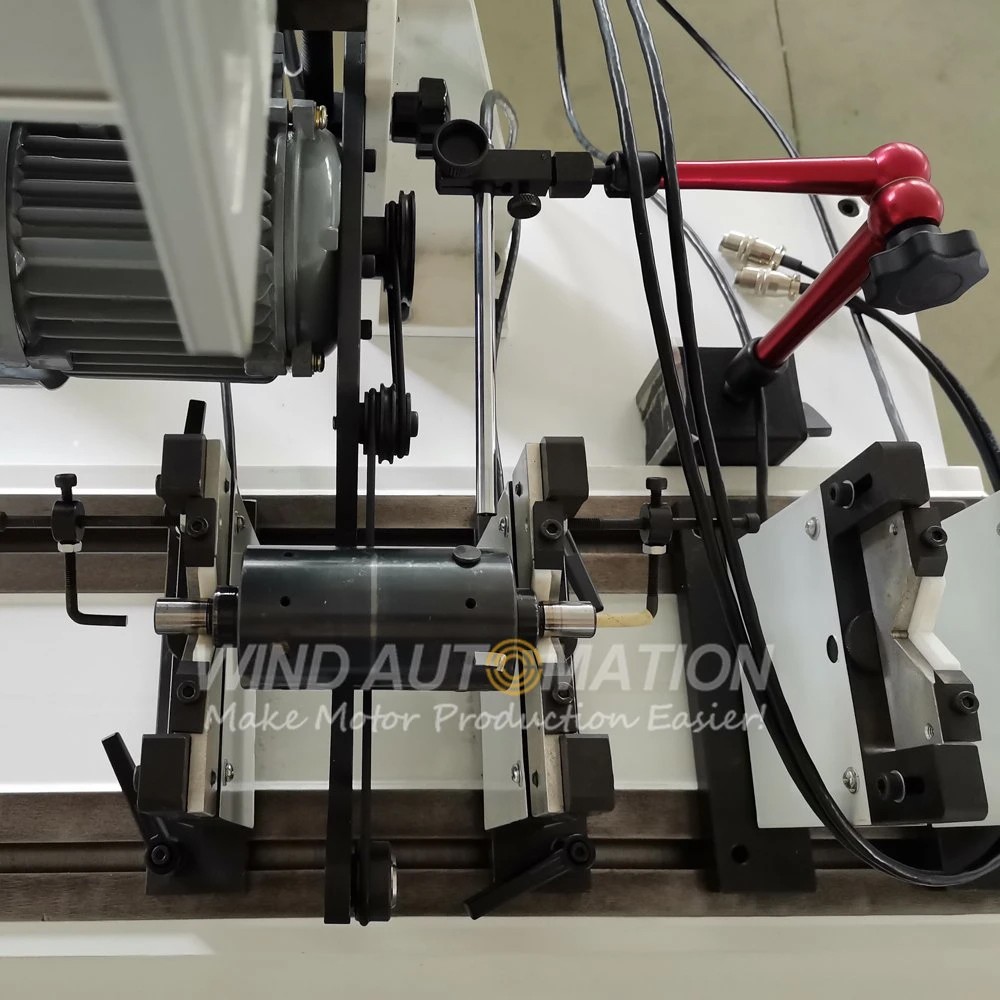

Motor Armature Dynamic Balancing Machine Adding Weight

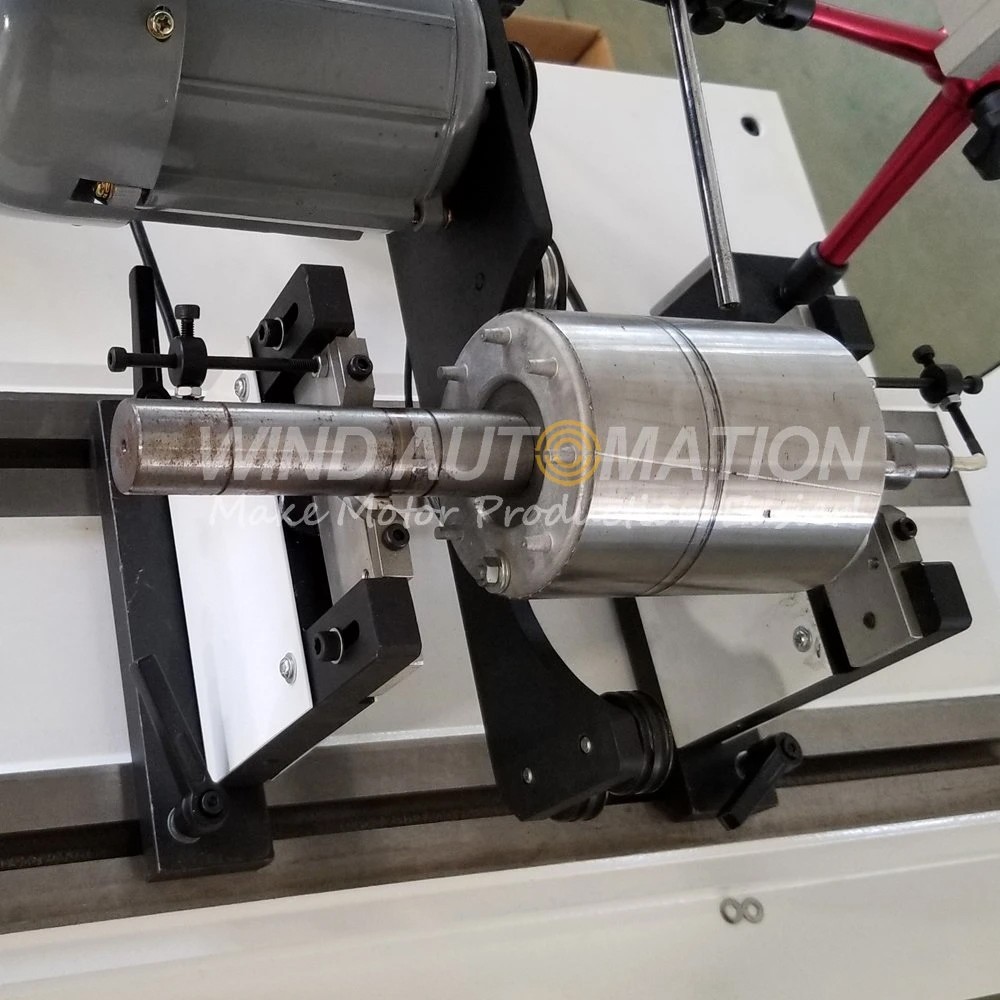

Motor Armature Dynamic Balancing Machine Adding Weight
