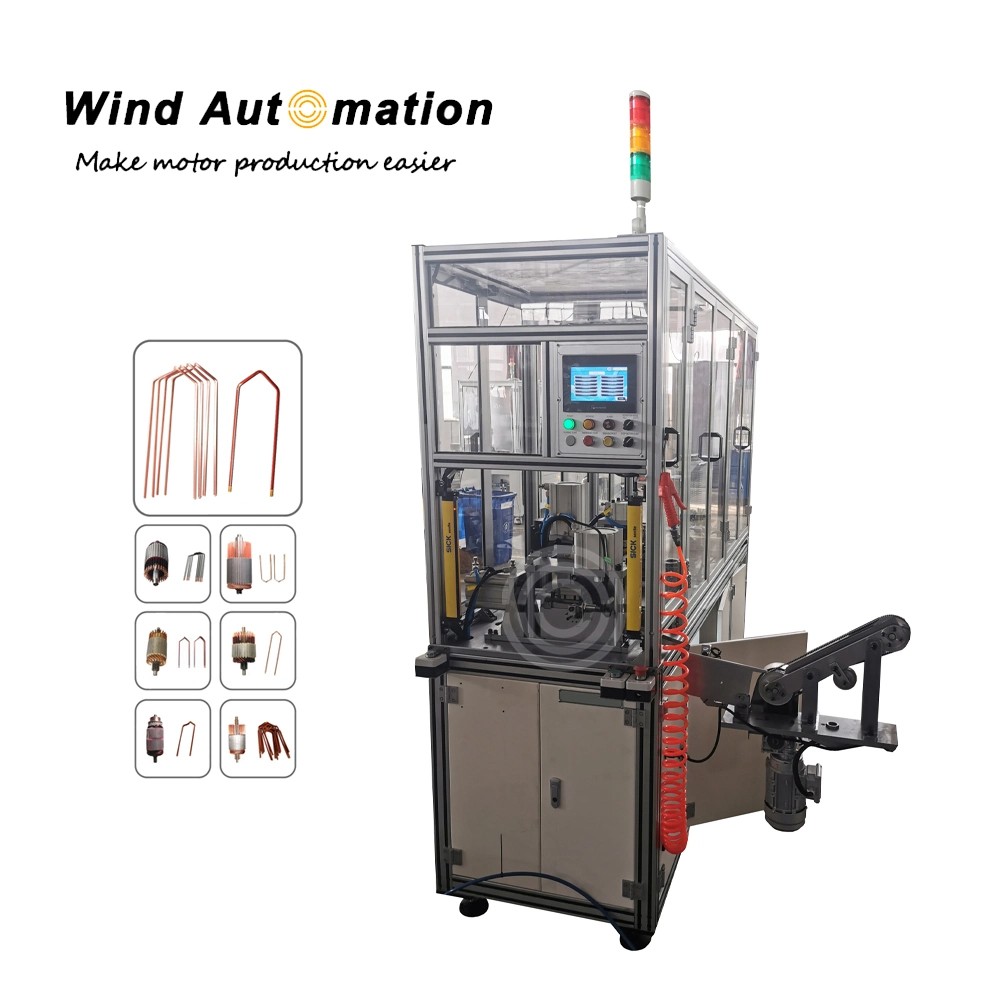

Hairpin Forming Machine Hairpin Winder
This hairpin forming can be used together with hairpin inserting machine to achieve mass production.
(1) Application

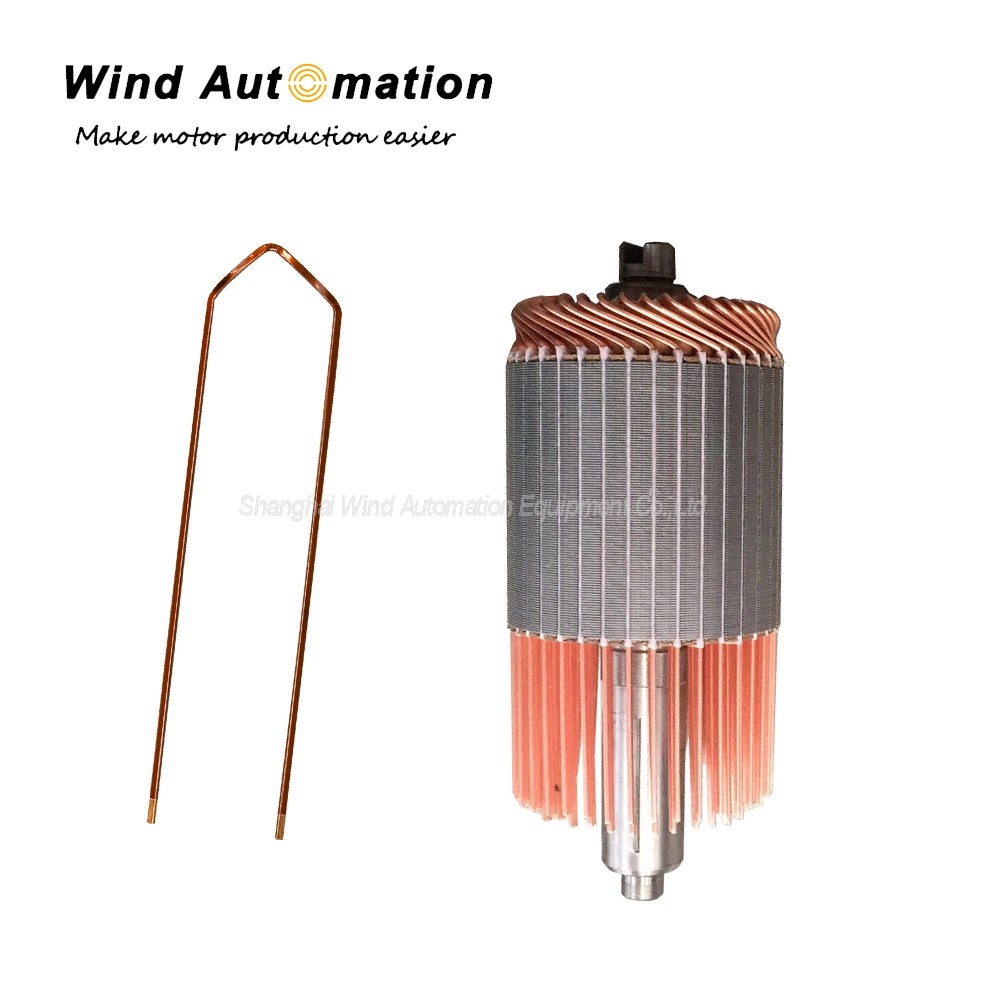

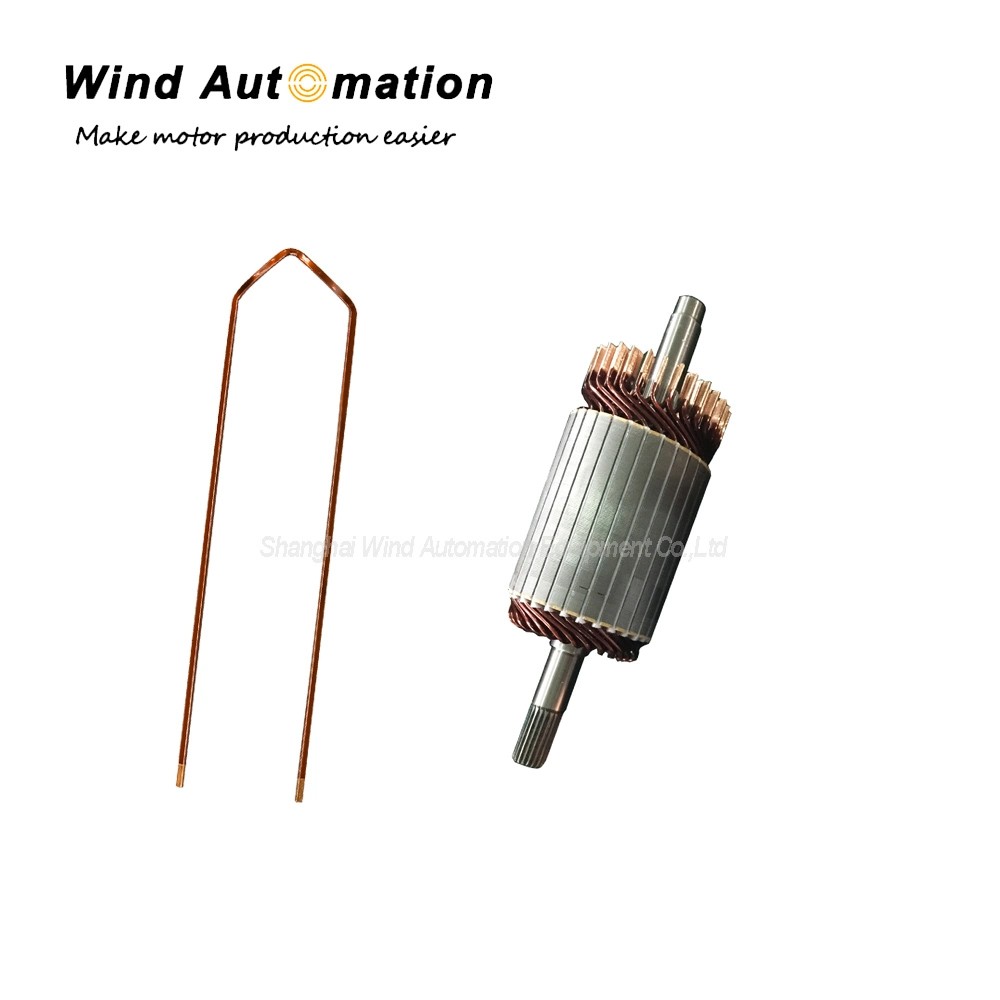

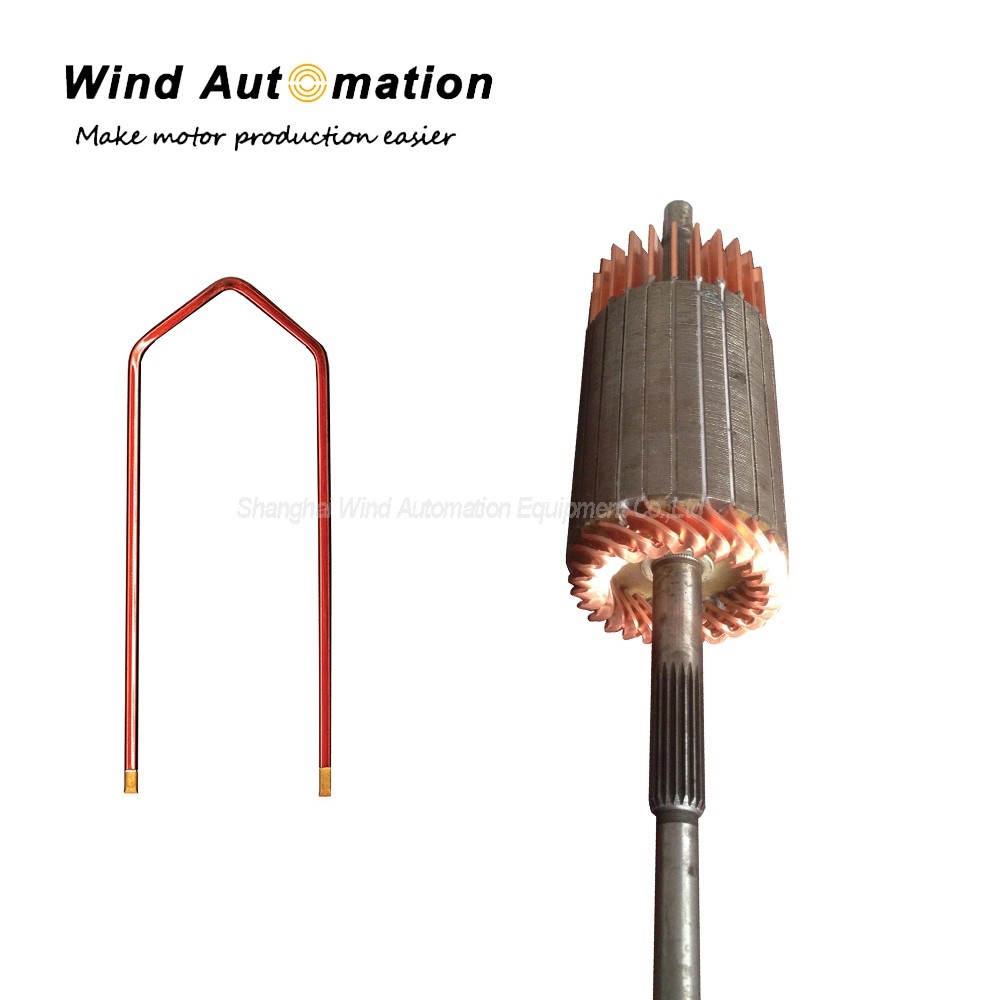

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.
(2)Specifications
| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | 0.5~0.7Mpa |
| Rated Capacity | 2KW |
| Varnish Removing Length | 0~50mm |
| Productivity | 2.3s/pc |
| Feeding length | 150~400mm |
(3) Features

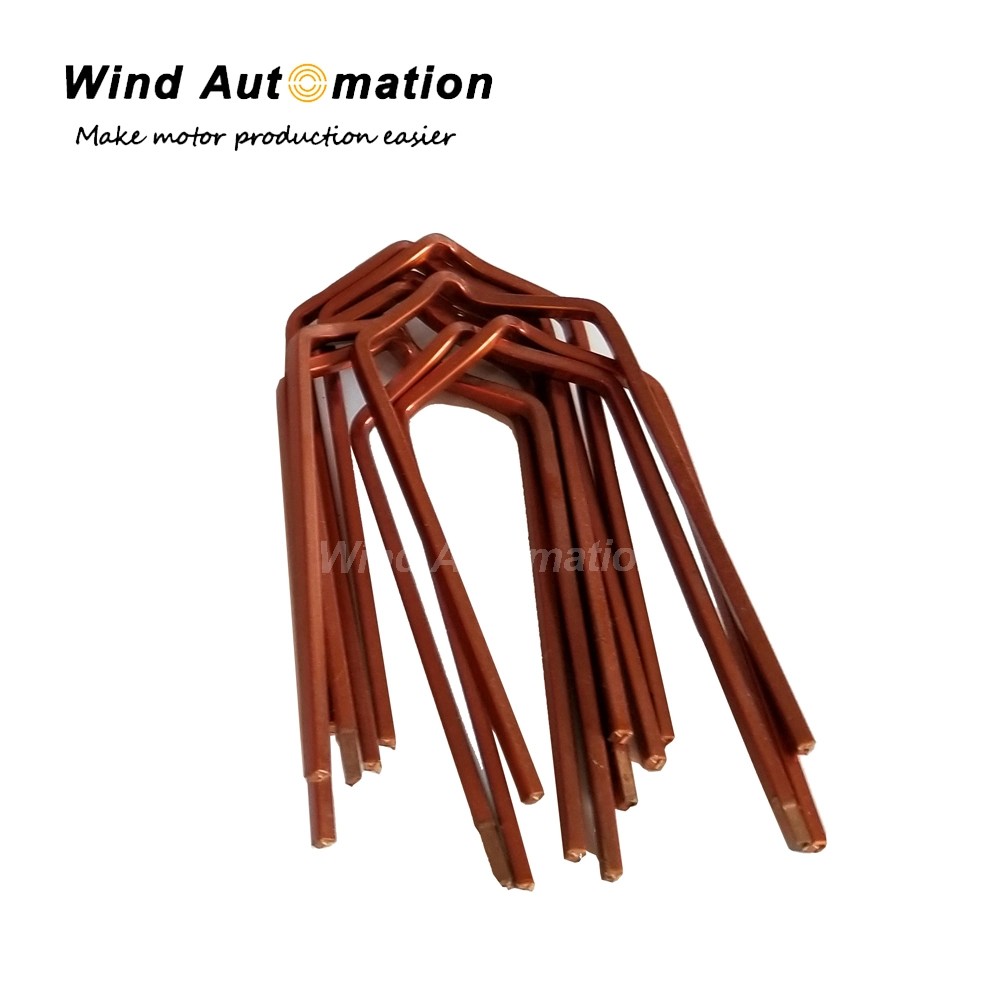

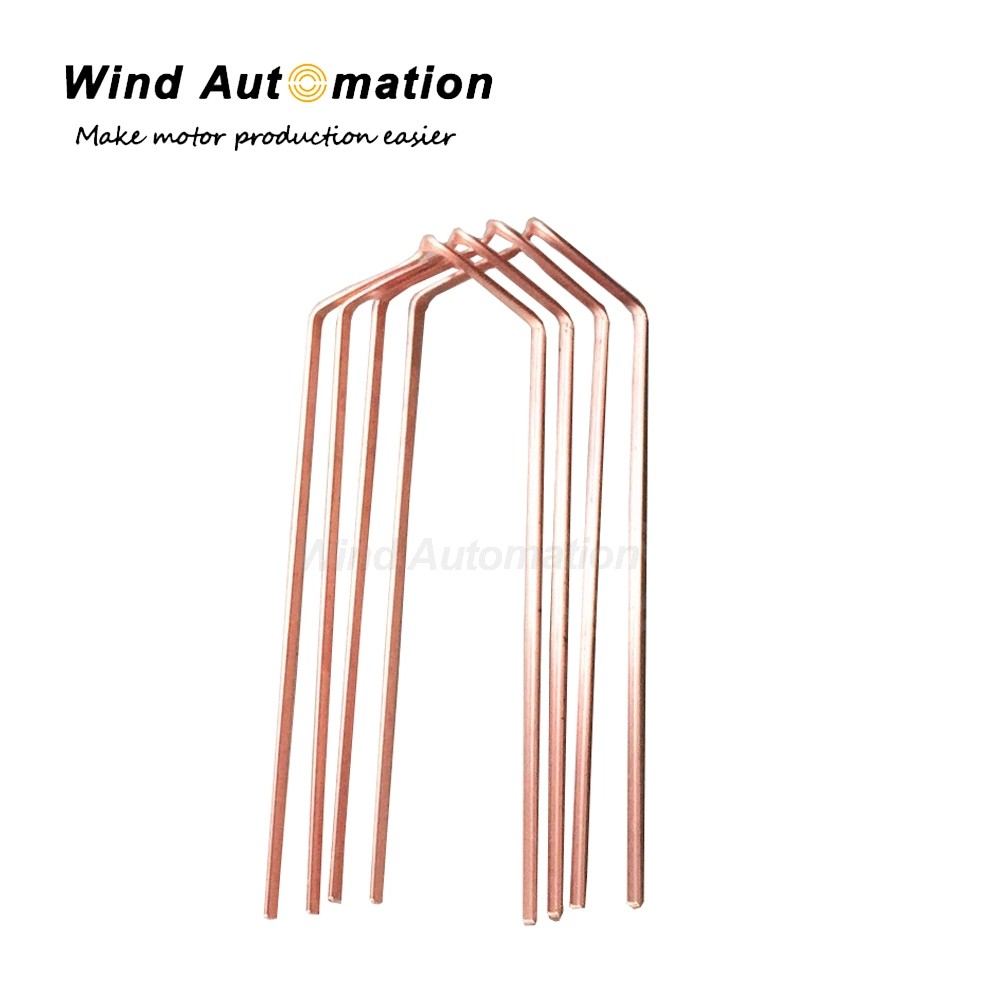

Suitable for flat wire
High efficiency, automation and productivity, 25pcs/min
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
