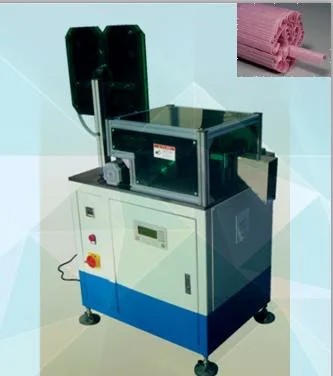

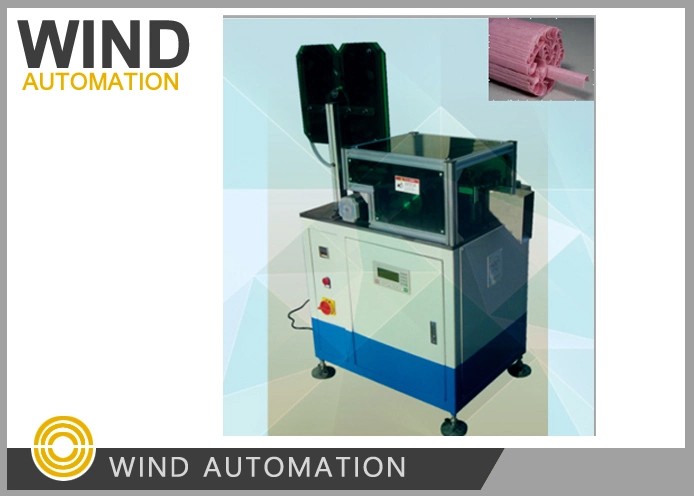

Cuffed Machine For Stator Slot Liner End Lamination Top Closure Wedge Forming
(1) Specification
| Cycle time | 20pcs/min (3s/pc when the length is 600mm) |
| Cutting thickness | 0.2~1.0mm |
| Feeding length | 10~9900mm |
| Total power | 0.5KW |
| Power supply | 220V 50/60HZ |
| Weight | 150KG |
| Dimension | 450x650x1100mm |
(2) Feature
Simple and easy to operate
No skilled operator needed
Wide application
No regular maintenance needed
(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc

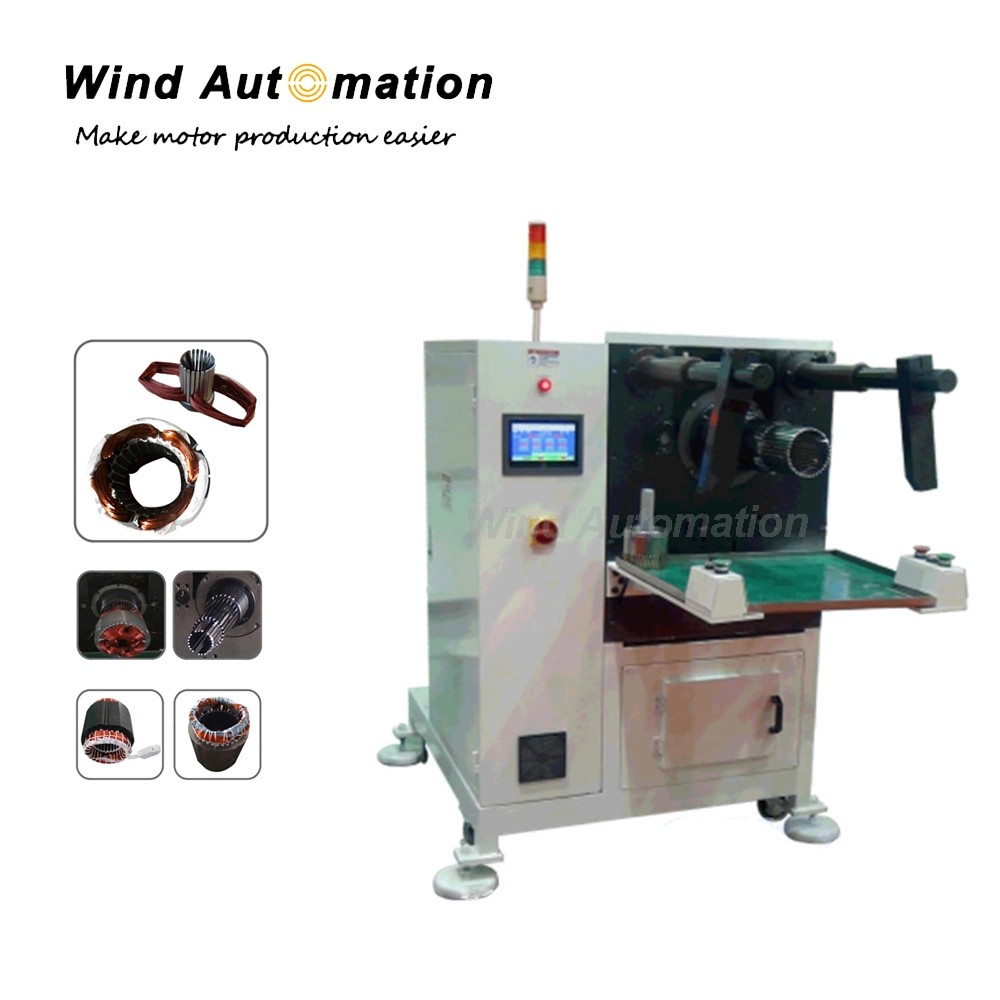

This machine has a horizontal type structure. Coil insertion, wedge cutting and feeding are controlled by servo motor, while wedge insertion by stepping motor. It is equipped with a heating device which enable better wedge forming process. Tooling change consumes less than 10min.
(1) Specification
| Stator ID | 60~150mm |
| Stator OD | Max 210mm |
| Stack length | Max 190mm |
| Tooling stroke | Max 90mm |
| Suitable wire material | Copper/Aluminium wire |
| Slot number | 24~48slots |
| Power supply | 380V 50/60HZ |
| Weight | 1050KG |
| Dimension | 2380x1180x1700mm |
(2) Application
This type of machine is suitable for large and medium-sized AC motor, induction motor stators.
(3) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
