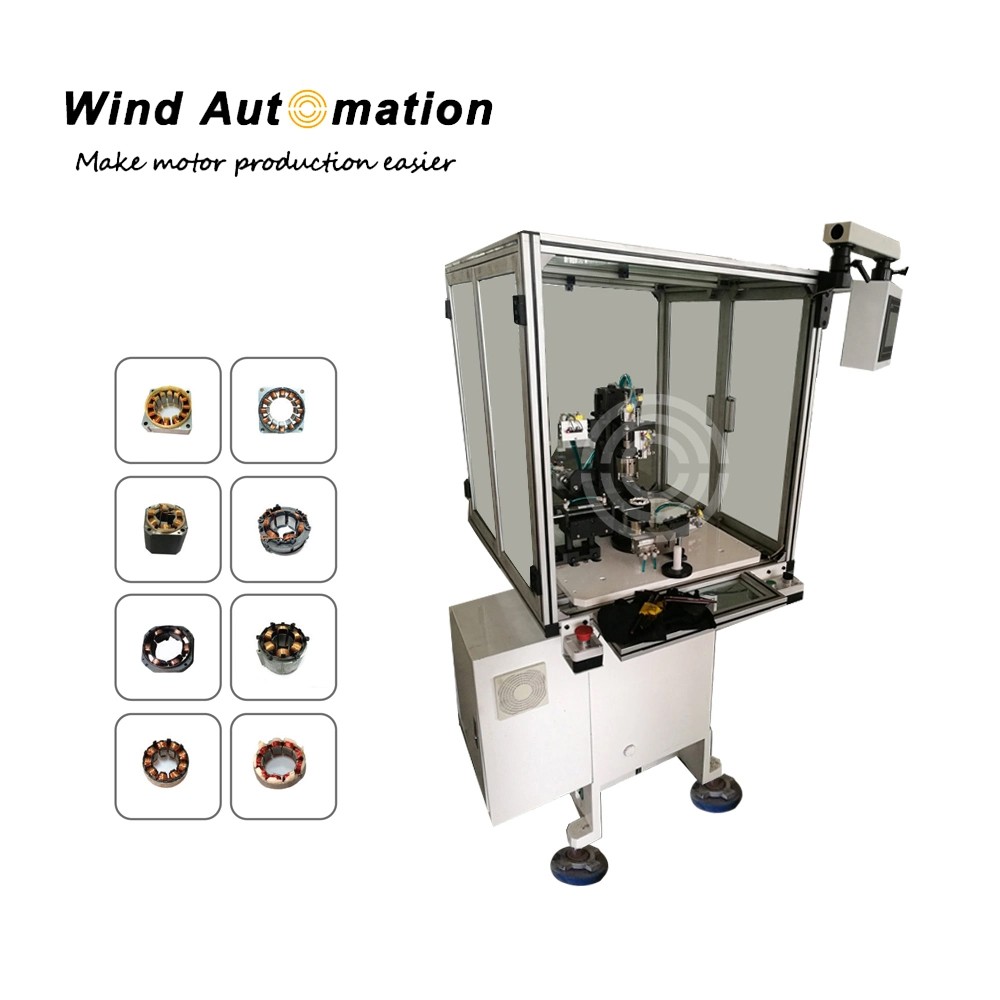

Single Working Station Muti-poles Stator Inslot Winding Machine
The winding track of this inslot winding machine is in a rectangle shape, which greatly improves machine productivity and winding quality.
(1)Specification
| Wire diameter | 0.08~1.0mm |
| Stator ID | Min 19mm |
| Stack length | 7~90mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1600x1100x1400mm |
(2)Application

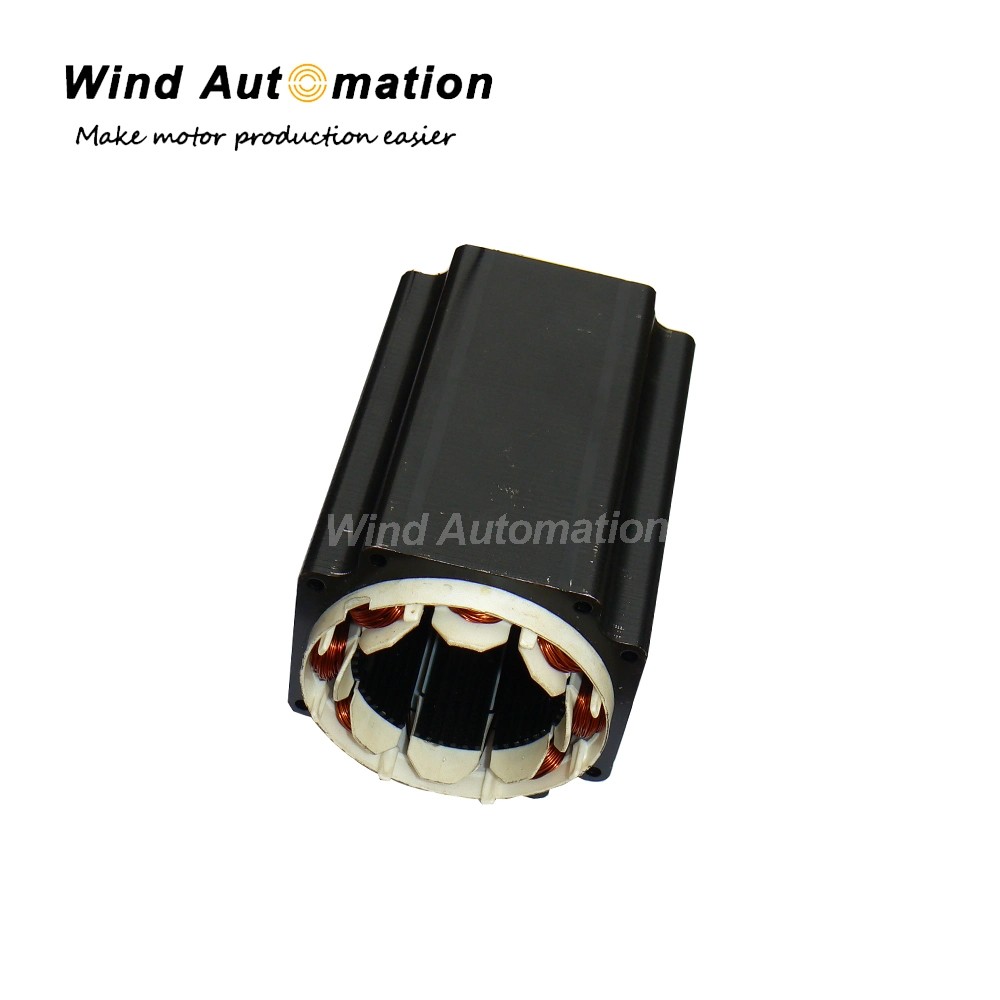

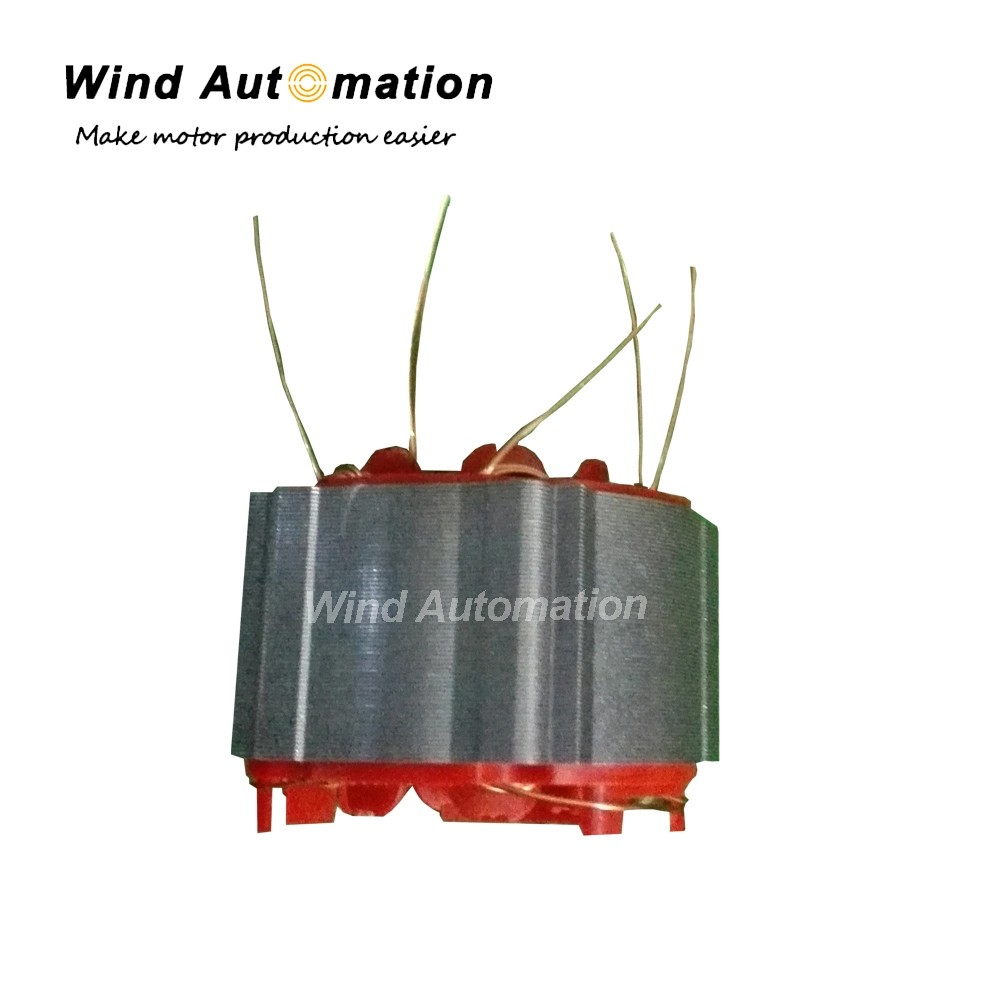

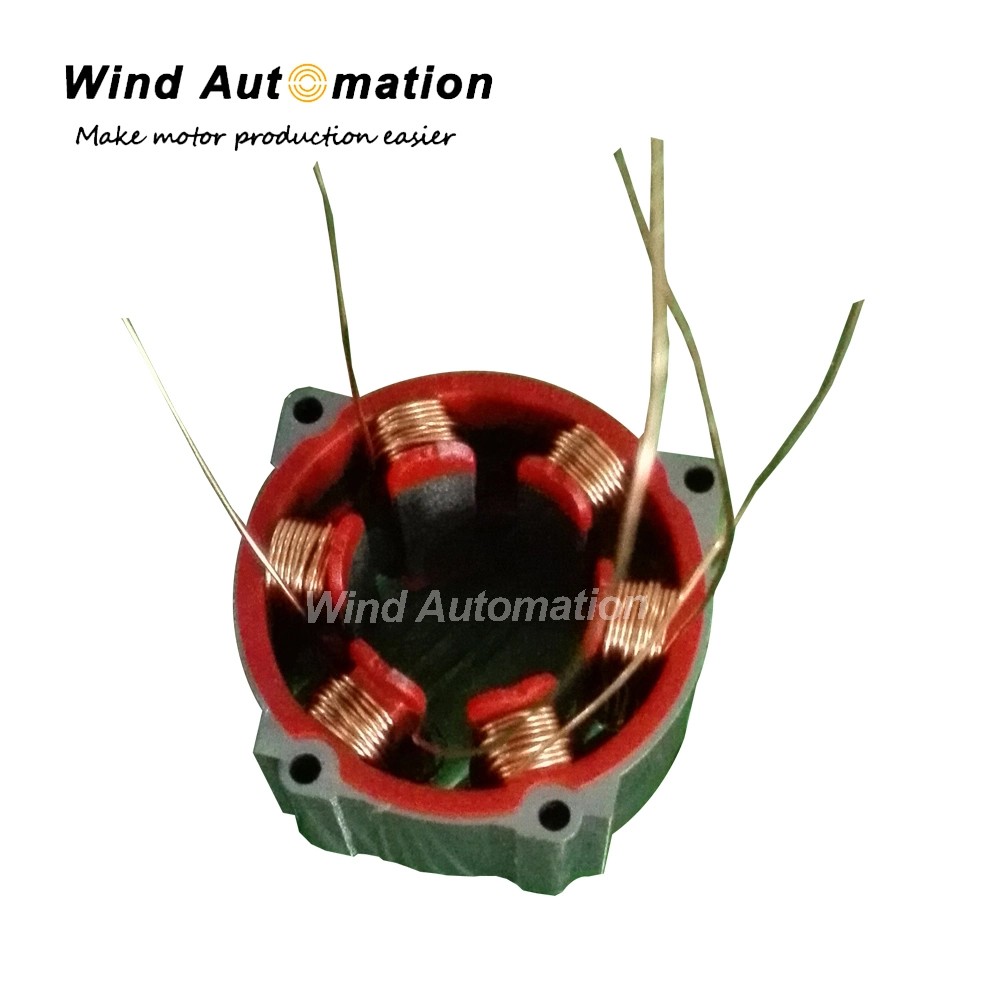

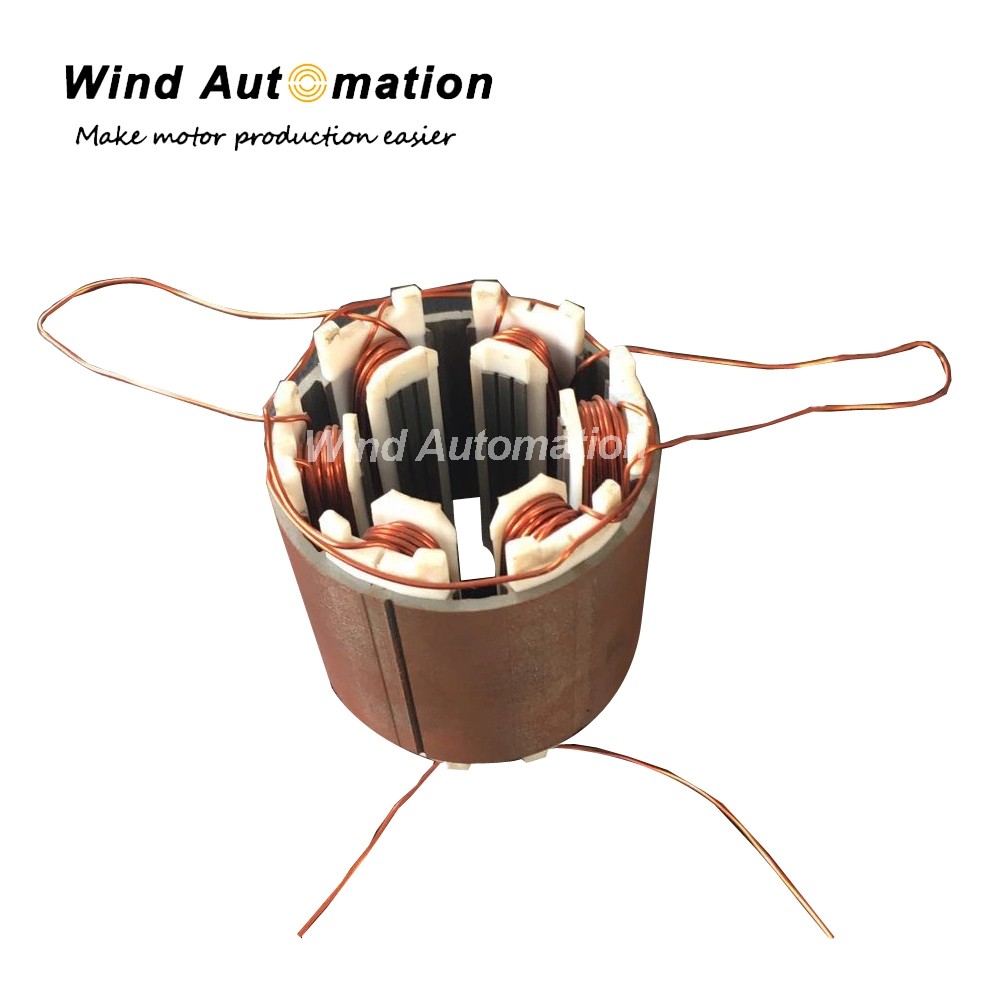

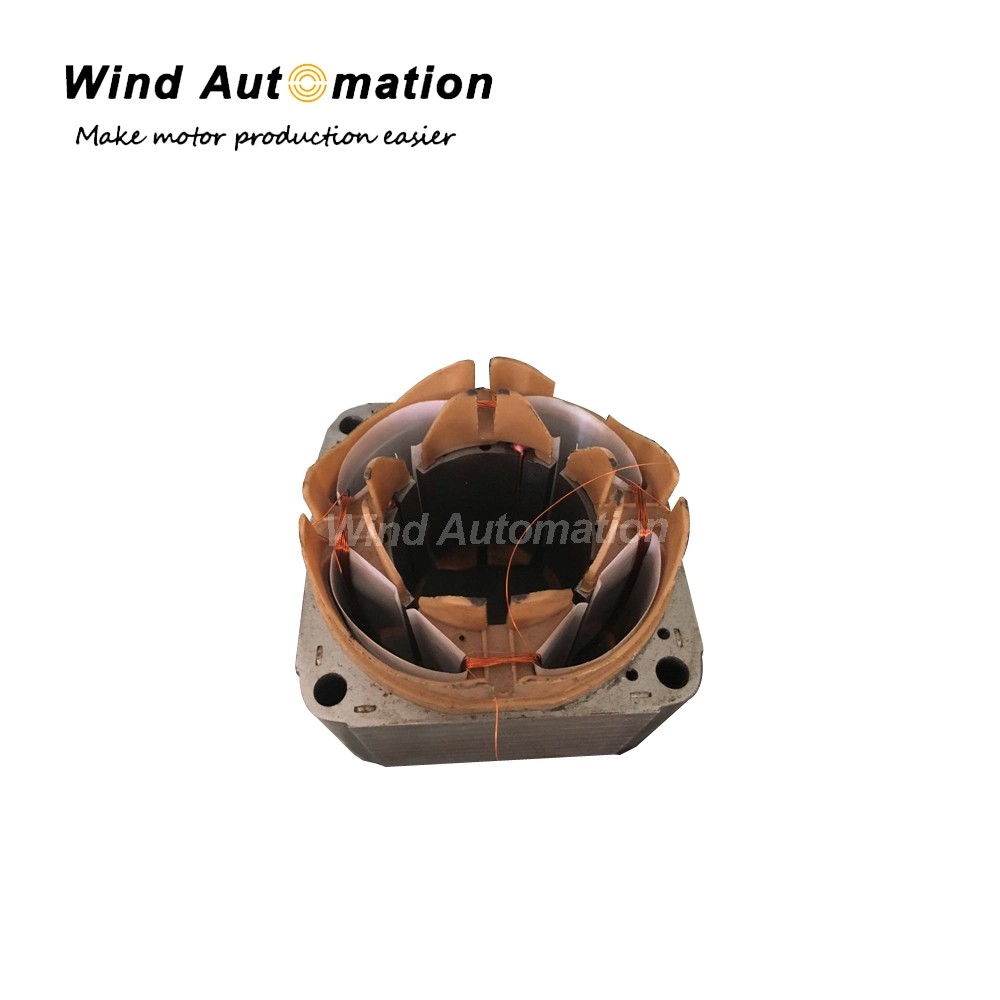

Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.
(3)Features
Rectangle winding track
Fully programmable operation
Can meet high winding requirements
Precision performance of needle winding
Quick change-over of tooling
Suitable for stators with narrow slot width but high slot filling rate
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
