Model NO.
WIND-CT-TH3B
Specification
Middle Size
Trademark
Wind Automation
Origin
China
HS Code
8479811000
Production Capacity
100 Sets/Year

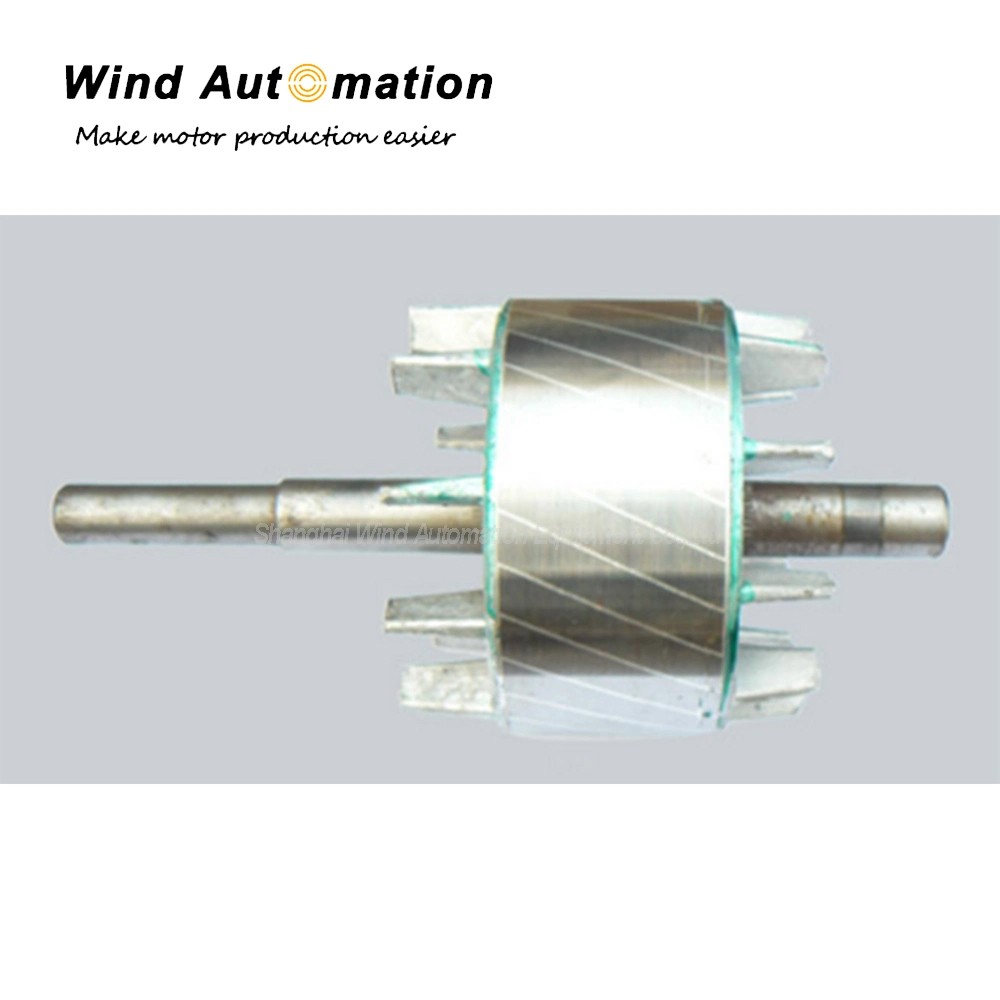

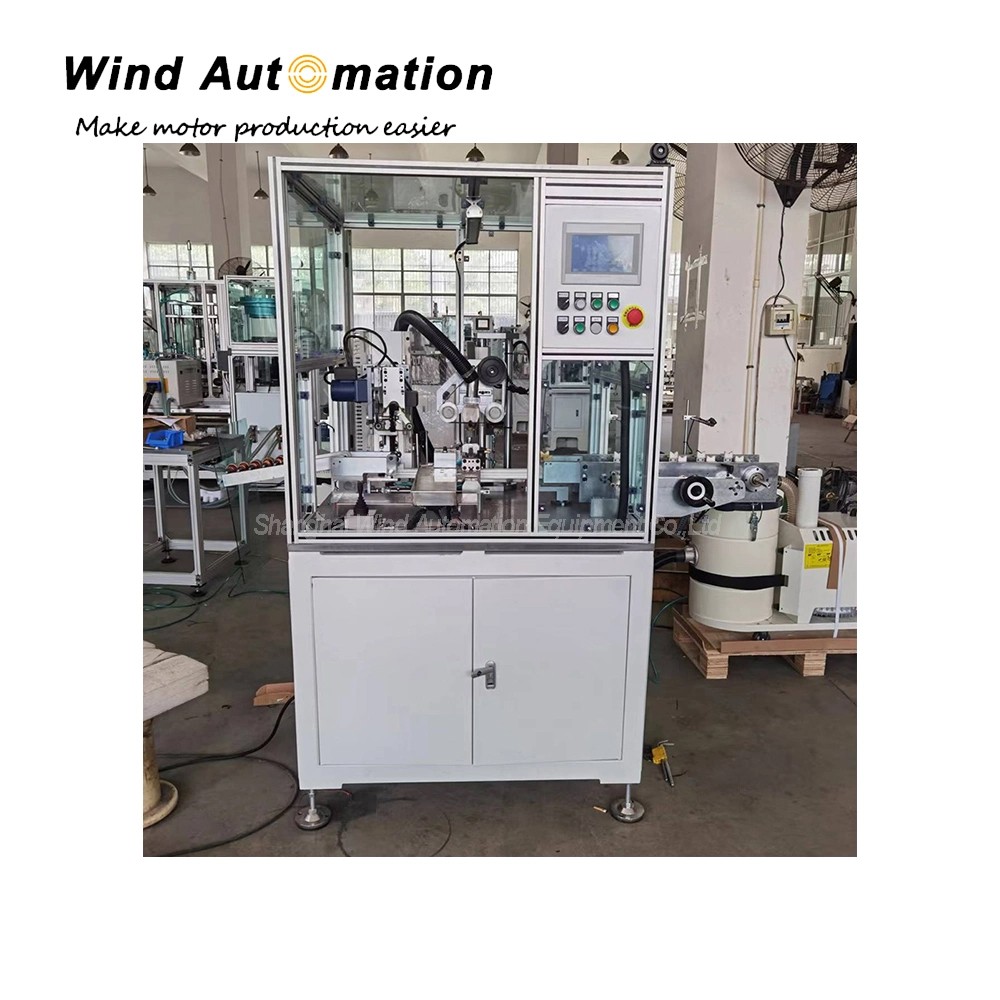

High Automation Type Rotor Commutator Turning Machine
The holding device of turning machine WIND-CT-TH3B for holding your Rotor OD have two side ball bearing device which prevent shaft from wear
(1) Specifications
| Rotor OD | 20~100mm |
| Spindle OD | 3~22mm |
| Commutator OD | 4.3~50mm |
| Shaft length | 32~250mm |
| Surface roughness | <=Ra0.40 |
| Roundness | <=0.003mm |
| Turning capability | rough turning Max0.20mm diameter |
| Speed amplitude modulation | 0-60Hz |
| Feeding unit | 1μm-0.5mm arbitrary |
| Cutting length | Max80mm |
| Feeding speed | Stepless adjustable |
| Control mode | Stepping, automatic |
| Operation method | Touch screen operation |
| Air source | 5-7kg/cm² |
| Turning times | 1-4 Any setting |
| Fixture | Diamond V-shaped Frame |
| Power | 2.5KW |
| Input Power Source | AC220V 50/60Hz |
| Weight | about 500Kg |
| Dimension | 1100×850×1800mm³ |
(2)Application
This machine is suitable for any type of commutator of starter rotors, automotive car motor.
(3) Features
Sophisticated technology, appealing design and excellent performance
Servo control the turning
High efficiency and strong reliability
With diamond turning tool
Quick and easy readjustment for other types of armatures
Precise control of the cutting process
Fully automatic turning cycle after loading of the armature
