Product Description

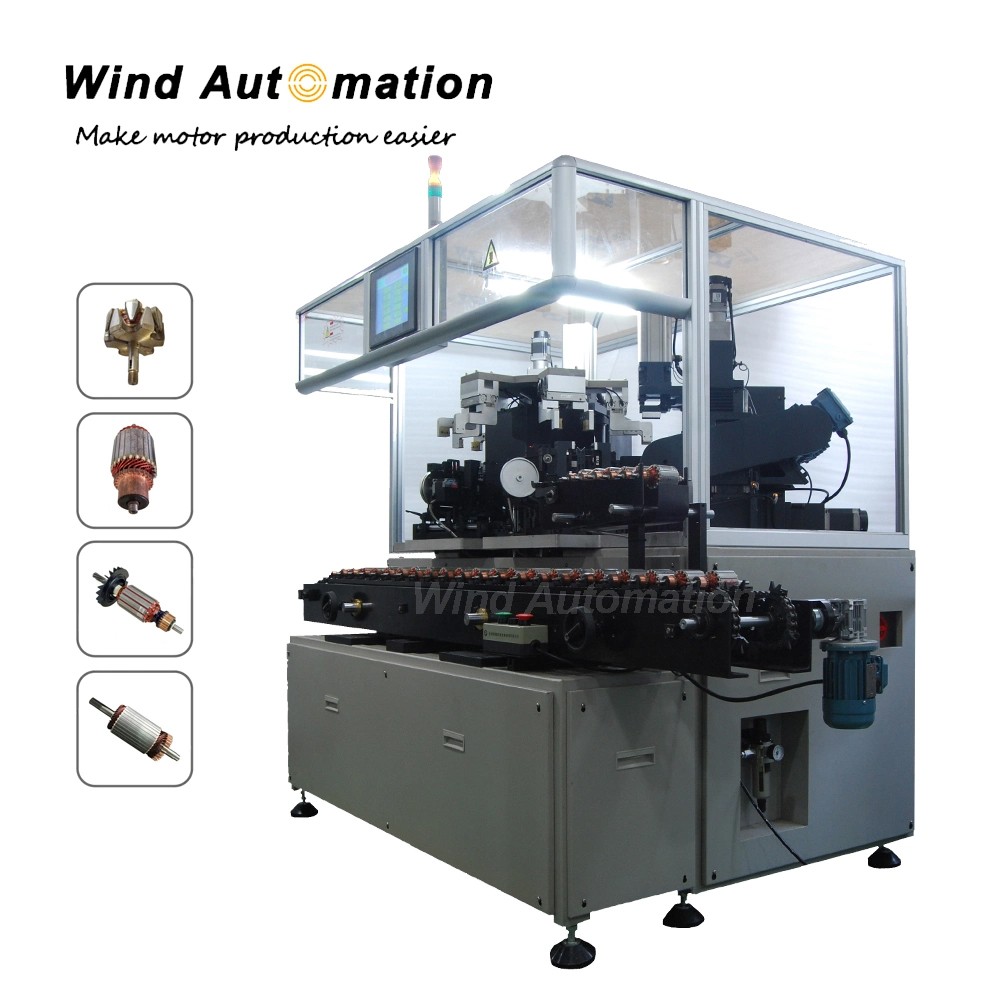

Universal Motor Rotor Balancing Machine With 5 Stations

Universal Motor Rotor Balancing Machine with 5 Stations

This type of machine is suitable for the majority of armatures. Once armatures are loaded manually into the feeding conveyor, which in turn automatically leads to the working position and then continues to the outgoing conveyor.

(1)Specification

Working station5
Armature OD40-60mm
Stack height15-60mm
Armature weight<1.6 KG
Cutting methodR-shape cutter
Balancing speed1000-2200rpm
Cycle time10-12s
Initial unbalanceAccording to armature radius and cutting depth
Air supply0.4~0.6Mpa
Power supplyAC380V
Dimension2000 x1700x1800 mm



(2)Application
The 5 stations fully automatic armature balancing machine is suitable for majority of armatures, like DC motor, universal motor used for home appliance, car and power tool motor armature.


(3)Feature
5 working stations, 1 for loading and unloading, 2 for balancing, 2 for testing
High efficiency, automation and productivity
High quality level of the balancing process
Gravity feeding conveyor
Conveyor for outgoing rotors
Twice testing guarantees balancing accuracy
Servo drive systems providing high positioning accuracy while cutting
Suitable for the majority of armatures
Compact design which allows easy and safe handling


(4)Operation process
Power on machine.
Put the armature on the conveyor, make sure the commutator side should touch the conveyor side.
Press Test&Process on touch screen.
Press RUN on the touch screen or START button.
Machine will automatically do balancing.
Unload armature.

Universal Motor Rotor Balancing Machine with 5 Stations
Universal Motor Rotor Balancing Machine with 5 Stations
Universal Motor Rotor Balancing Machine with 5 Stations
