Product Description

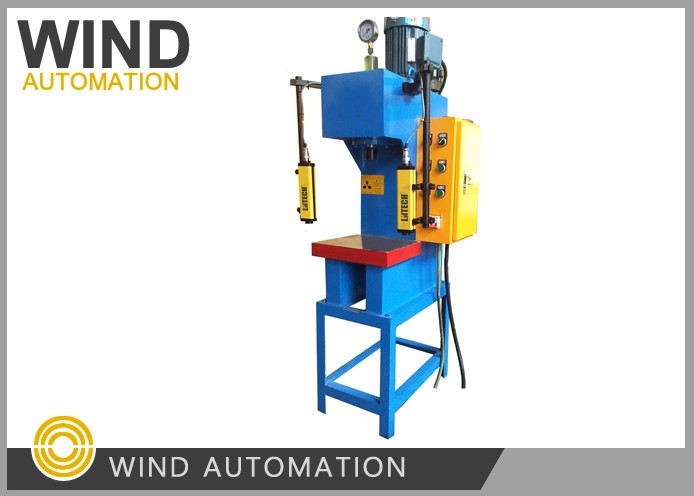

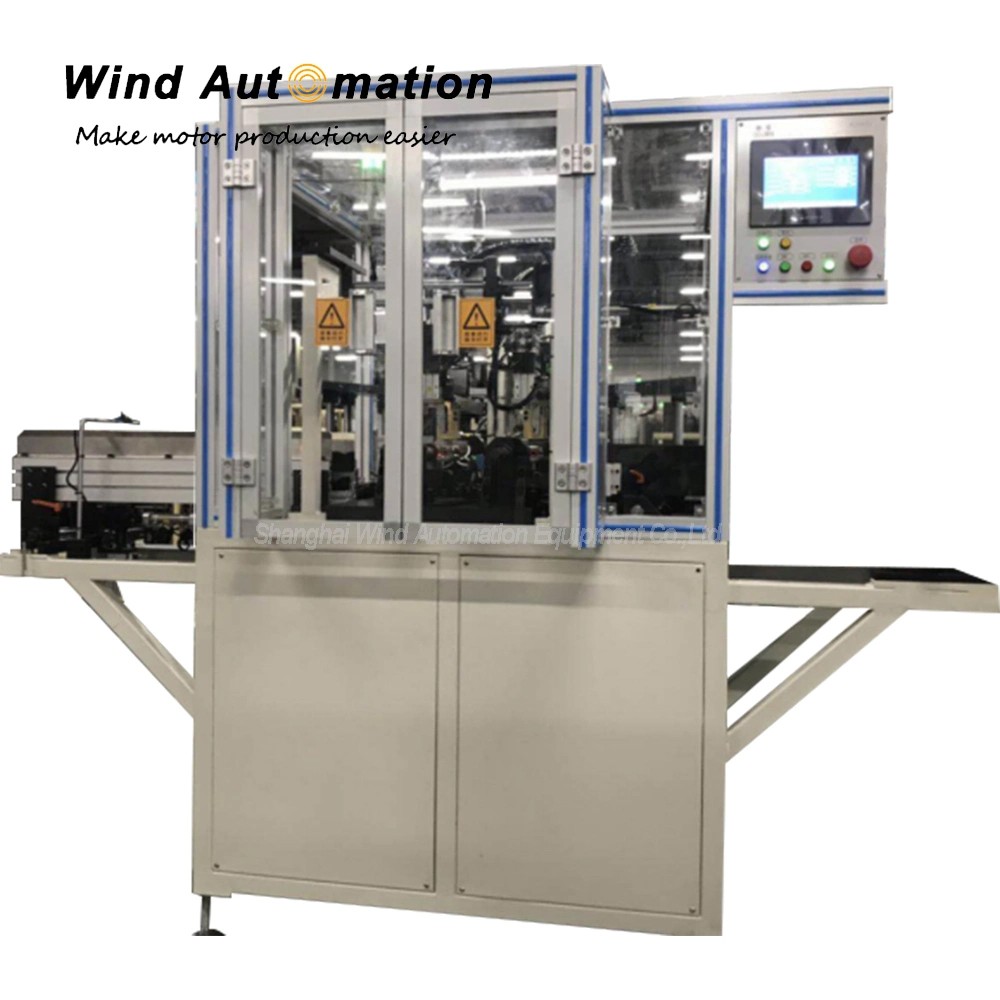

Power Tool Armature Spindle Inserting Machine Shaft Pressing Machine

Power Tool Armature Spindle Inserting Machine Shaft Pressing Machine

(1)Application and features

Press is applied in motor manufacturing, with features as below,

  • Control system with manual and semi-auto operation modes.

  • Hydraulic system consist in integration block systems.

  • Electric system is designed with advanced circuit typesetting technology, stable and reliable.

  • Working pressure and stroke could be adjusted within its ranges according to production.


(2)Specification

Model: double column

Max.working pressure: 8Mpa

Motor: 480V, 1.5KW



(3)Structure

Press is two column structure, including steel structure, hydraulic cylinders, hydraulic system, power system and electric control system, which work together through pipes and electric control system.

Steel structure

It is welded by steel plate, and the deformation stress is removed by vibration. Hydraulic system pump station is post-positioned, and hydraulic assembly is external installed, "ingenious design, reasonable appearance layout, easy maintenance." The hydraulic cylinder is fixed in the hole of top, locked with a screw and capped tightly.

Cylinder

It has one piston cylinder, head flange support, which is fixed in the installation hole by nuts. Cylinder body and piston rod are forged by 45 #, and piston rod is chrome plated (the surface is not easy to wear).


(4) Hydraulic system

Hydraulic system includes cylinder, oil pump, control valves, pipes, oil box and other control accessories, which drive cylinder by electric control system, to drive slide working and finish its process.

1. Integration valve block system

It is patent by our own company, 45# forging with many process of steel treatment, strong anti-pollution ability, reliable performance, small impact, flexible control mode, easy integration and maintenance.

2. Control Valves

Multi-valve centralized control, using domestic high-quality brand hydraulic valve components.

3. Pipe lines

High-pressure soft pipelines with flange connection, reliable sealing, and the anti-seismic pipe clamp is reasonably arranged.



(5) Safety protection

1. Protection device for hydraulic system and motor

1.1 hydraulic system is equipped with overflow valve, which can prevent over pressure and protect mould and products.

1.2 Motor is equipped with fuse and air switches to prevent overload and short circuit.

1.3 Safety signs (safety operation warning signs) are affixed to the visible parts.



2. Protection device for electric system

2.1 Short-circuit protection of main circuit is realized directly by automatic air circuit breaker, and short-circuit protection of control circuit is realized by fuse.

2.2 The connection and disconnection of the cables are achieved through contactors and relays, so the machine can get low voltage protection of the line.

2.3 All electrical devices of the machine have safe and reliable grounding devices.

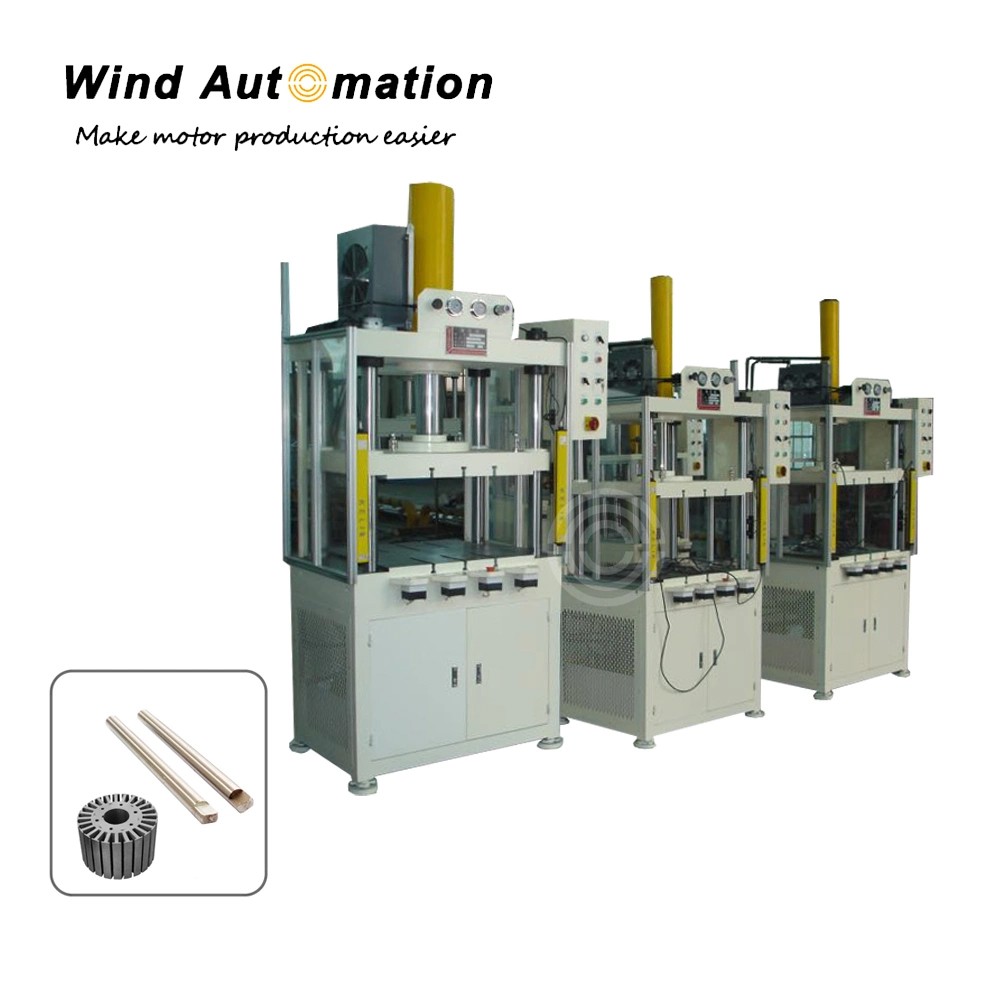

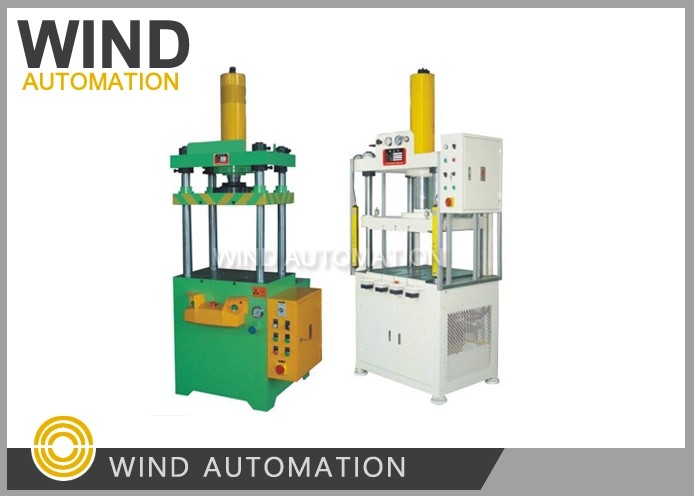

Power Tool Armature Spindle Inserting Machine Shaft Pressing Machine

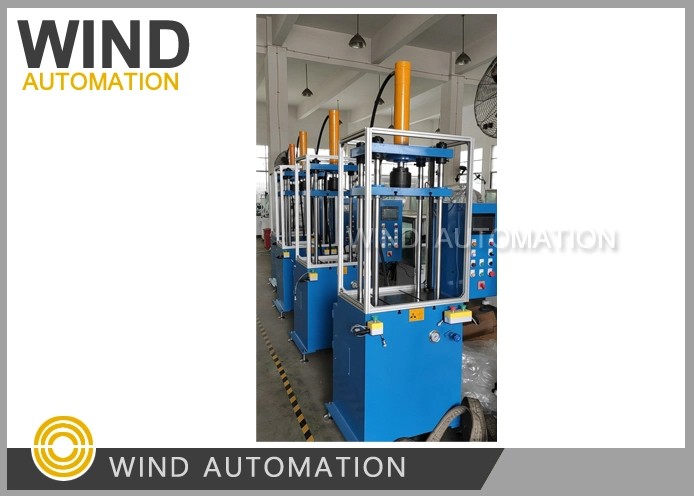

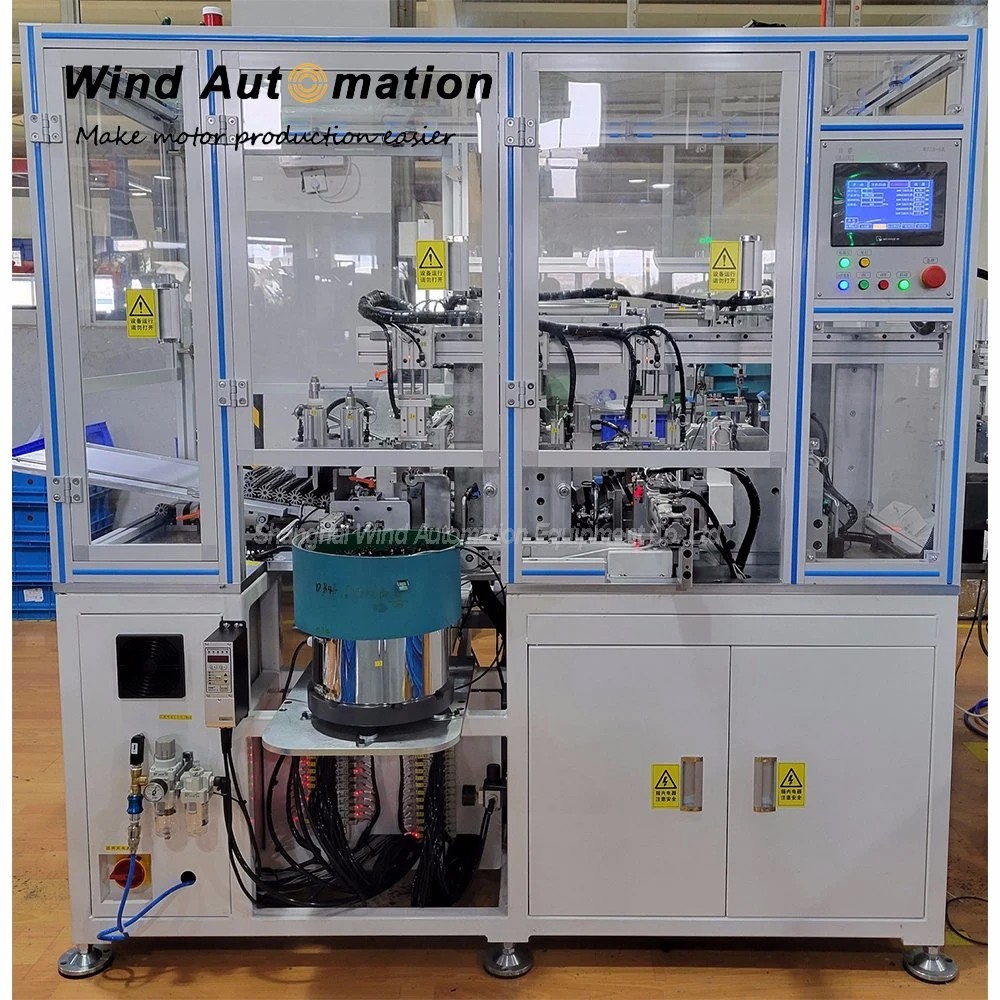

Power Tool Armature Spindle Inserting Machine Shaft Pressing Machine
