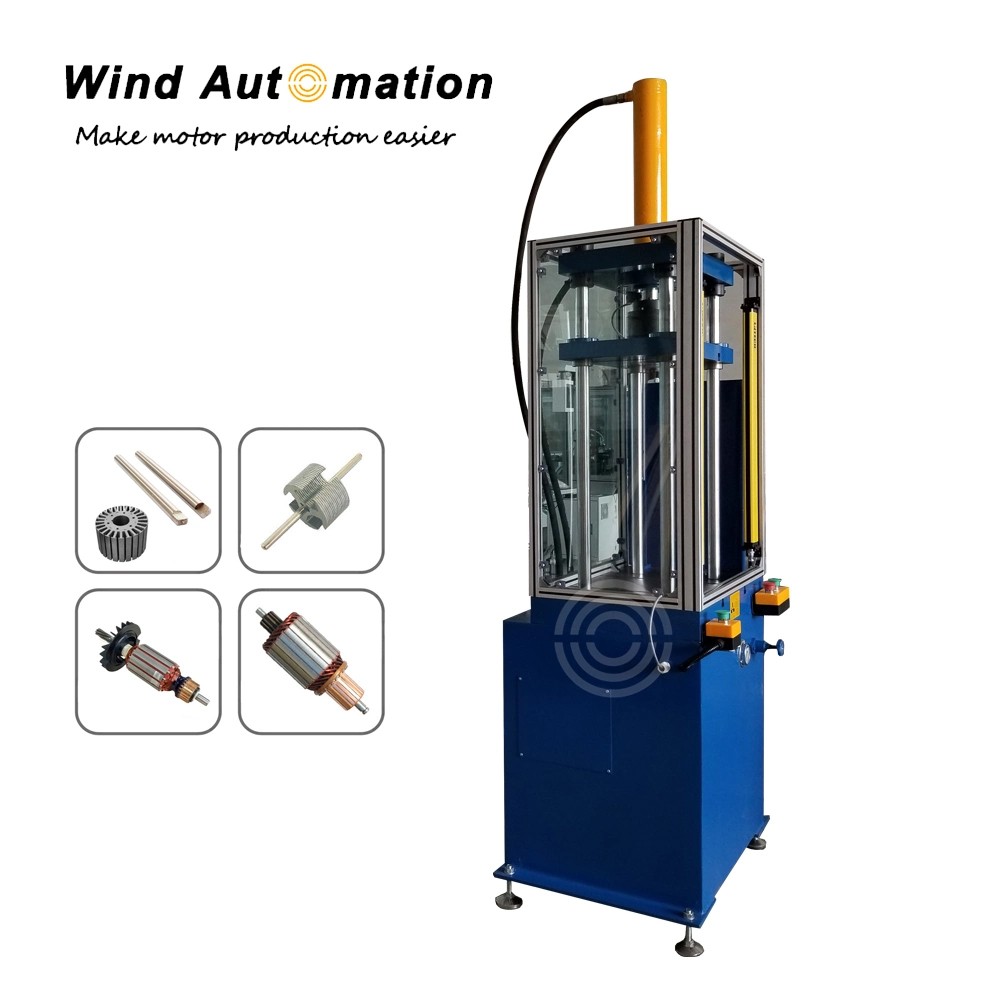

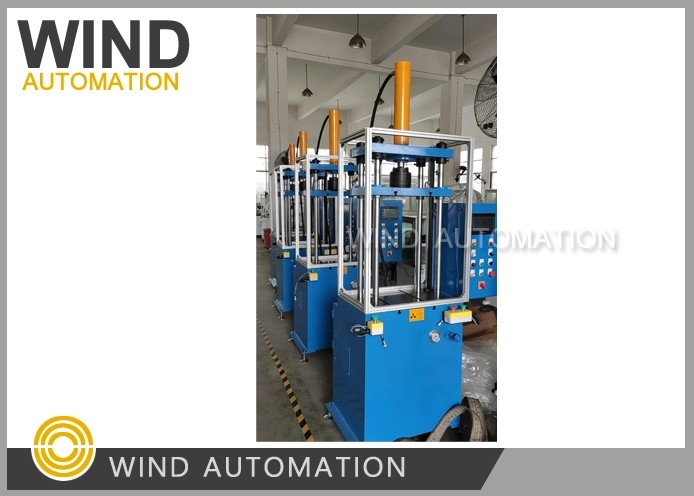

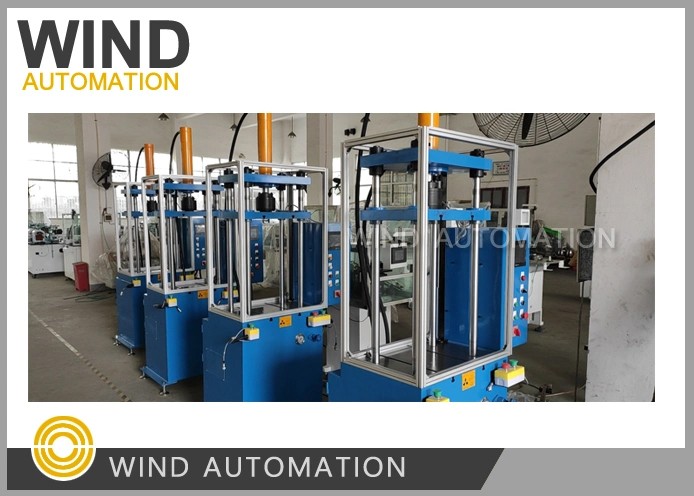

Automatic Hydraulic Spindle Pressing Machine for Universal Motor
(1) Competitive Advantages
1. The motor manufacturers have 100% satisfactions good feedback
2. Easy to operate and set on screen
3. Safety curtain ensure the safety
4. Pressure sensor and magnetic scale make sure timely observation and detection
(2) Parameter
| Hydraulic press application | Features |
| Bearing press | The pressure sensor need capable to measure force |
| Shaft inserting machine | Press machine have the capability to define lower and uppler press on force limits to detect low or upper force. |
| Commutator placement | Commutator press fixture make sure the location of commutator and slot in a relative fixed place for armature winding process |
(3) Application
Hydraulic machine for placing the stack to the and pressing the stack to get better perpendicularity and parallelism on the stack.
Press capacity will be min 15 ton.
Press should have position controller and load controller.
Minimum stroke will be 250mm
Distance between the table and shaft end is 450mm
(4) Application
1)Oil pump on: Turn one the oil pump
Oil pump off: Close the oil pump
Pressing: The main cylinder depresses
Return trip: The main cylinder returns
System menu: Return to the menu screen
2)Monitor screen:
Of which, the number in the count box behind the qualified and unqualified products can be reset.
3)Recipe screen
Position of original location: Cylinder returns to the location at which the work-piece can be freely taken out upward and downward.
Quick approach to the work-piece The location at which the upper press head of the oil cylinder quickly depresses to approach the work-piece.
