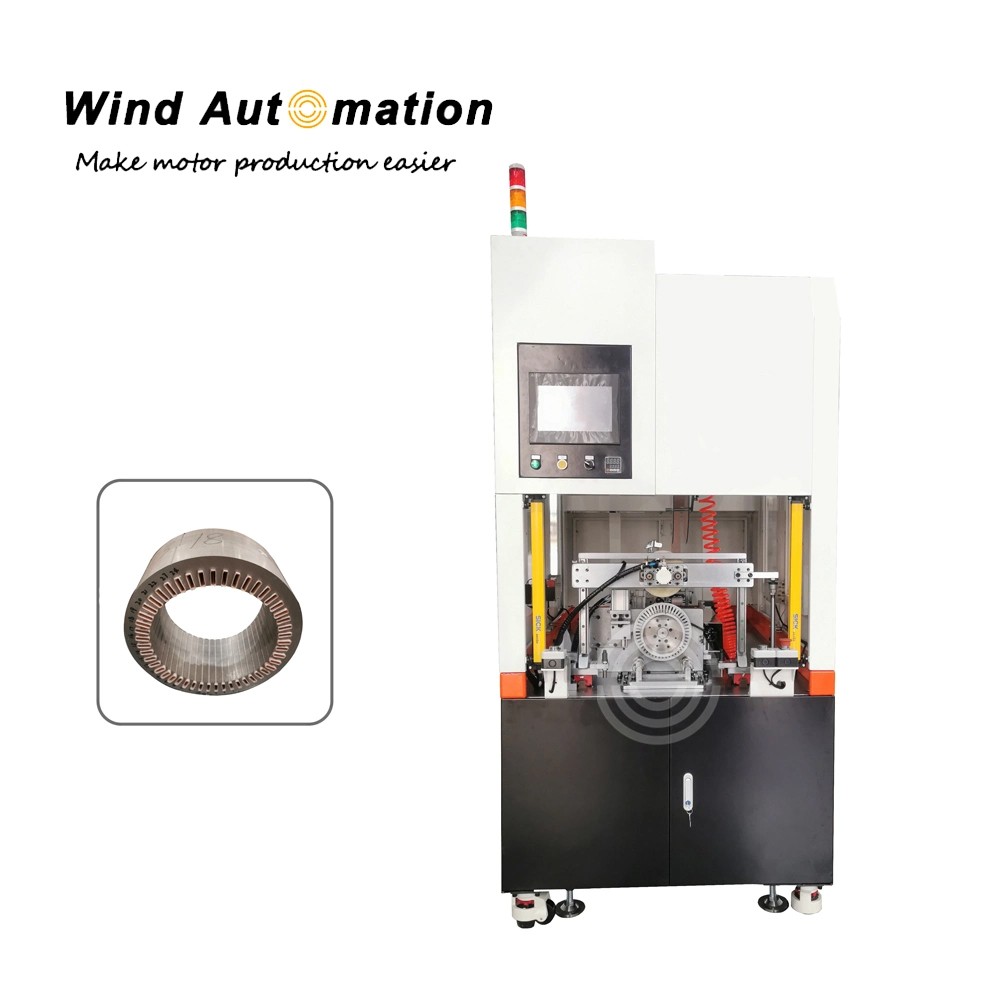

Hybrid Car Motor Stator Insulation Paper Inserting Machine

This hybrid car motor stator insulation paper inserting machine is is designed for insulation treatment for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators. Mitsubishi servo motor provides high indexing accuracy and fast movement of paper feeding. Convenient and easy for different slot number stator production.Once stator is placed on the fixture, all the other process will be done by machine automatically, including paper feeding, edge folding, edge forming, and paper inserting.

(1) Specifications

(2) Application

This machine is designed for insulation treatment for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators.

(3)  Features
Capable of forming "S" or "B" shape slot insulation
Wide stack height range
Suitable for any type of stator, regardless of diameter and slot number
Servo motor providing high indexing accuracy and fast movement of paper feeding
Automatic operation as a single unit or as a part of an automatic line
Precise Insulation paper length control
Easy for operation.
Parameter of different models can be edited, modified and displayed.
No deformation of stator and lamination after paper inserted
If paper jams occur, this paper inserting machine will automatically stop and alarm.

(4) Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
