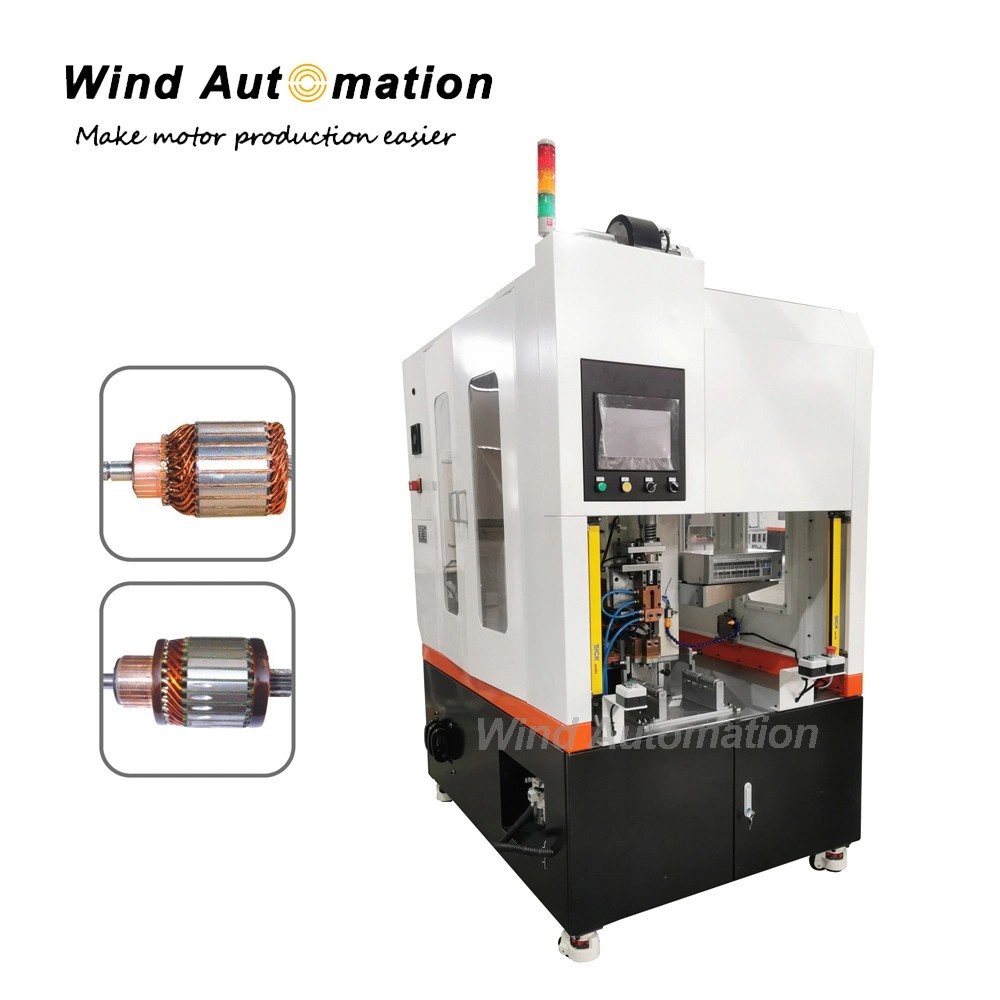

DC Resistance Commutator Welding Machine For Starting Motor Armature

DC Resistance Commutator Welding Machine for Starting Motor Armature

This machine has a wide application, Copper wire wide adaption below 3.2mm to 2.8*7.8mm. For armature parameter exceeds below specification, we also provide customized service.

(1) Specification

Item	WIND-DNZ-80
Fusing Rated power (KVA)	80
Power supply (3phase)	380V,50Hz
Max. starting current	8A
Max.short circuit current	13KV
Rated load duration	20%
Secondary voltage	5.2V
Welding cylinder dimension	f125*50
Electrode size	f10*100
Fusing machine dimension	12007201720mm

(2) Features

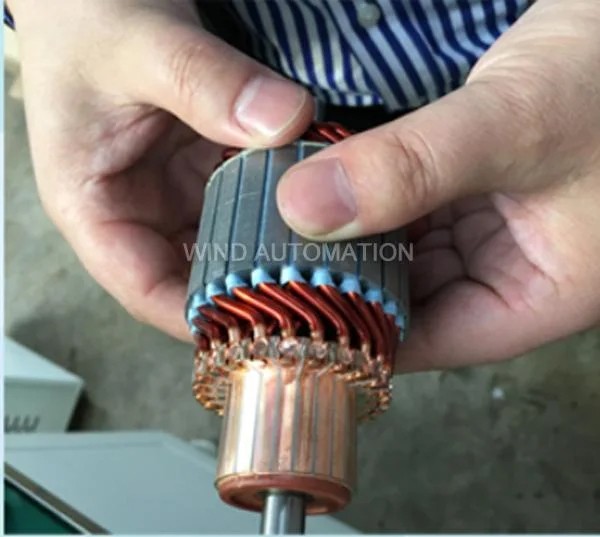

Suitable for armature with both flat or round wire
Suitable for both hook or riser type commutator
Fully automatic welding cycle after loading of armature
Water cooling system prevents overheating
Memory storage of welding and commutator's parameters
Can be customized accordingly
High quality level of the commutator welding process

(3)Competitive advantages
Assured fusing quality: Motor manufacturer use it for 8 years only replace parts two times, one time is valve replace, the other time is relay replacement
Wide application: Copper wire wide adaption below 3.2mm to 2.8*7.8mm
Easy to operate: easy for the operator to set with Miyachi controller CT110 which is widely used in fusing machine
