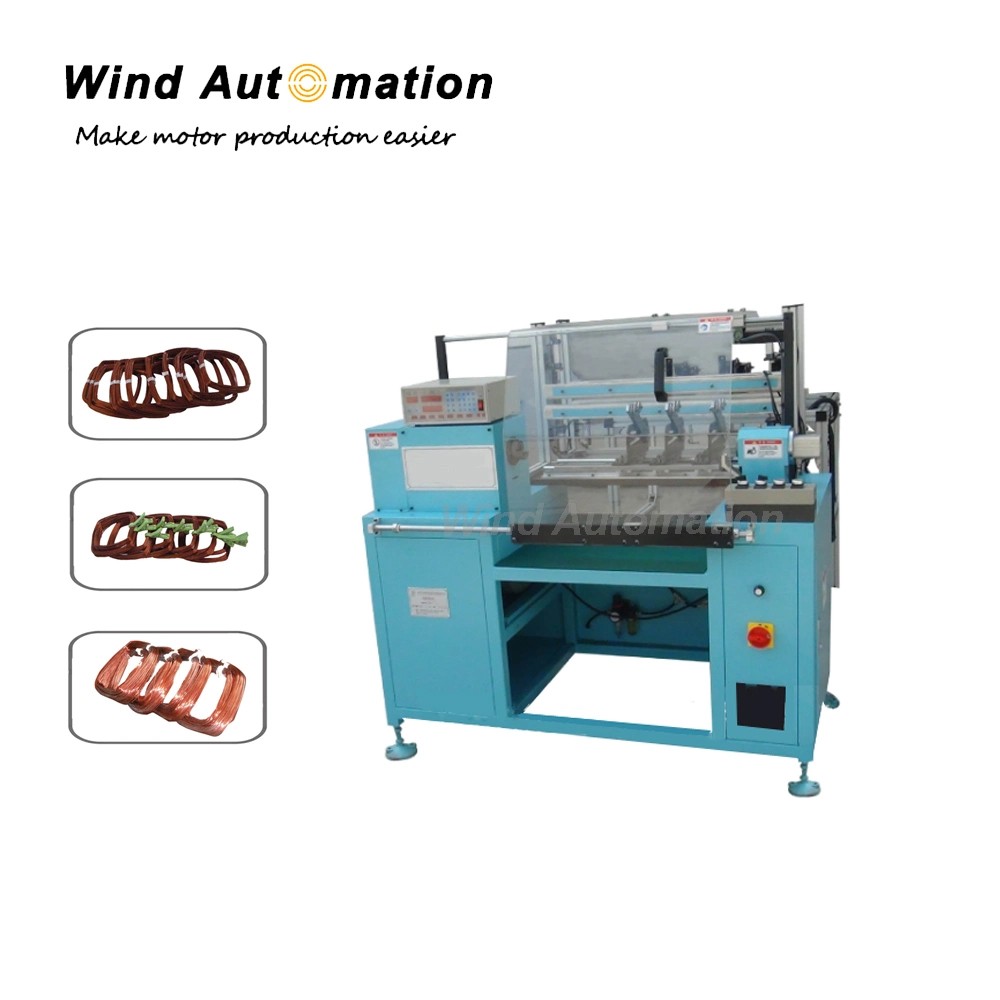

CNC Coil Winding Machine For Motor Stator
This stator coil winding machine is suitable for stator with wire diamter within 0.2 to 1.5mm. It can synchronously wind 1-3 coils.
(1) Specification
| Wire diameter | 0.2~1.5mm |
| Winding head | 1~3 Customized |
| Wind fixture OD | Max 350mm |
| Winding speed | Max 2500r/min |
| Air pressure | Min 0.4Mpa |
| Power supply | 220V 1.5KW |
| Weight | About 670KG |
| Dimension | 1550x1250x1400mm |
(2) Application
Suitable for stator with multi-connected and multi layer winding. Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.
(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 3
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor
