Product Description

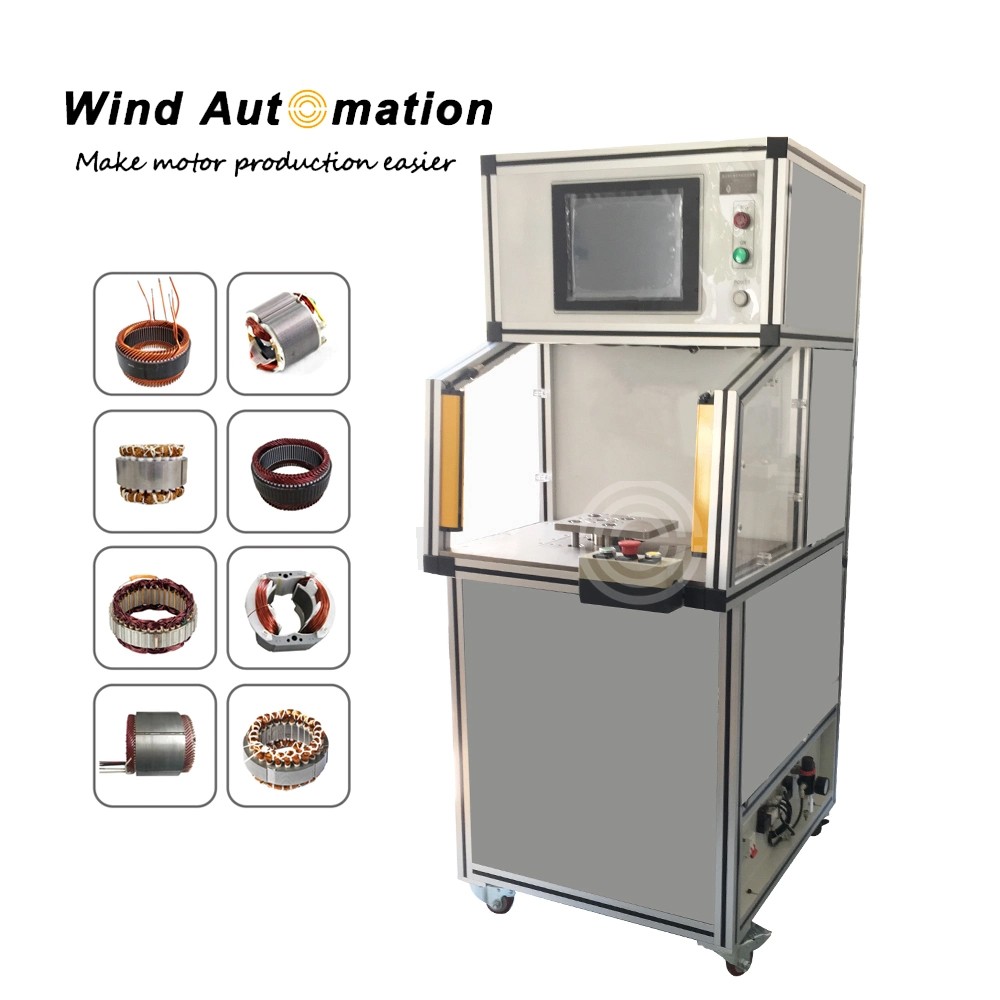

Three Phase Motor Stator Automatic Testing Machine

Three Phase Motor Stator Automatic Testing Machine

This type of stator testing machine can work as stand-alone machine or integrated into a production line

(1) Application
Suitable for various types of AC motor stator to do performance testing.


(2Testing item

Test ItemsTest DescriptionAccuracy
DC resistance0.001 ~ 1000Ω  (Automatic ambient temperature compensation)≤±0.5% Full scale
Surge100~3000Vpp≤±2.5%
Isolation resistanceDC 500V/1000V0.1-500MΩ
≤±2.5% Full scale
HipotAC 100-1000V0-20mA
≤±2.5% Full scale
Speed0~50000rpm≤±1%
VoltageAC 0-250V/0-400V≤±1% Full scale
Current0-5A/0-10A/0-20A≤±1% Full scale
Power0~3000W/0~10000W≤±1.5% Full scale
Turn directionAccording to magnetic fieldCW/CCW
NoiseFrequency Range: 0~12000HZ
Test Results: 30~120dB
≤±1.5dB
VibrationFrequency Range: 0~12000HZ
Test Results:0.1~100m/s2
≤±5%
QR/Bar codeApplicable


(3)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation


Three Phase Motor Stator Automatic Testing Machine

Three Phase Motor Stator Automatic Testing Machine
Three Phase Motor Stator Automatic Testing Machine
