Aerospace-Stator-Inslot-Coil-Winder-Shroud-Winding-Machine

Product Description

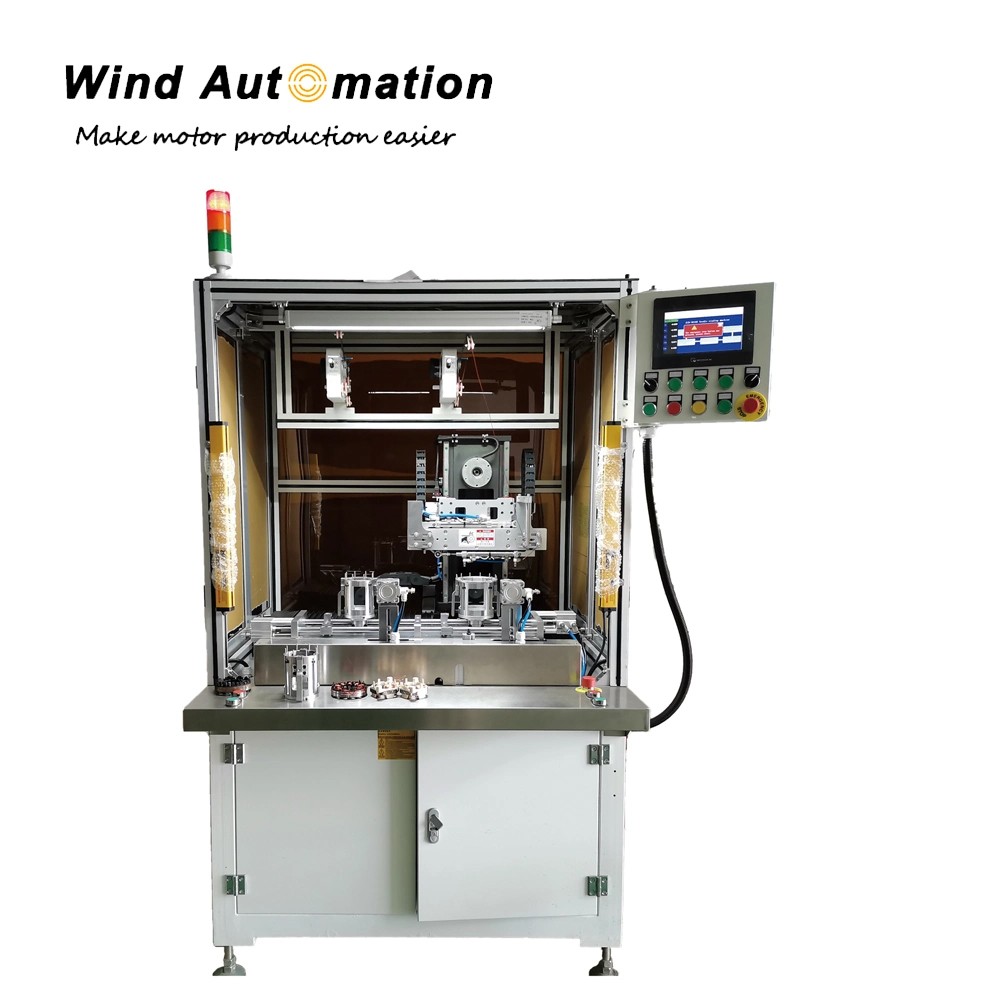

Aerospace Stator Inslot Coil Winder Shroud Winding Machine

This inslot coil winder adopts a moudle tooling design so that tooling change for different types costs less time. The whole winding is controlled by PLC and servo spindle.

(1) Features
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service4 servo control spindle
Moudle tooling design
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding

(2) Specification

(3) Application

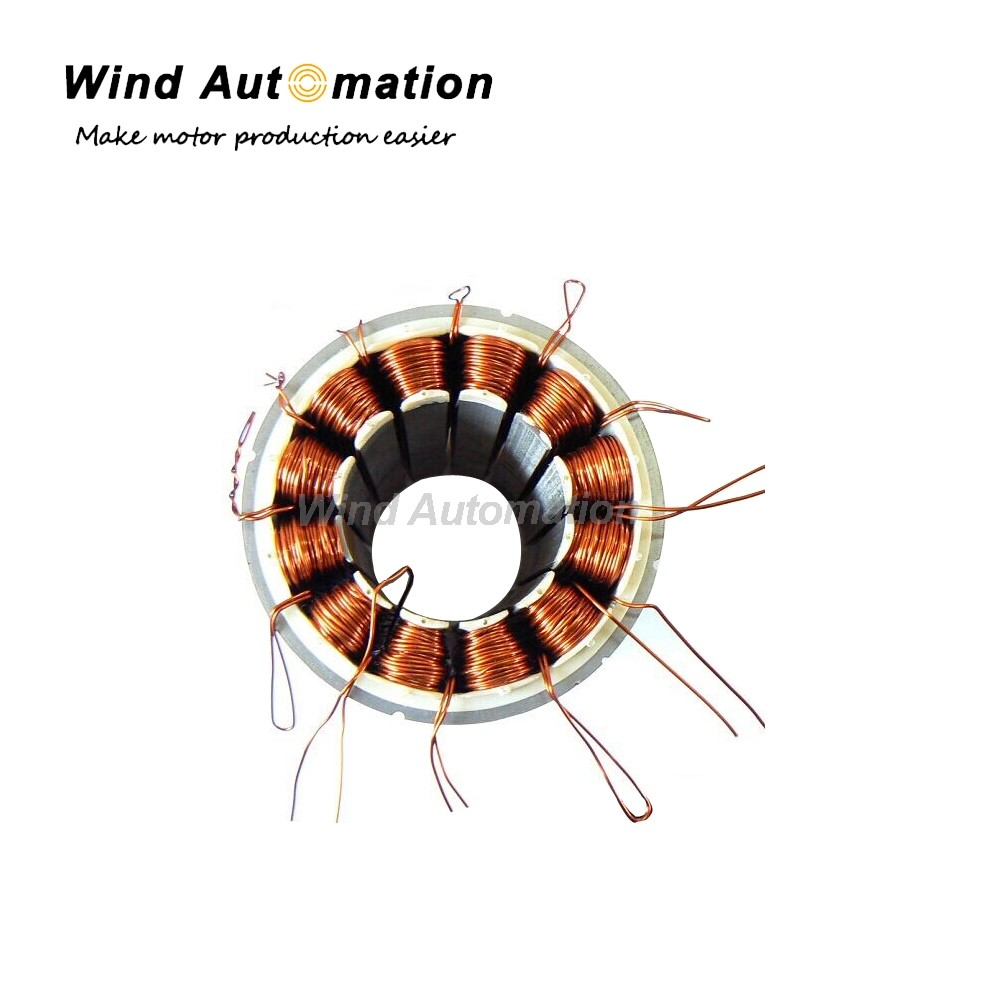

It is suitable for aerospace stator, brushless motors.

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.

(5) Machine working station
