Fully-Automatic-Motor-Armature-Commutator-Turning-Machine

Basic Info.

Model NO.

WIND-CT-TH5

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

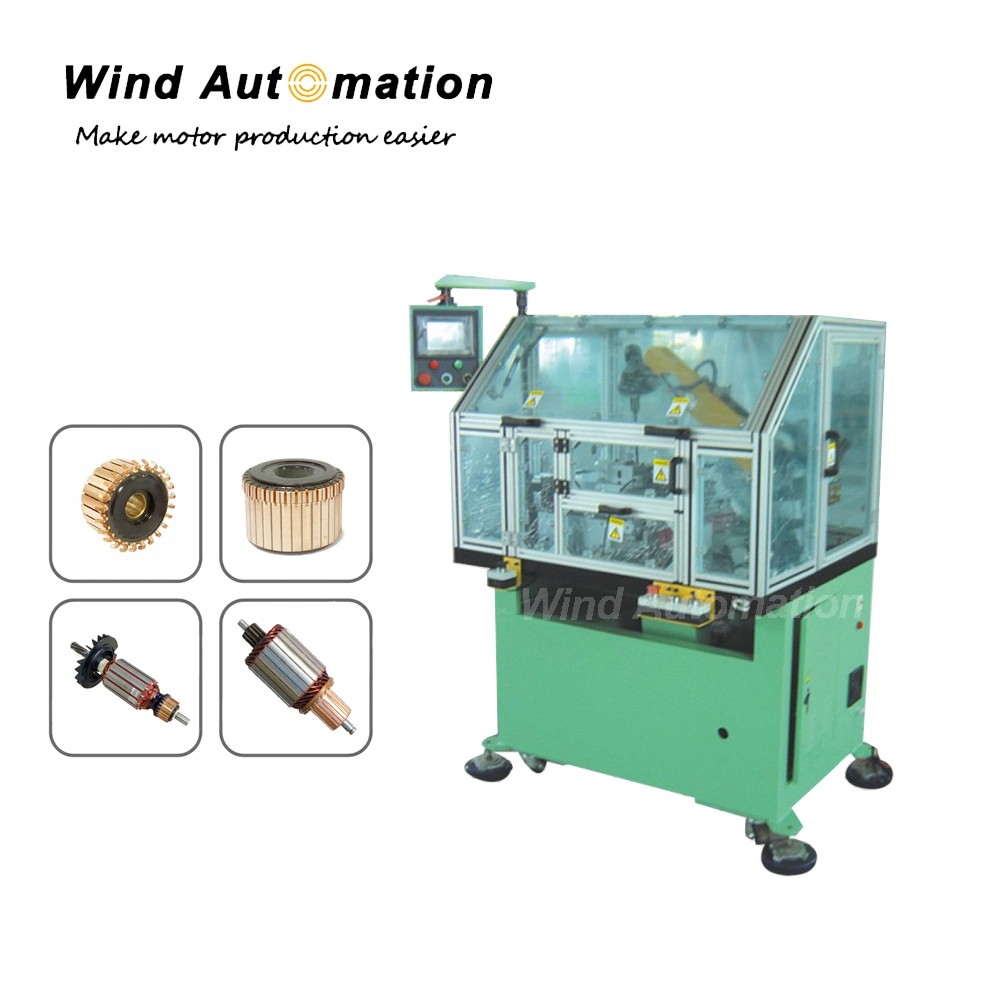

Fully Automatic Motor Armature Commutator Turning Machine

Fully Automatic Motor Armature Commutator Turning Machine

This turning machine is capable of turning commutator only. Operate completely through the touch screen, including parameters setting and modifying, password replacing, and commissioning operation. Turning time is less than 60s. Tooling change and cutter adjustment can be done within ten minutes.

(1) Specification

Roundness	<=0.003mm
Surface roughness	<=Ra0.40
Cutting volume	Max 0.1mm
Rotation speed	Max 3000rpm
Rotor OD	Ф3-Ф25mm
Commutator OD	Ф4.3-Ф40mm
Operation method	Touch screen operation
Air source pressure	4-6kg/cm²
Fixture	Diamond V-shaped Frame
Power source	AC220V 50/60Hz

(2)Feature
1.Precise with three axis servo device control
2. Smallest commutator handled by lathed commutator precise turning machine :
Turned window lifter small armature commutator OD 7mm, Shaft OD 3.0mm
3. This turning machine can work with two cutters if required for different turning direction
4. The turning tool is diamond material, also the tool holders and inserts can be custom made for lathing special material other than copper, aluminum

(3)Main configuration
Z Axis Mitsubishi Servo system (Turning length)
X Axis Mitsubishi Servo system (Turning depth)
Y Axis Mitsubishi Servo system (Press Arm)
Touch screen: Mitsubishi
Taiwan TBI Ball screw rod
Taiwan Airtac cylinder
