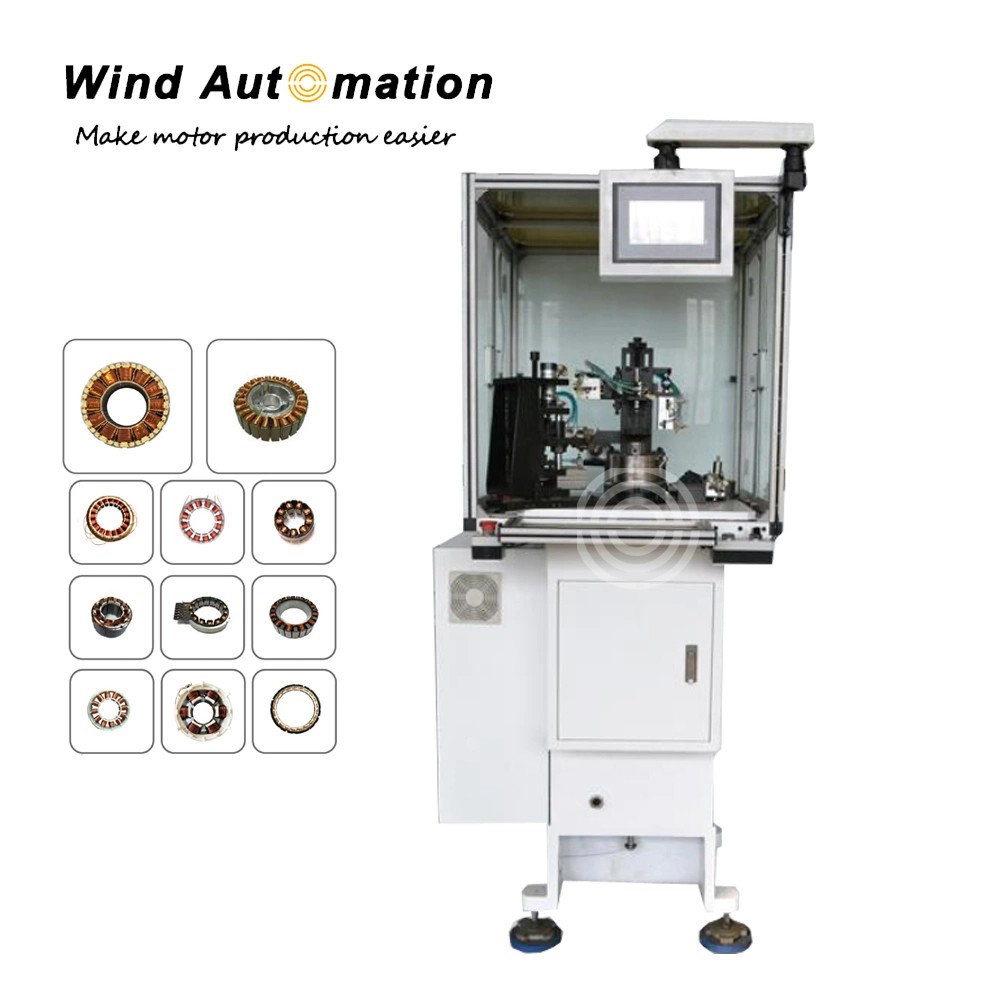

BLDC Motor Winding Machine Automatic Stator Needle Winding Machine
The precision needle winding performance brings this machine high quality and efficiency. It can producuce stators with narrow slot width and heavy wire but high slot filling rate.
(1)Application

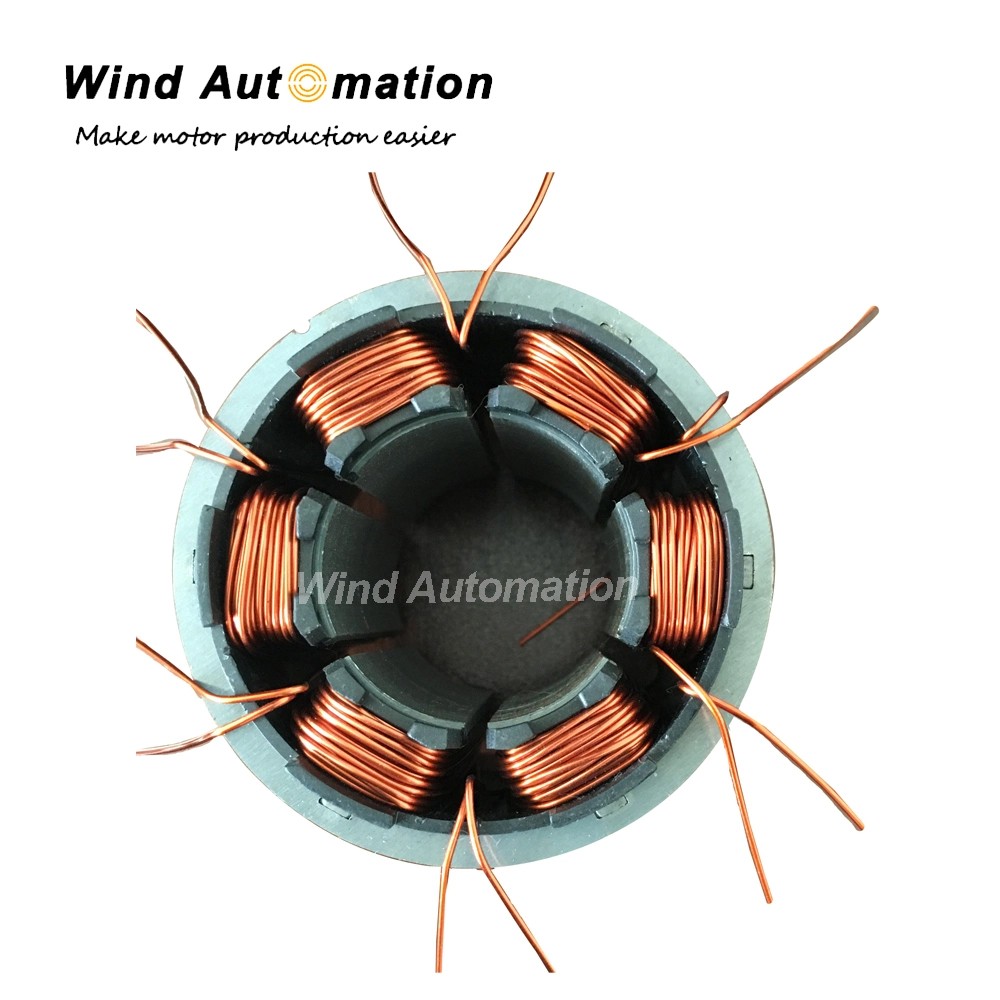

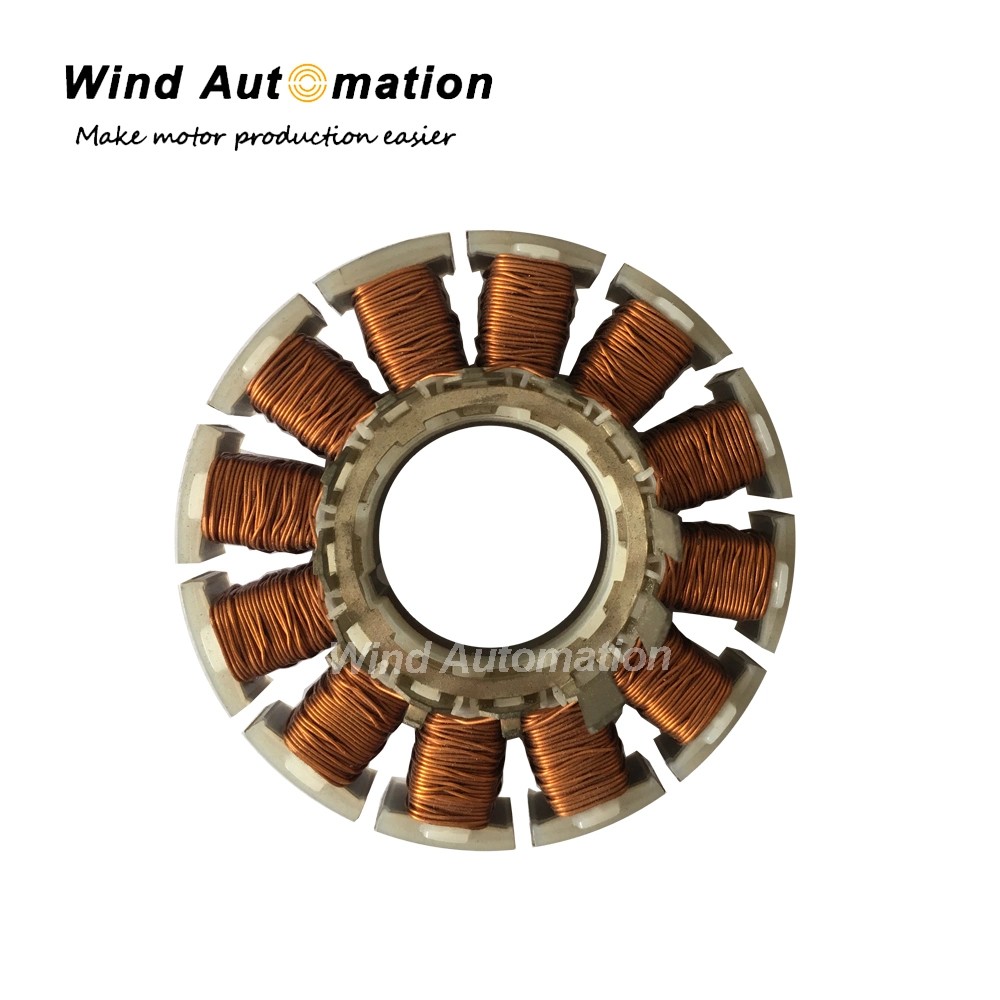

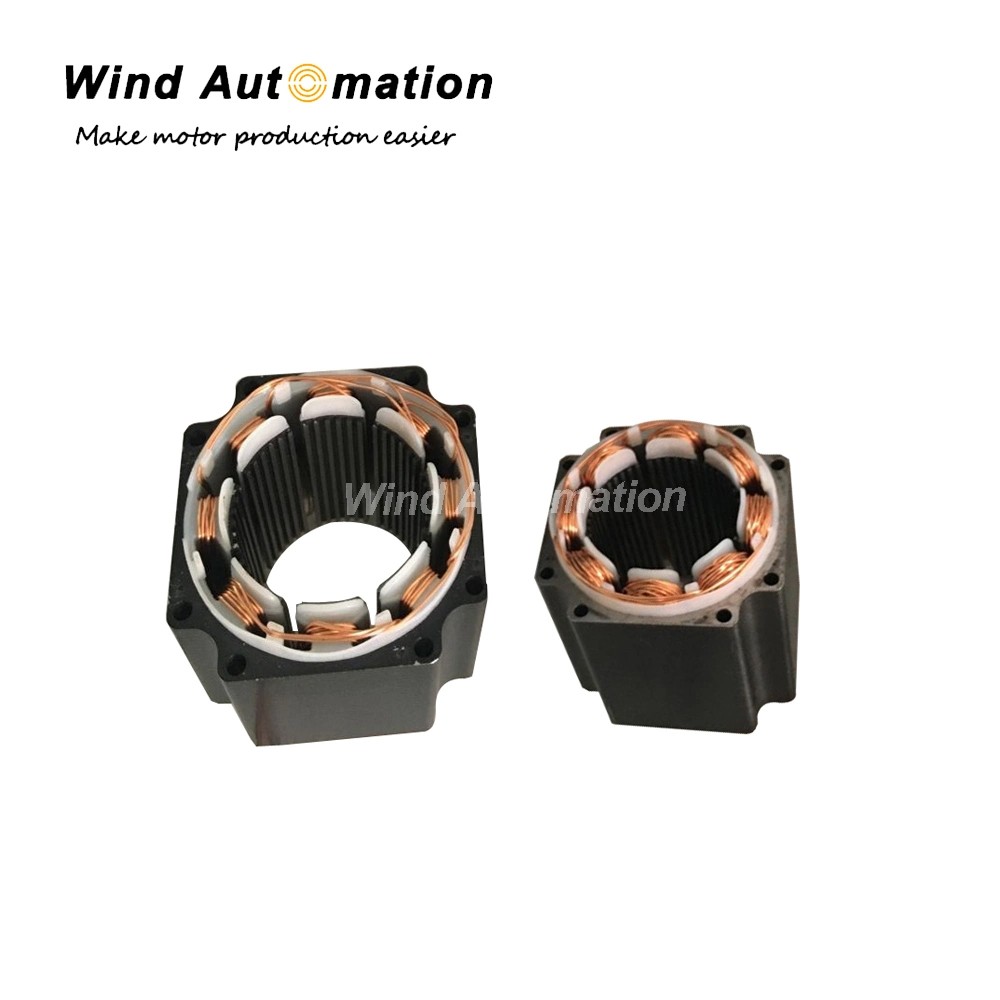

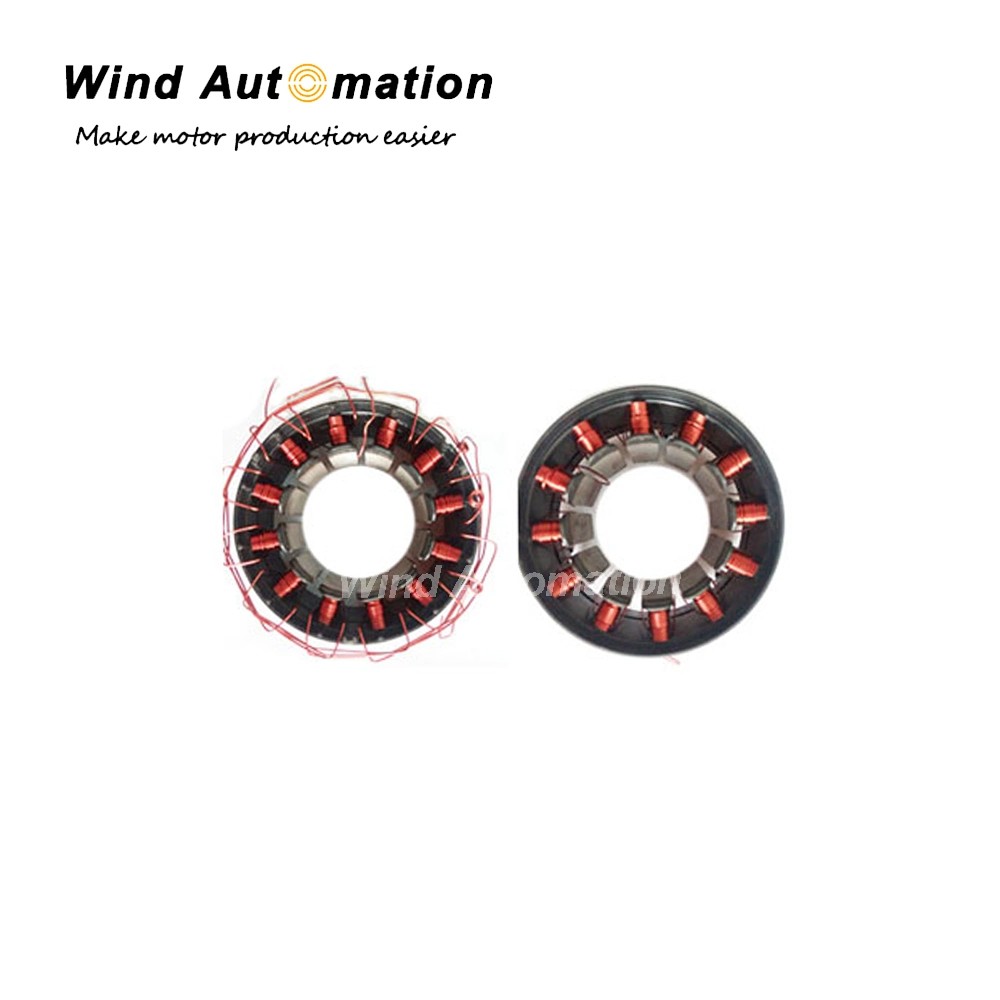

Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.
(2)Specification
| Wire diameter | 0.08~1.0mm |
| Stator ID | Min 19mm |
| Stack length | Less than 100mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1600x1100x1400mm |
(3)Features
Rectangle winding track

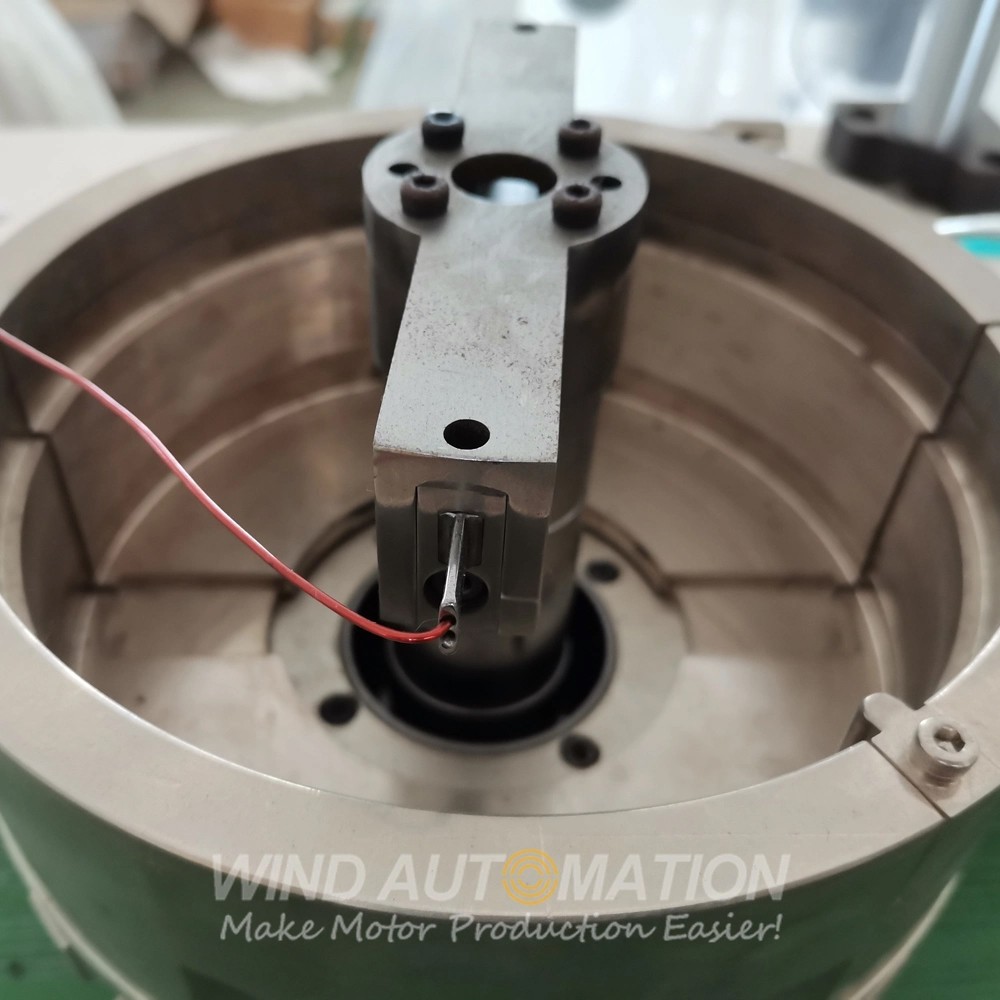

Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
