Product Description

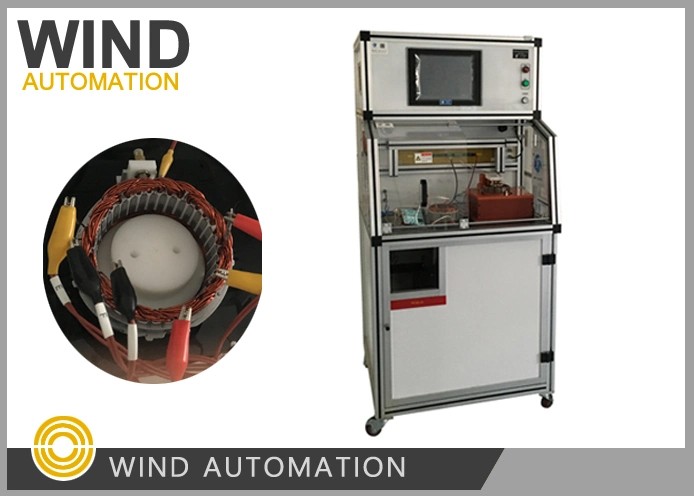

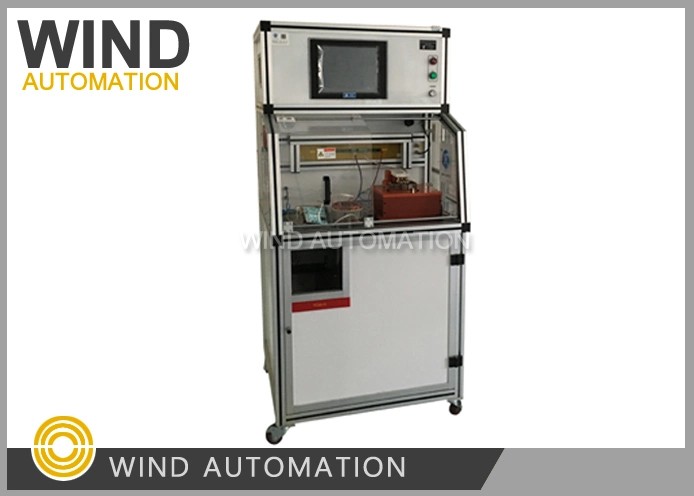

Customized Stator Testing Machine for AC DC Motors

Customized Stator Testing Machine for AC DC Motors

(1) Testing item

Test Items	Test Description	Accuracy
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-1000V	0-20mA ≤±2.5% Full scale
Speed	0~50000rpm	≤±1%
Voltage	DC 0-30V/0-60V	≤±1% Full scale
Current	0-5A/0-30A/0-60A	≤±1% Full scale
Power	0~3000W	≤±1.5% Full scale
Torque point	1~5 file	1~10 points
Turn direction	According to magnetic field	CW/CCW
Noise	Frequency Range: 0~12000HZ Test Results: 30~120dB	≤±1.5dB
Vibration	Frequency Range: 0~12000HZ Test Results:0.1~100m/s2	≤±5%
QR/Bar code	Applicable

(2) Application
Suitable for various types of starter, starting motor stator to do performance testing.

(3)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation

The neat and tidy testing equipment is very suitable to work in your neat and tidy plant

Please inform your detail requirement for below two additional functions to evaluate cost (these functions should consider software compatibility on testing equipment)
No:1 Reading barcode
No:2 Laser marking device or coding device
