Product Description

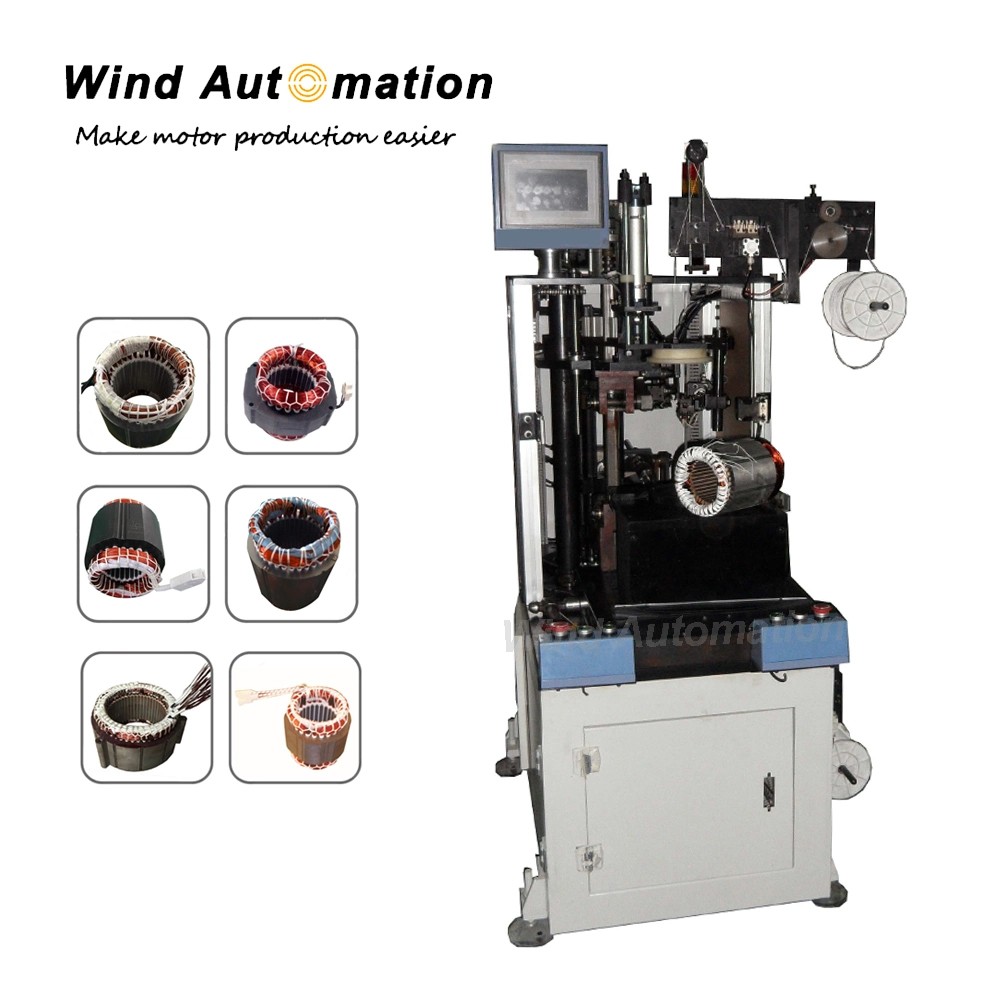

Single Side Induction Motor Stator Winding Lacing Machine

Single Side Induction Motor Stator Winding Lacing Machine

This lacing machine adopts servo driven system, PLC control and HIM program.Both lacing parameter and tension can be edited. It can only do one side lacing each time.


(1) Specification

Stack length50~160mm
Stator ID40~120mm
Stator ODMax 190mm
Coil heightMax 50mm
Lacing modeSlot by slot/ interval slot/ fancy lacing
Lacing speed0.7s/slot
Power2KW
Power supply380V 50/60HZ
Weight700KG
Dimension1000x600x1250mm


(2) Application
This type of machine is suitable for small-sized AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.

(3) Feature
Manual loading and unloading
Several lacing mode applicable

Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Easy for operation, No skilled operator required

Single Side Induction Motor Stator Winding Lacing Machine
Single Side Induction Motor Stator Winding Lacing Machine
Single Side Induction Motor Stator Winding Lacing Machine


Single Side Induction Motor Stator Winding Lacing Machine
