Product Description

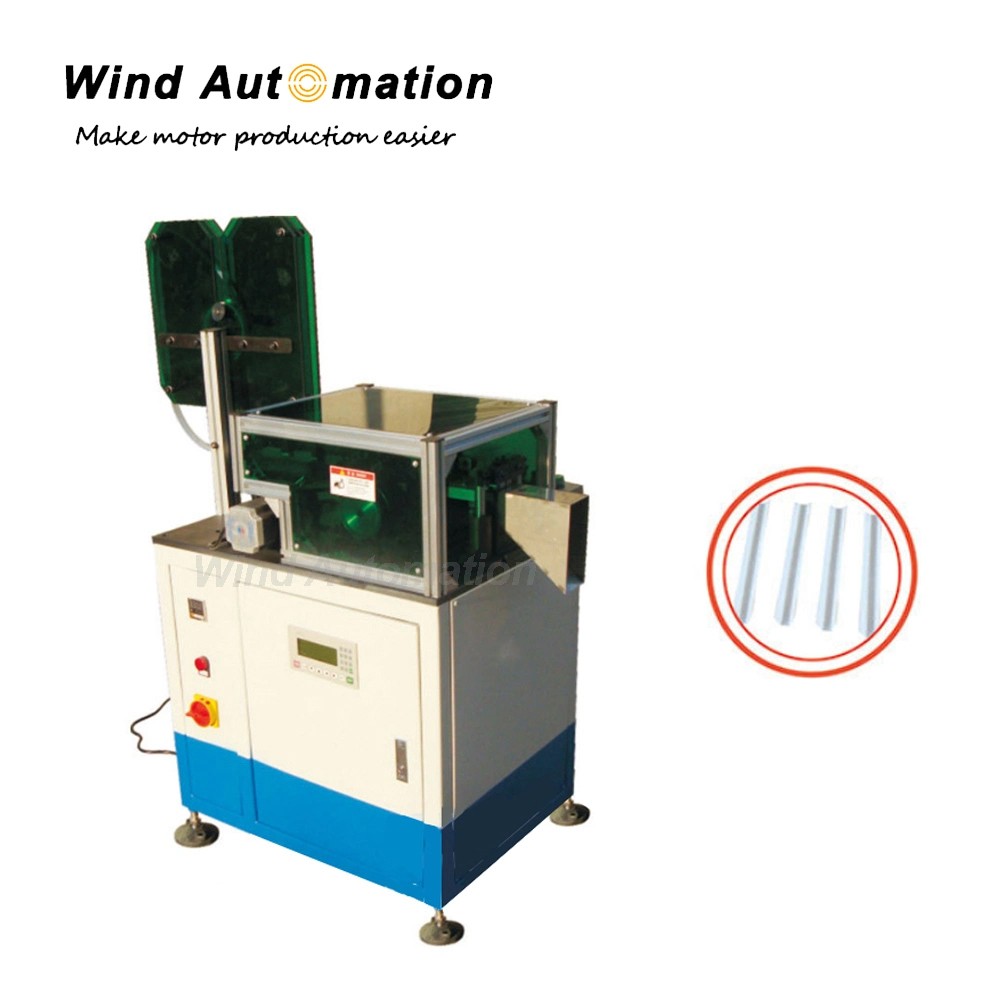

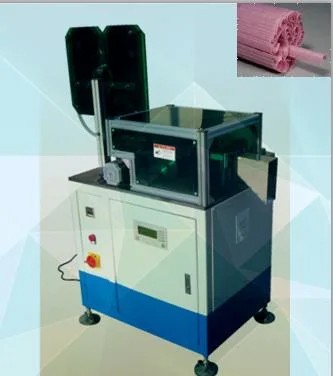

Wedge  Forming and Cutting Machine For Motor Stator

This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by servo motor.


(1) Specification

(2) Feature
Simple and easy to operate
No skilled operator needed
Wide application
No regular maintenance needed

(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc

(4) Question and Answer:tion and Answer:

Question:

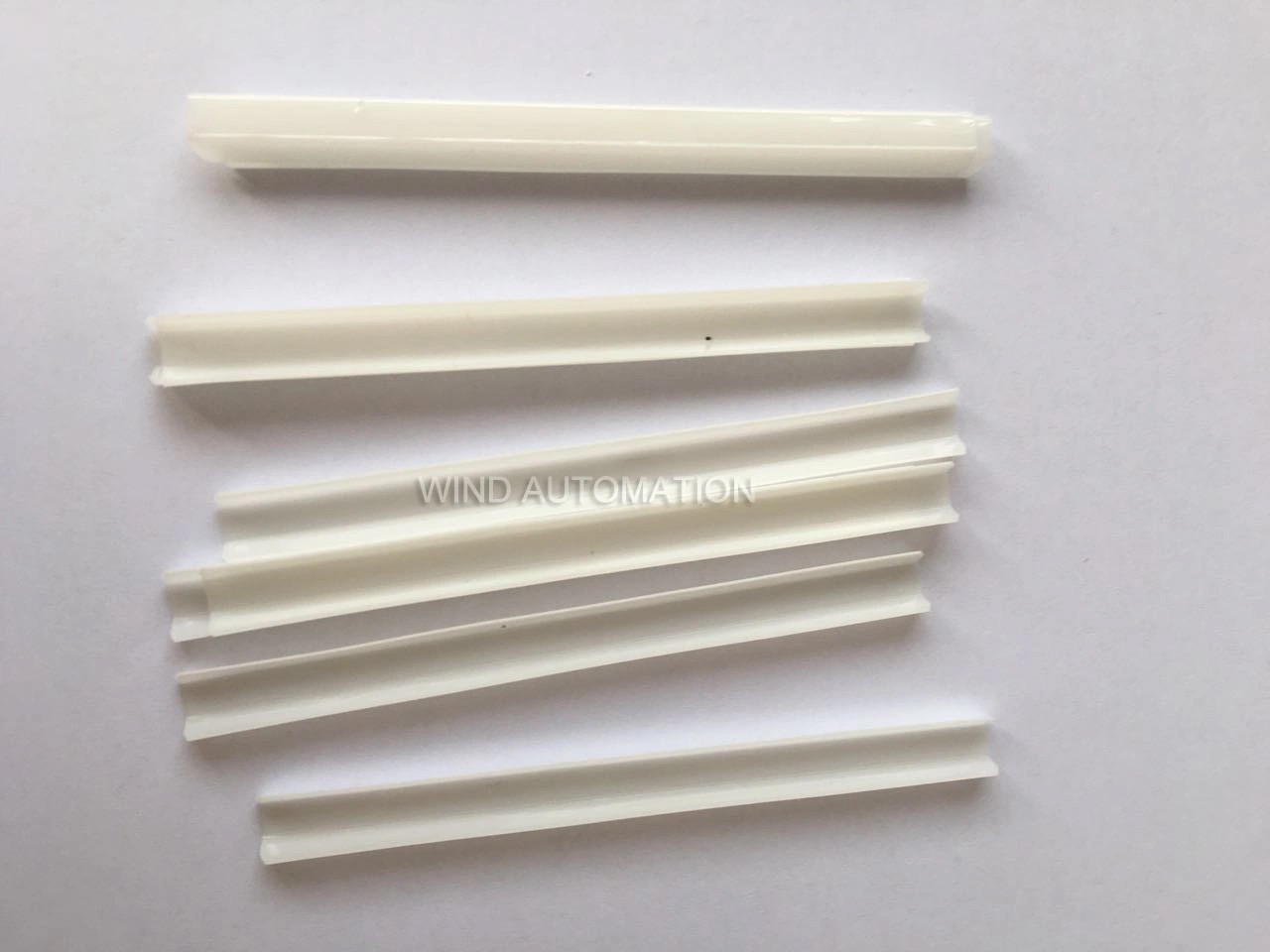

our topsticks (or wedge sample) can be 0.020". Please advise if your automatic wedge forming machine

can form this wedge or not.

Answer:

in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,

The wedge should be heated on machine before formed,

Your wedge is NMN with 0.51mm and too hard to be formed, sorry, the forming machine WIND-200-WF

can't meet your requirment.
