Ball-Bearing-Pressing-Machine-for-Universal-Motor-Armature-for-Aluminum-Rotor

Product Description

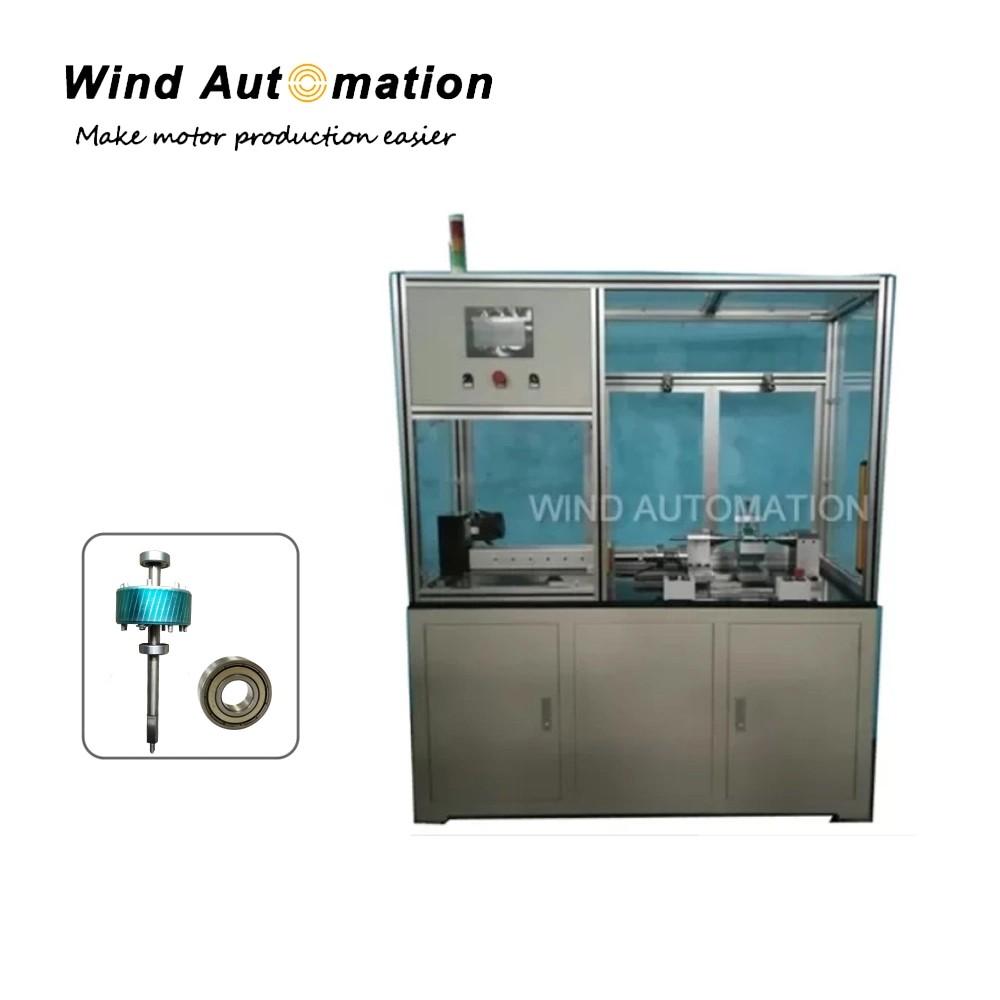

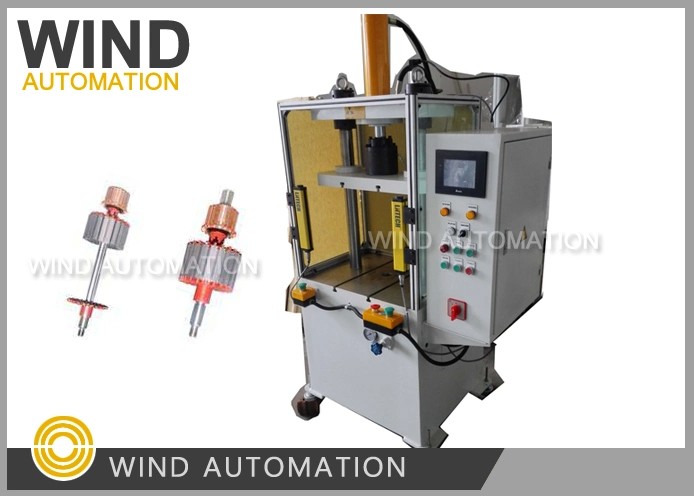

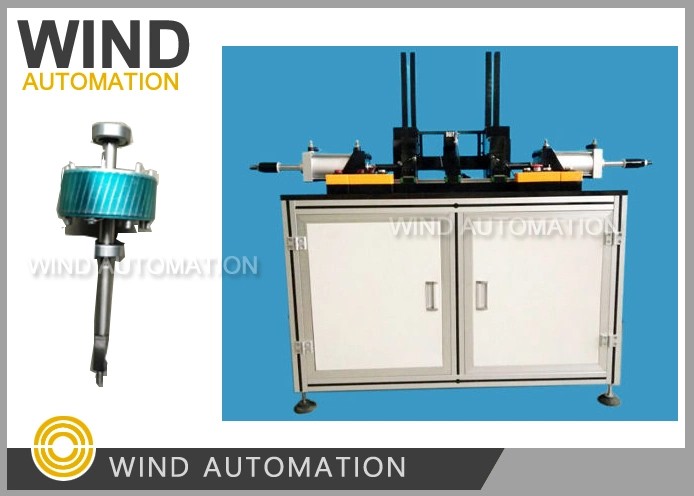

Ball Bearing Pressing Machine for Universal Motor Armature Aluminum Rotor

(1) Application
Suitable for rotor armature with ball bearing

(2) Competitive Advantages

(3) Technical Data
Ball bearing type: OD 22mm(608) to OD 35mm
Shaft length: 150mm to 250mm

(4) Feature

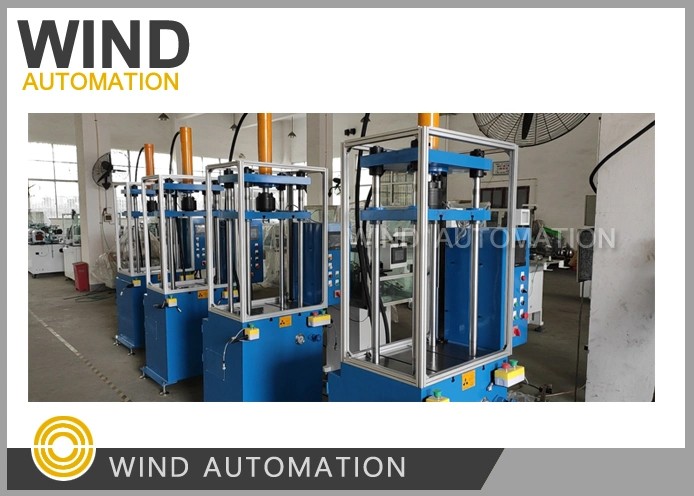

Servo press machine is composed of bow frame, stamping slider, operating table, four guide columns,servo electric cylinder, servo electric cylinder control system, servo electric system, pressure sensor,line and other parts. Optional high precision displacement sensor Detection, closed-loop system control, high pressure accuracy.

1) Precise ball bearing press
 Compared with conventional pneumatic and hydraulic presses, the servo motor press machine achieve precise pressure and full-closed-loop control for accurate pressure and displacement.

2) Energy saving
The energy-saving effect is over 80%, and it is more environmentally friendly and safe, and can meet the requirements of a clean no dust equipment requirements workshop.

3) Real time monitoring
 Pressure and displacement of the entire process curve can be displayed on the LCD screen, the whole process control can be automatically determined at any stage of the work of the product is qualified or not, 100% real-time removal of defective products, as a result achieve online quality management.

4) Easy touch screen setting
 Press-fitting force, press-in depth, press speed, pressure holding time, etc. all can be edited and set on the operation panel, friendly interface, simple operation. Can store 100 sets data.

5) Data can be stored for tracking
 Seven kinds of pressure mode can be selected to meet your different process requirements. Can connect to the computer and store the pressure data in the computer, ensuring the trace ability of the product processing data and facilitating the production quality control and management.

6) No hard limits are needed
As the machine itself has precise pressure and displacement control functions, so no additional hardware limits are required on the tooling, machining is not When the same specification product is used, it only needs to call different press-fitting procedures, so a multi-purpose and flexible assembly line can be easily realized.
