Armature Commutator Pressing Machine Commutator Insertion Machine
This machine can run as a single stand-alone machine, as well as integrated into a production line. It is widely used to do commutator inserting. Machine will do auto feeding and inserting. All the parameter can be programmed on touch screen.
(1)Specification
| Shaft OD | 3-15mm |
| Armature OD | 20-60mm |
| Commutator OD | 8-40mm |
| Shaft length | 32-250mm |
| Armature slot number | 8-24 slots |
| Speed amplitude modulation | 0-670Hz |
| Air source | 6Kg/cm2 |
| Total power | 1 KW |
| Power source | AC220V |
| Weight | About 400Kg |
| Dimension | 910x880x1300mm |
(2) Application

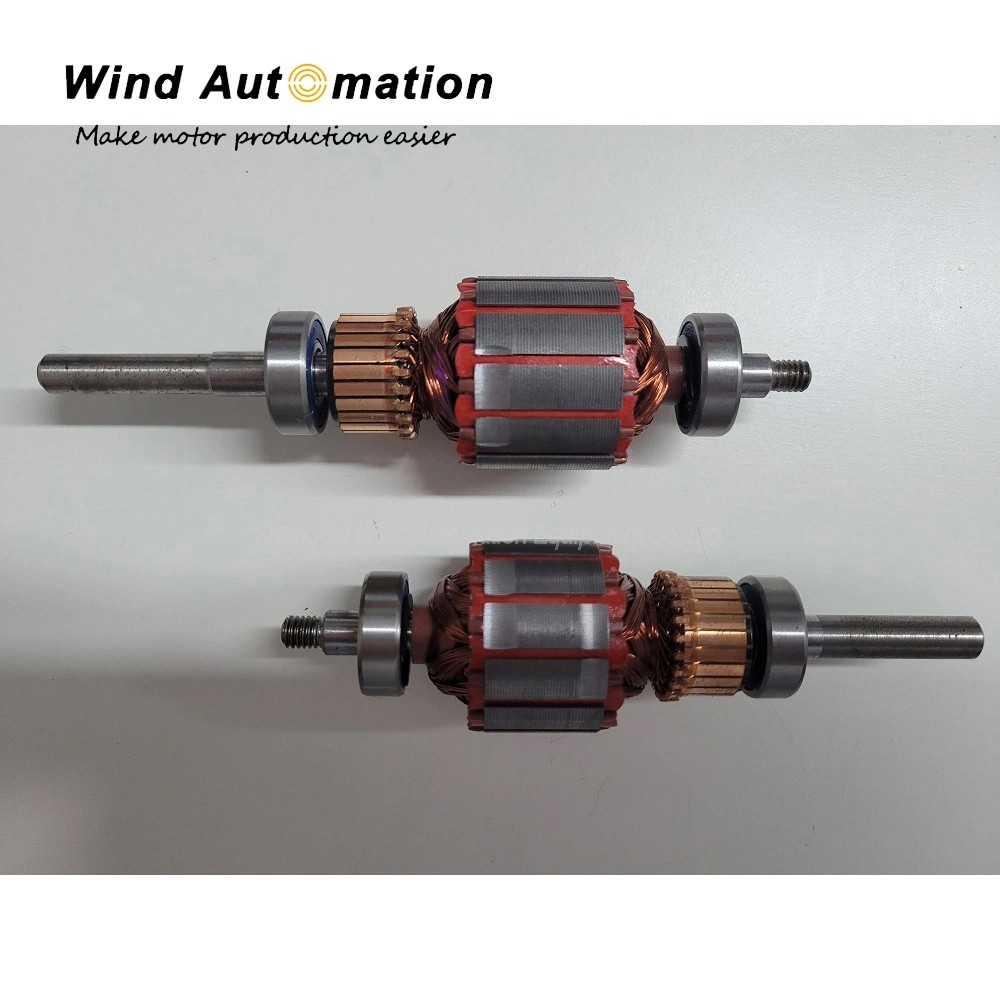

This machine is suitable for home appliance, car and power tooling motor armature.
