Model NO.
WIND-3A-PL
Specification
Middle Size
Trademark
Wind Automation
Origin
China
HS Code
8479811000
Production Capacity
100 Sets/Year

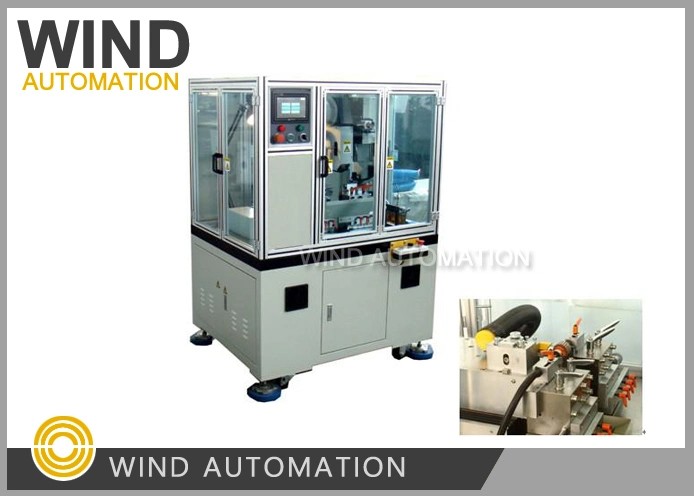

Armature Core Turning Machine Commutator Surface Lathe
This turning machine integrates commutator turning machine and armature core turning machine into one machine, greatly improves working efficiency and lower the cost. It has two working stations, one for turning commutator, the other for turning rotor. It is equipped with dust collection system and lubricating system. Both cutting and turning process are under servo control mode. Fast tooling change within 10 min.
(1)Working principle

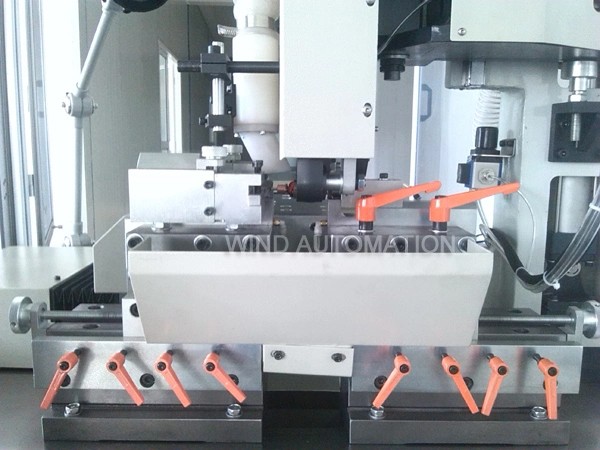

Driven by three-phase asynchronous motor, followed by the rotation of belt, rotor shaft rotates at a high speed on the diamond V shape holder due to the pressure friction. horizontal and vertical cutter feeding is driven by three-axis servo motor and ball screw. All the action is completed by the PLC.
(2) Specifications
| Commutator roundness | ≤0.01mm |
| Surface roughness | Ra0.4 |
| Maximum cutting volume | Max 0.1mm |
| Rotational speed | Max1300rpm (set in touch screen) |
| Rotor OD | 20~ 60mm |
| Shaft length of commutator side | less than 100mm |
| Shaft OD | 3 ~ 28mm |
| Commutator OD | 20~ 80mm |
| Air source | 4 ~ 6kg / cm2 |
| Fixture | Steel Stone V shape holder |
| Total power | 6KW |
| Power supply | AC480V |
| Machine weigh | 1000KG |
| Dimensions | 1260mm (L) x 1000mm (W) x 1750mm (H) |
(3)Main configuration
Mitsubishi PLC
Mitsubishi inverter
Delta three-axis servo system
MCGS touch screen
High-precision linear rolling guide
Precision ball screw
Arc Diamond V shape holder
Diamond cutter
High-power industrial vacuum cleaner
