Basic Info.

Model NO.

WIND-1B-TSM

Outside Rotor Tooth Winding Service

Engineers Avaiable to Service Overseas

Automatic

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

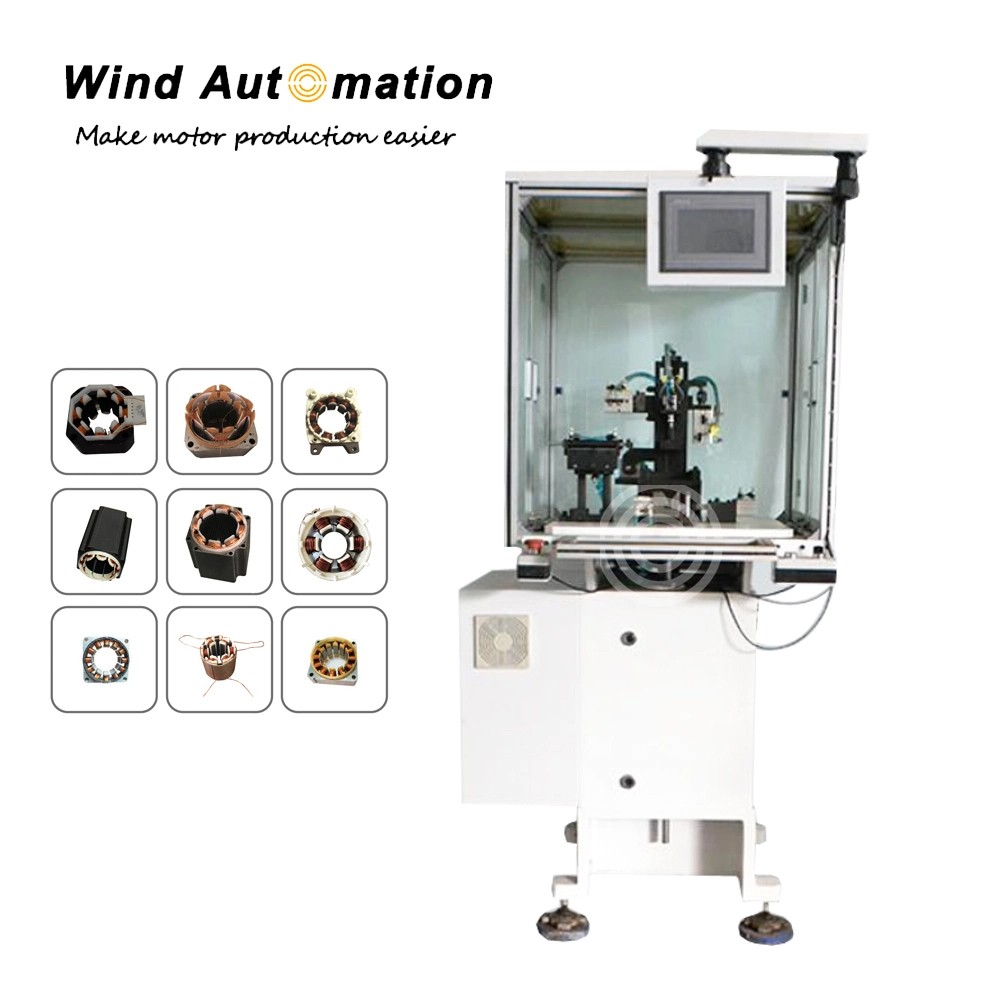

Automatic Shroud Coil Winding Machine for BLDC Motor Stator with Narrow Slot Width

Automatic Shroud Coil Winding Machine for BLDC Motor Stator with Narrow Slot Width
This shroud winding machine covers a wide stator application and wire diameter range. All the processes are achieved by machine automatically, including needle winding, arraying, indexing, bridge wire placing, wire cutting etc. Machine can diagnose fault and count output.

(1)Specification

Wire diameter	0.08~0.8mm
Stator ID	15~65mm
Stack length	7~100mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,8,9,10,12,14,18(customized)
Air source	5~7kg/cm3
Power	1KW
Power supply	AC 220 V, 50/60HZ
Weight	350KG
Dimension	1550x900x1450mm

(2)Application

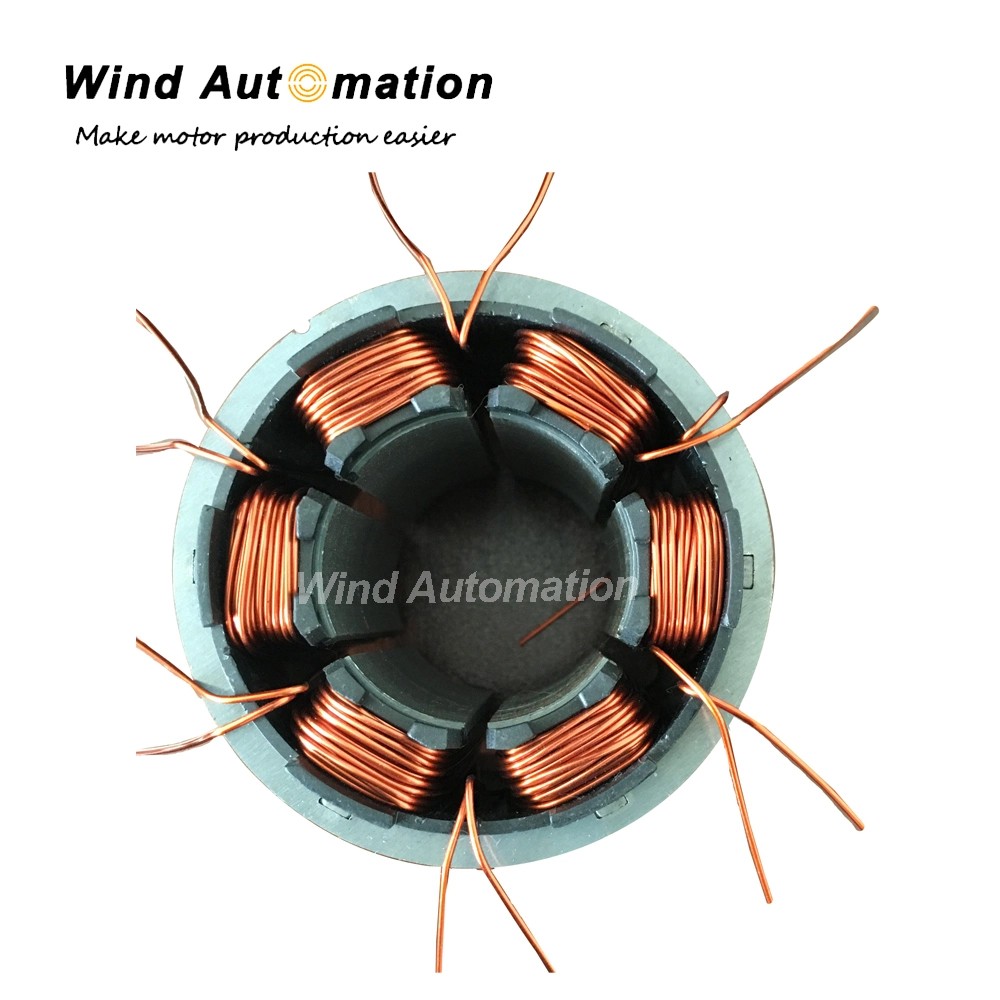

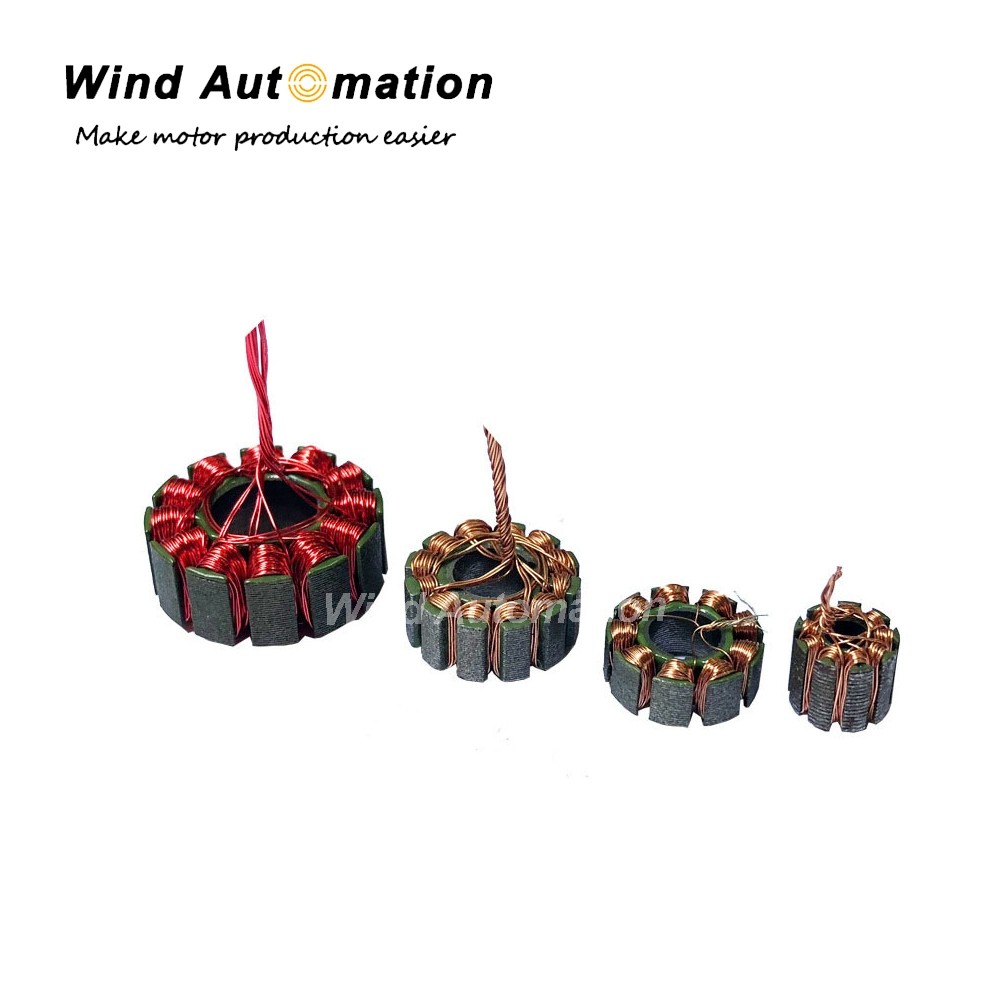

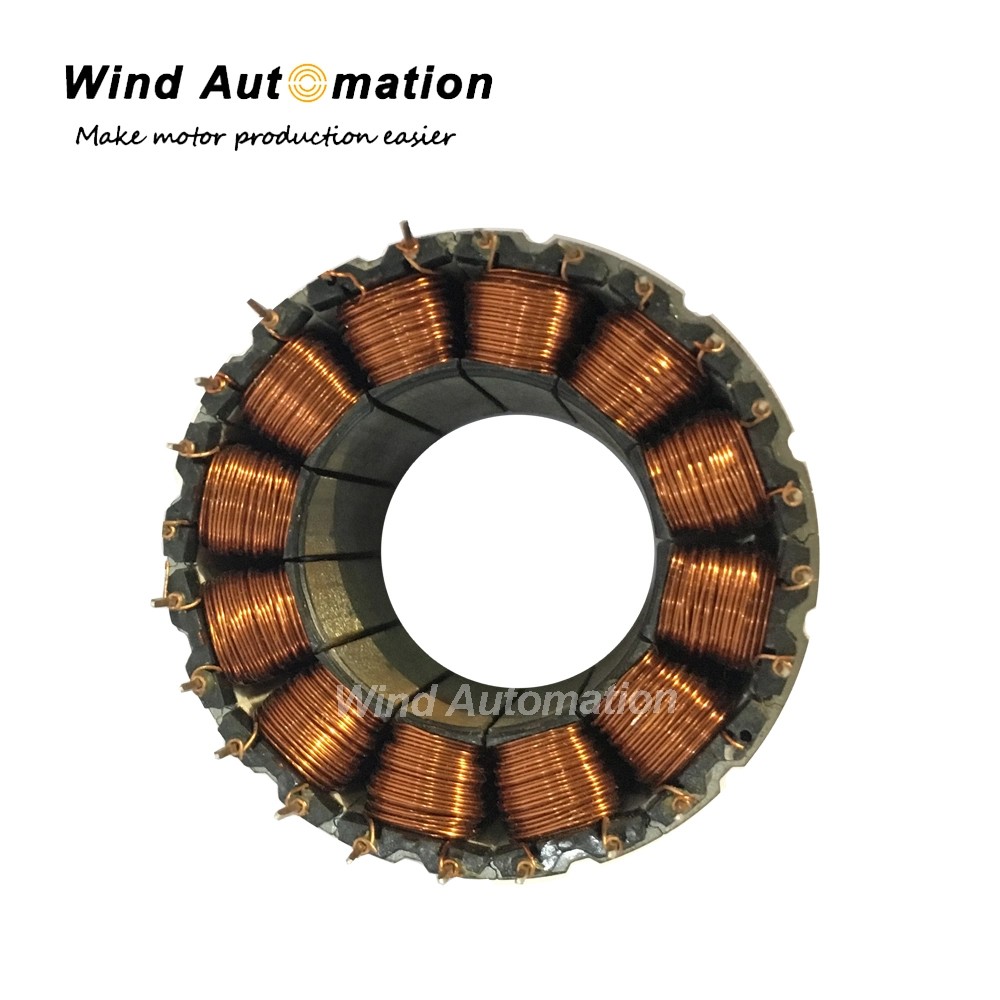

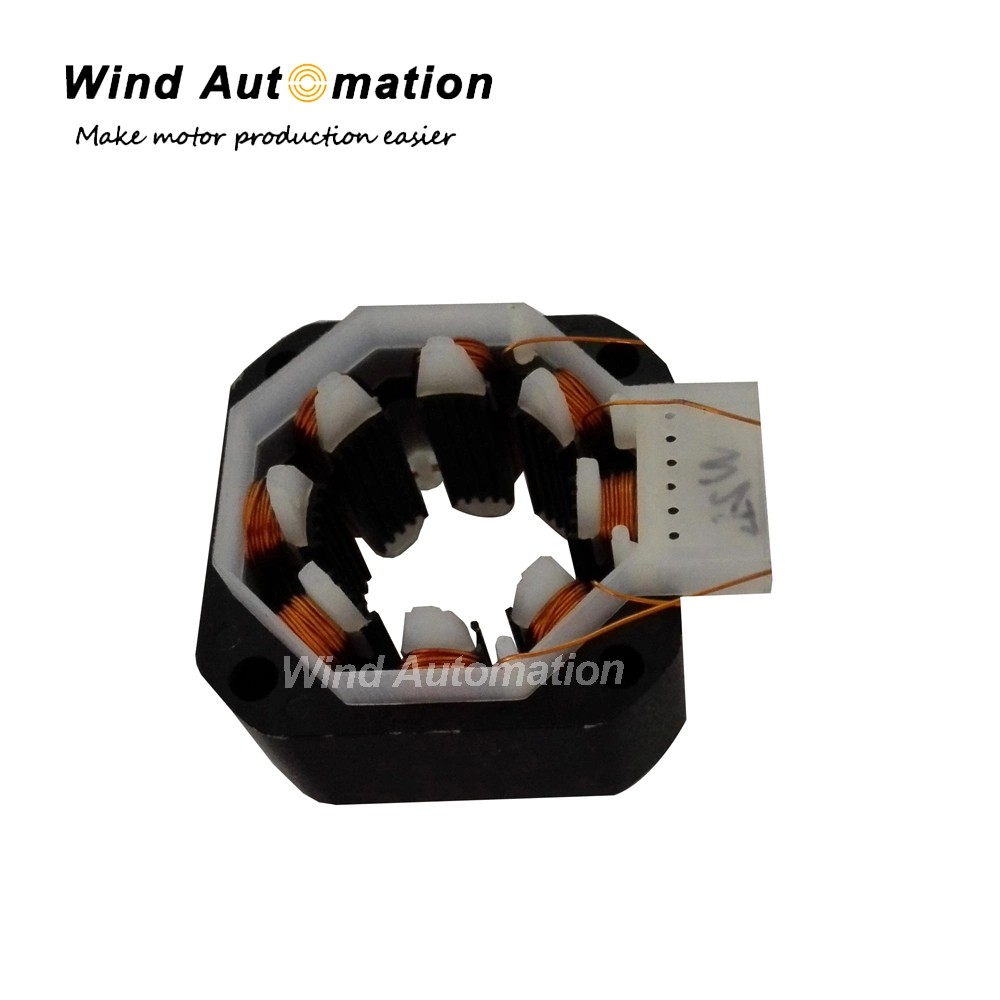

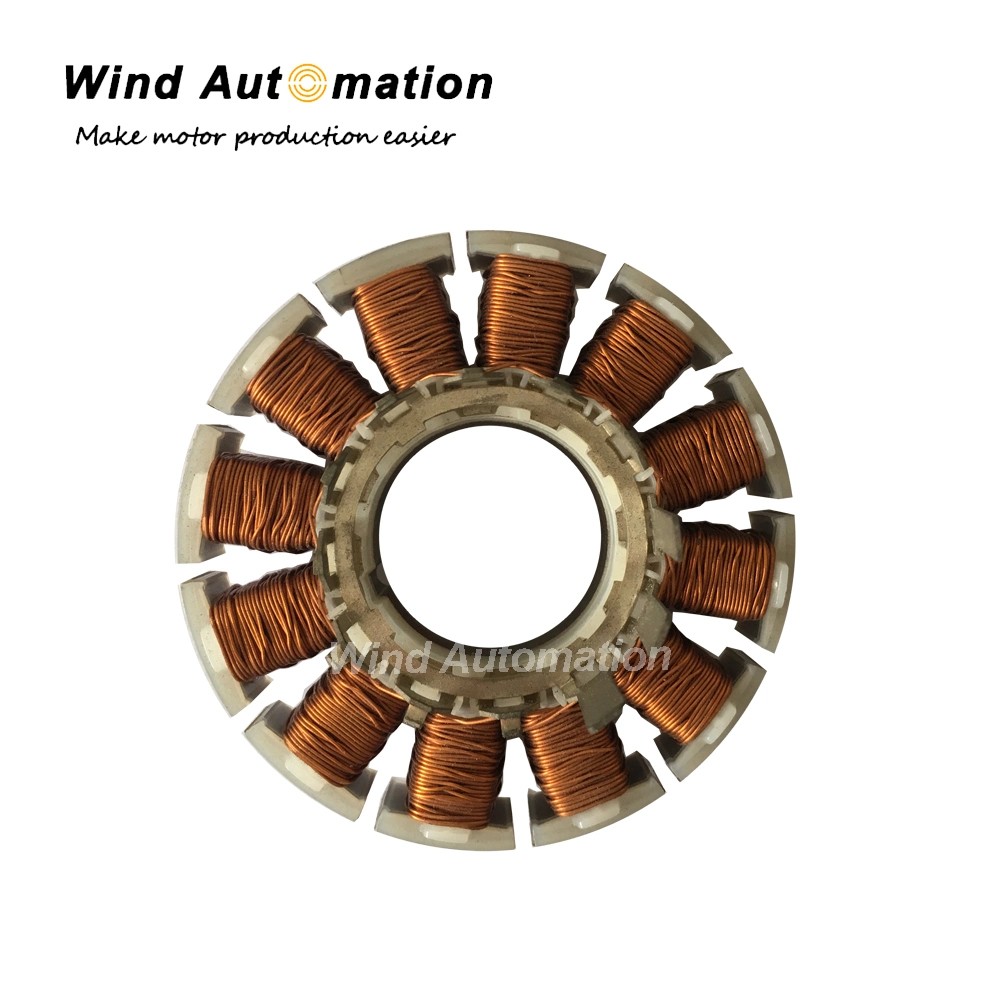

Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.

(3)Features
Fully programmable operation
High speed needle winding
Precision performance of needle winding
Quick change-over of tooling

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
