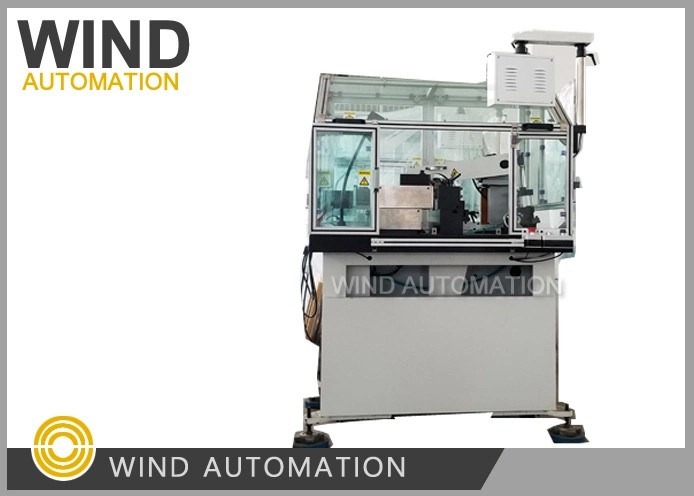

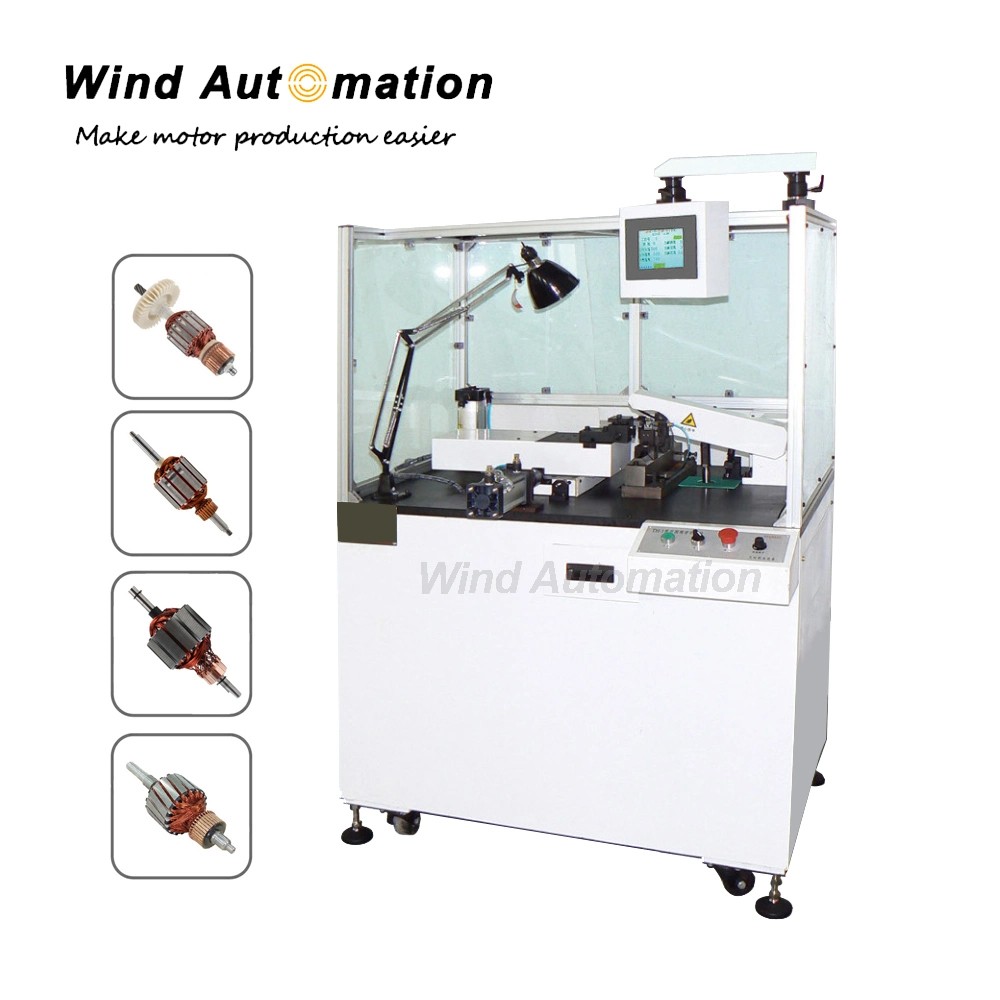

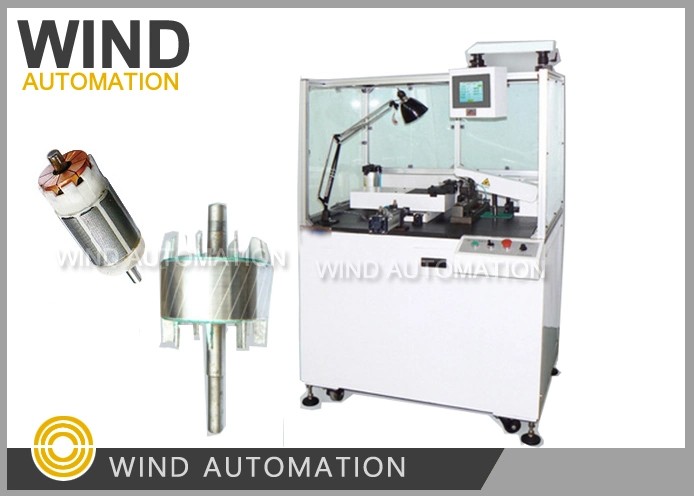

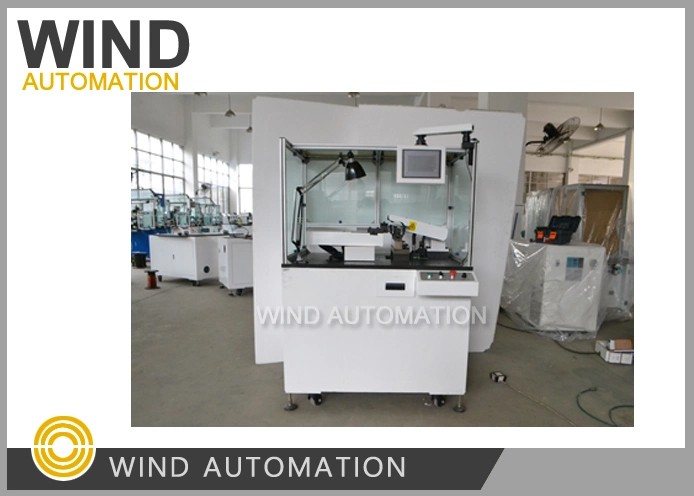

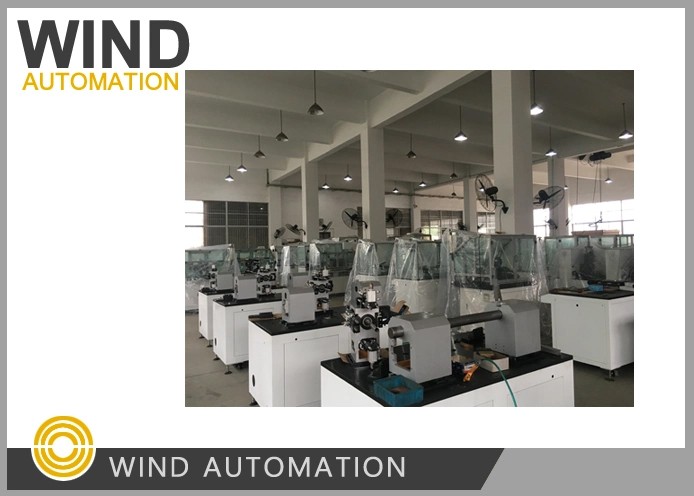

Armature Collector/ Commutator Lathing Machine

Armature Collector/ Commutator Lathing Machine

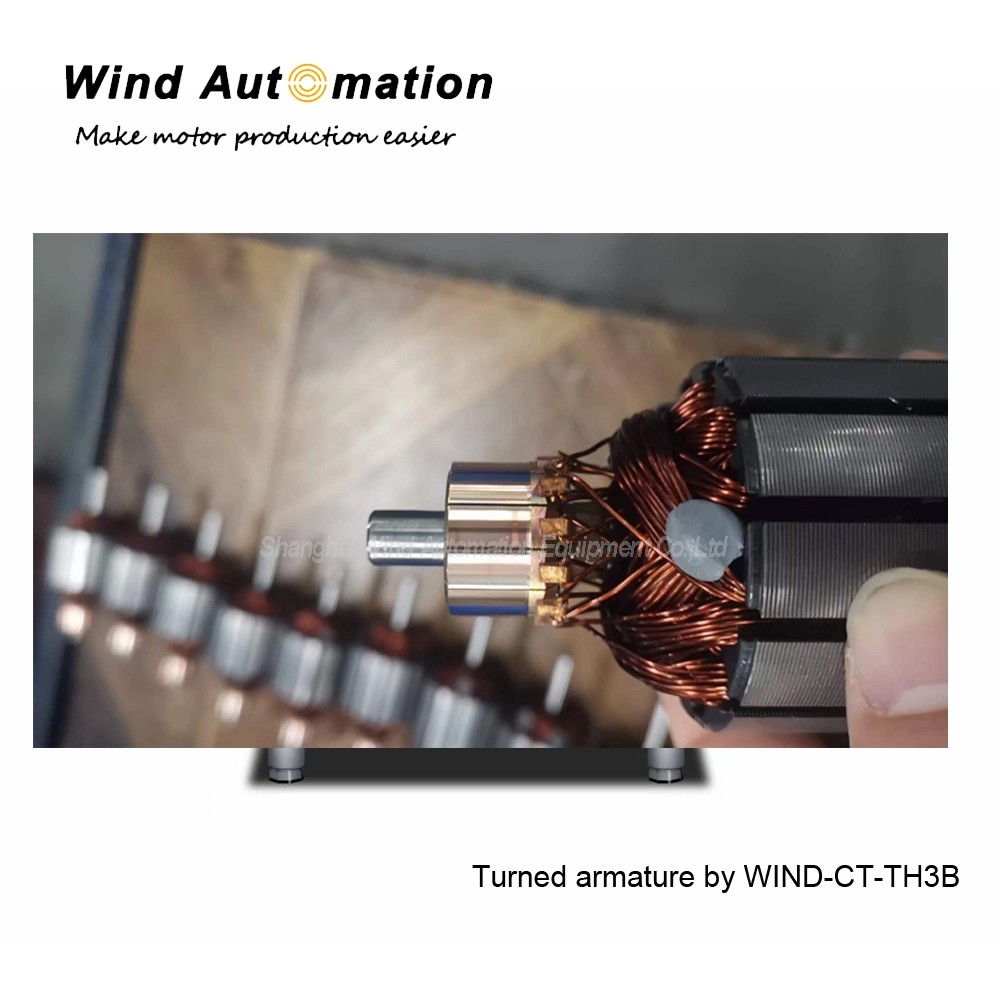

Comparing to alloy CNC turning tool (carbide), turning machine's diamond tool is advanced, diamond turning tool is what most Chinese motor manufacturers are using as diamond tool can achieve better shining and micro finish after lathing and turning the copper surface alloy CNC turning tool carbide is only suitable for aluminum iron alloy surface product turning.

(1) Specifications

Rotor OD	20~100mm
Spindle OD	3~22mm
Commutator OD	4.3~50mm
Shaft length	32~250mm
Surface roughness	<=Ra0.40
Roundness	<=0.003mm
Turning capability	rough turning Max0.20mm diameter
Speed amplitude modulation	0-60Hz
Feeding unit	1μm-0.5mm arbitrary
Cutting length	Max80mm
Feeding speed	Stepless adjustable
Control mode	Stepping, automatic
Operation method	Touch screen operation
Air source	5-7kg/cm²
Turning times	1-4 Any setting
Fixture	Diamond V-shaped Frame
Power	2.5KW
Input Power Source	AC220V 50/60Hz
Weight	about 500Kg
Dimension	1100×850×1800mm³

(2)Application
This machine is suitable for any type of commutator of starter rotors, automotive car motor.

(3) Features
Sophisticated technology, appealing design and excellent performance
Servo control the turning
High efficiency and strong reliability
With diamond turning tool
Quick and easy readjustment for other types of armatures
Precise control of the cutting process
Fully automatic turning cycle after loading of the armature

Armature Collector/ Commutator Lathing Machine
