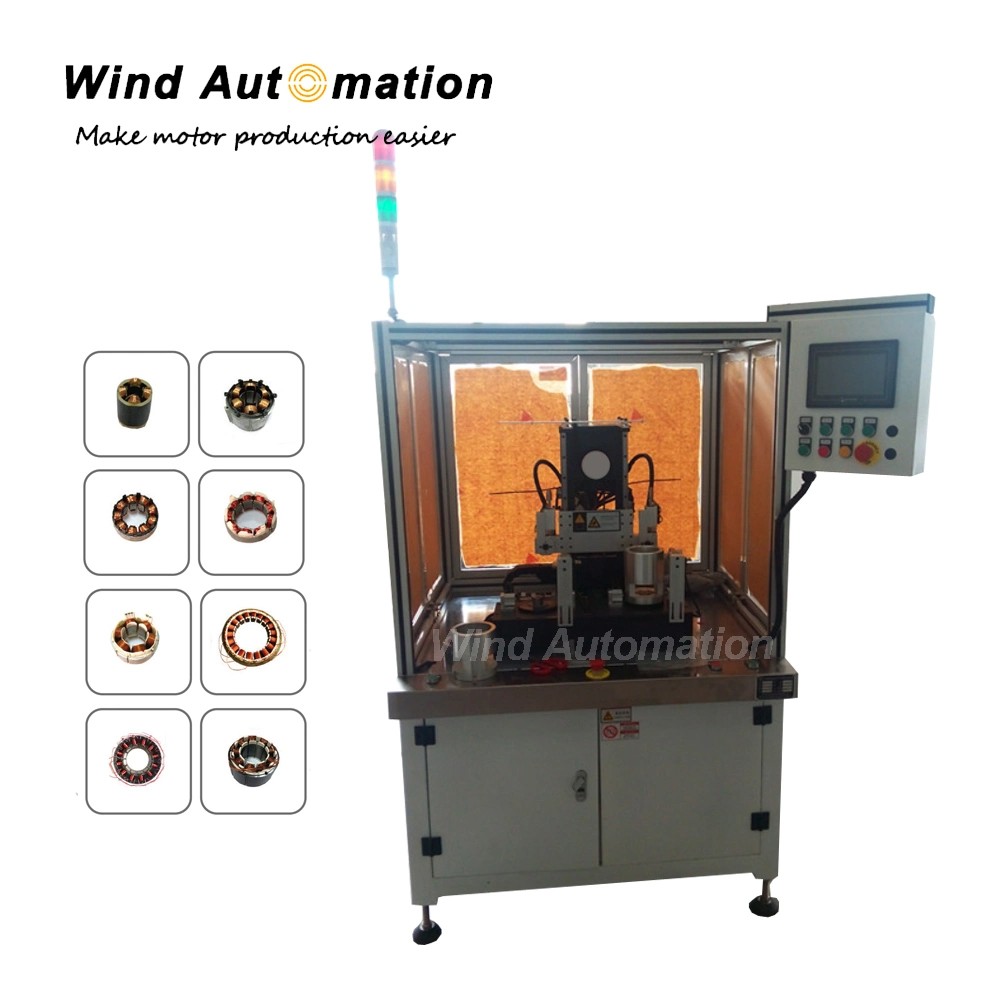

Fan Motor BLDC Motor Stator Automatic Inslot Coil Winding Machine

This inslot coil winding machine is suitable for fan motor, brushless motor stator to do coil winding. Machine can wind stators with wire range within 0.1 to 1.2mm. The adoption of a moudle tooling design saves lots of time during tooling change.

(1) Features
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service4 servo control spindle
Moudle tooling design
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding

(2) Specification

(3) Application

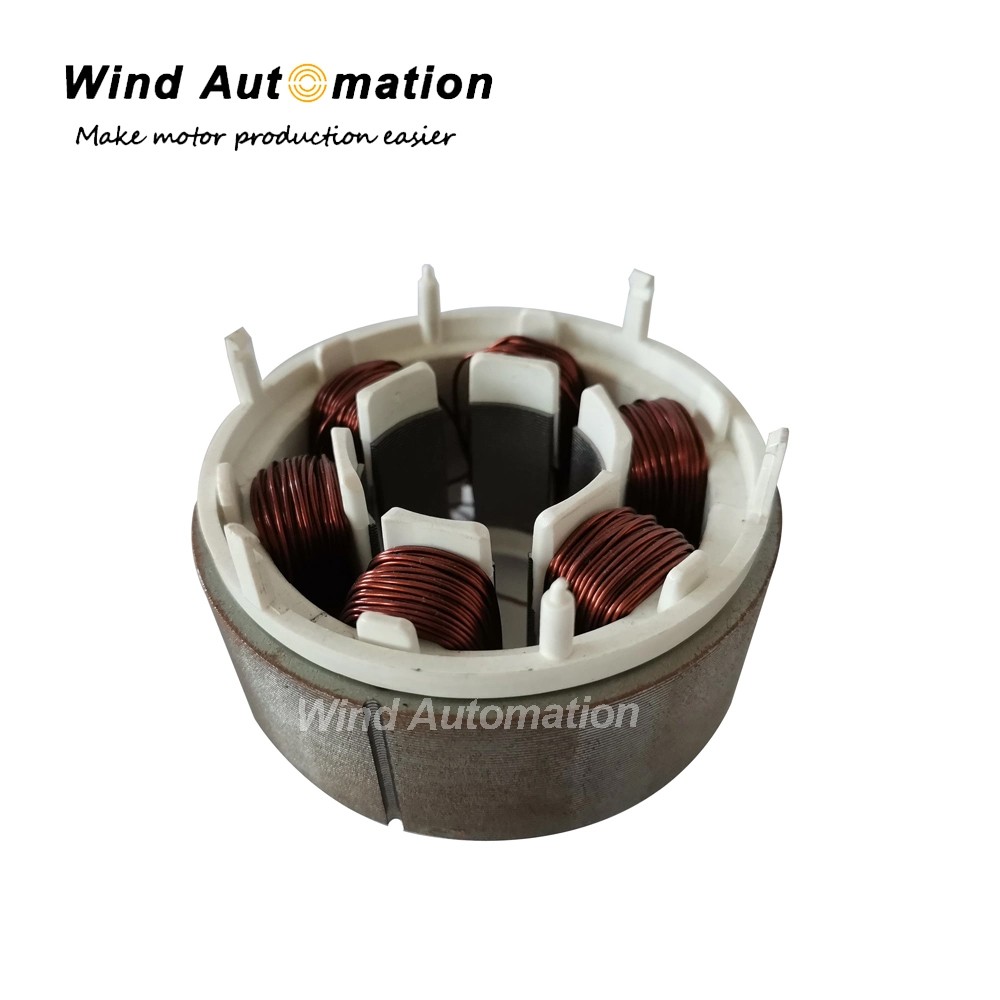

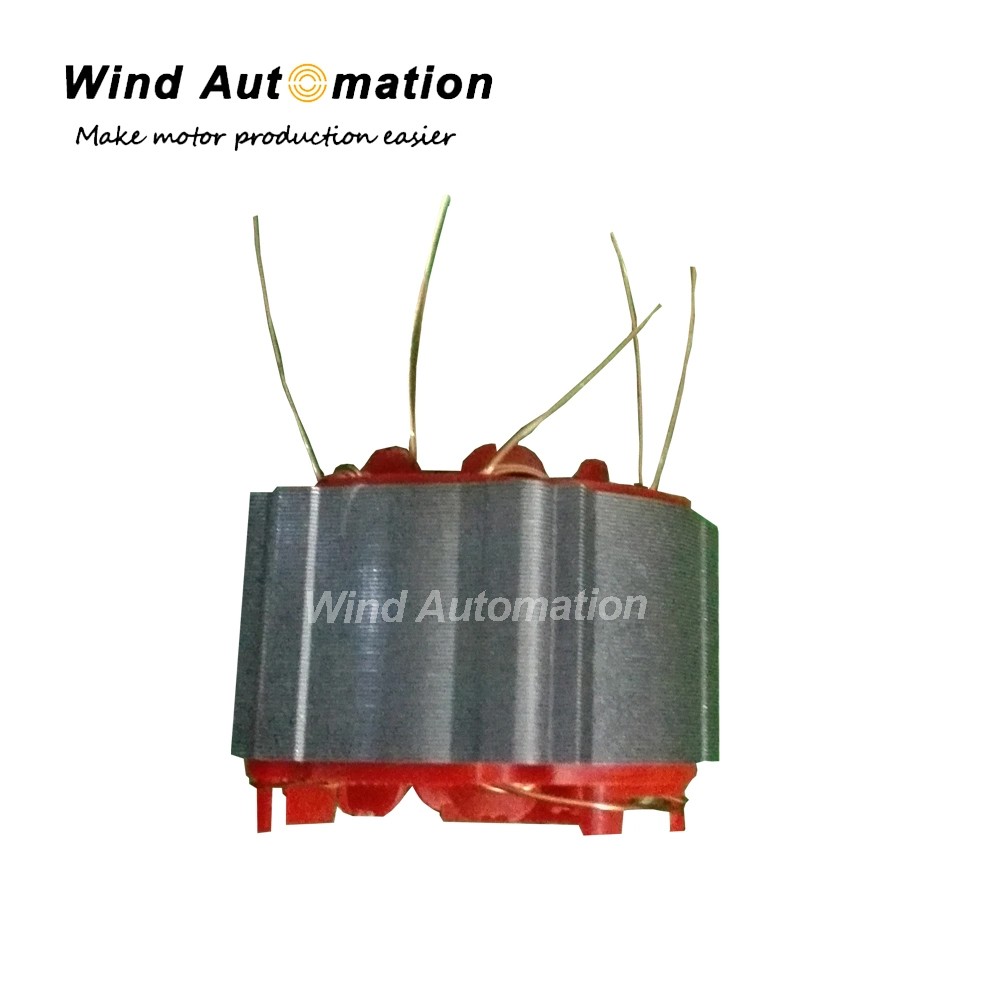

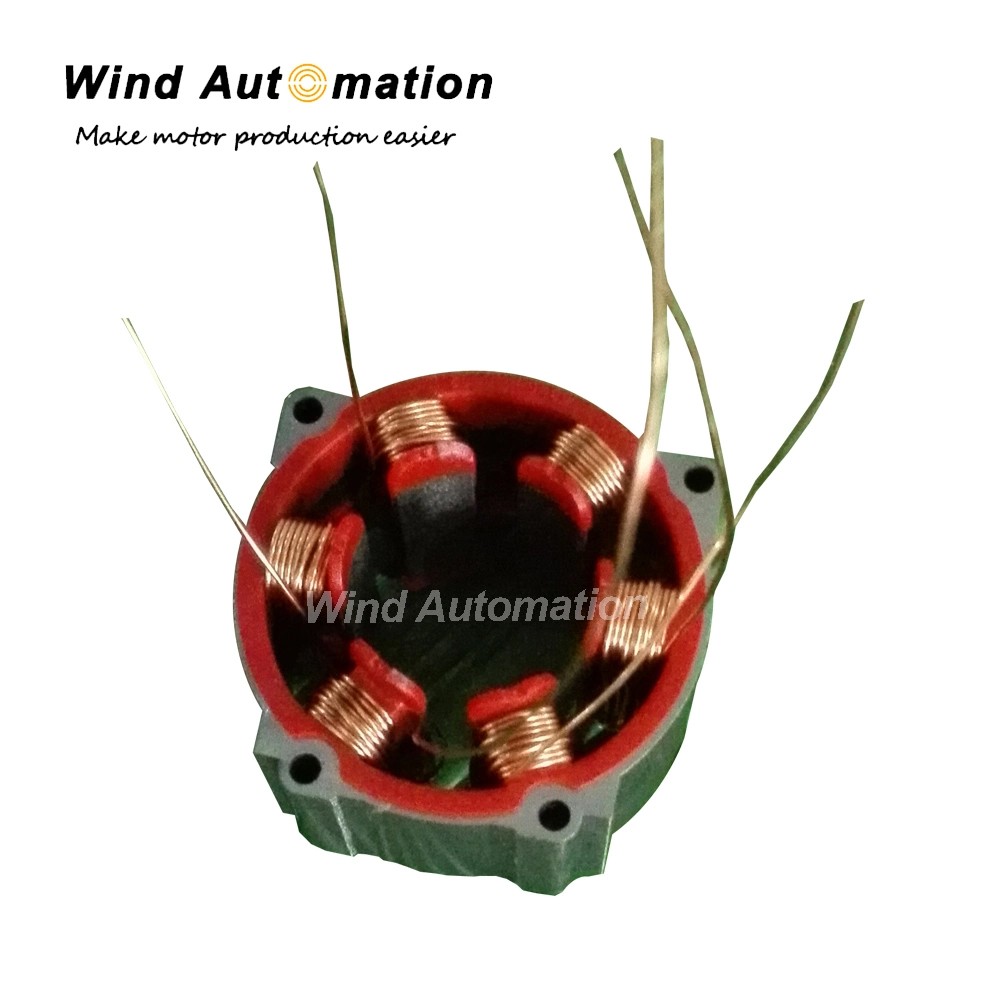

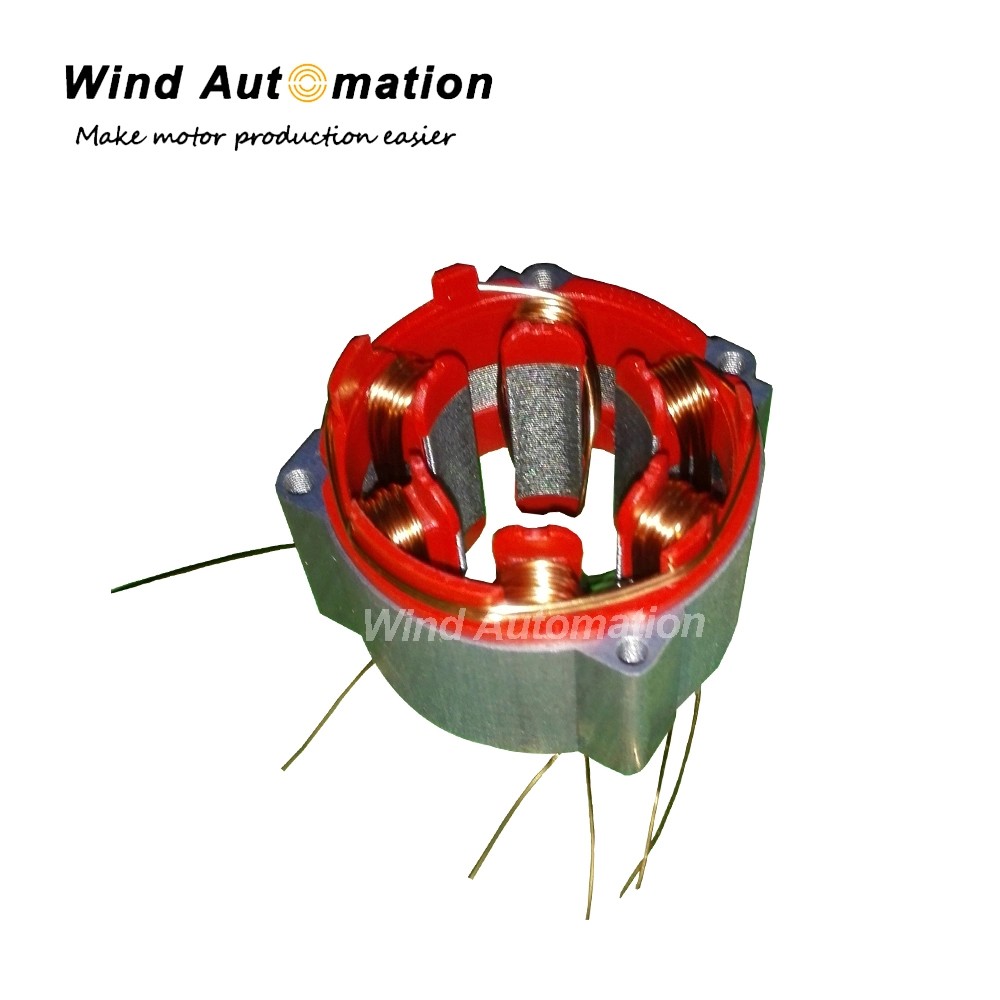

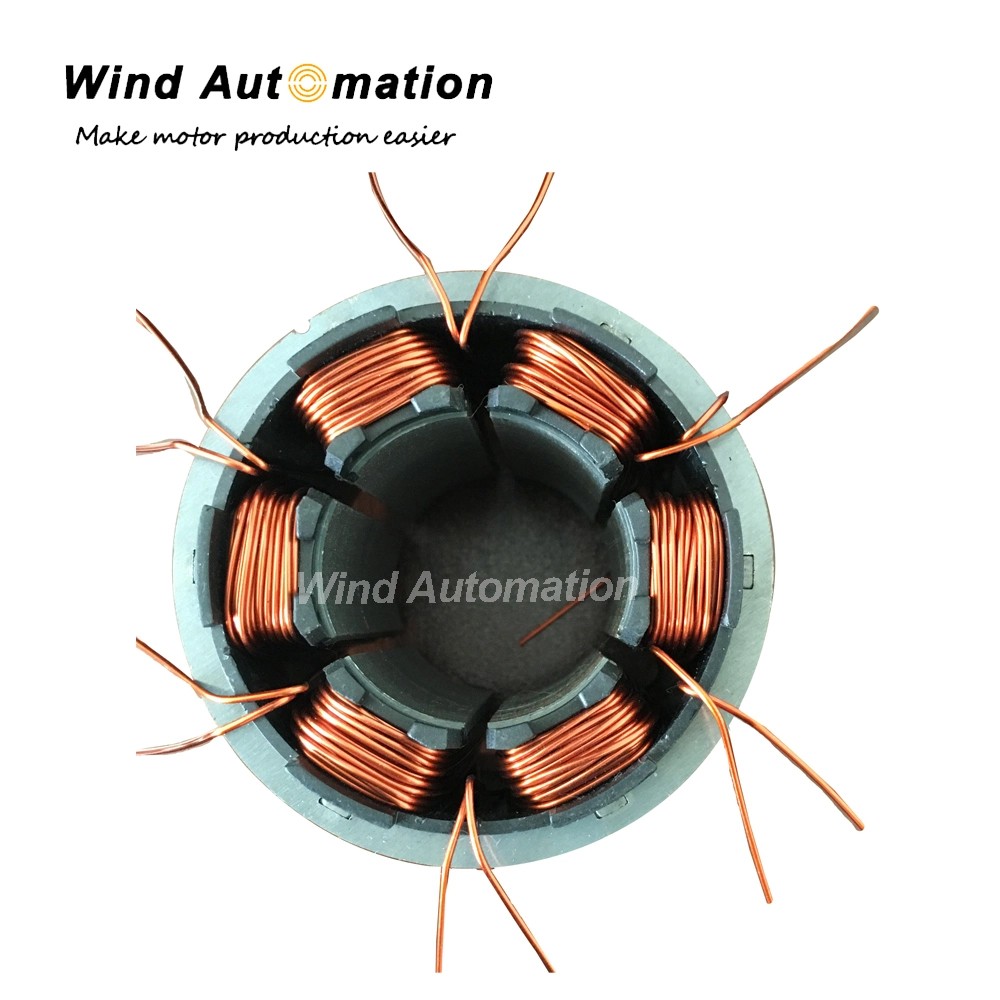

It is suitable for fan motor stator, brushless motors.

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.
