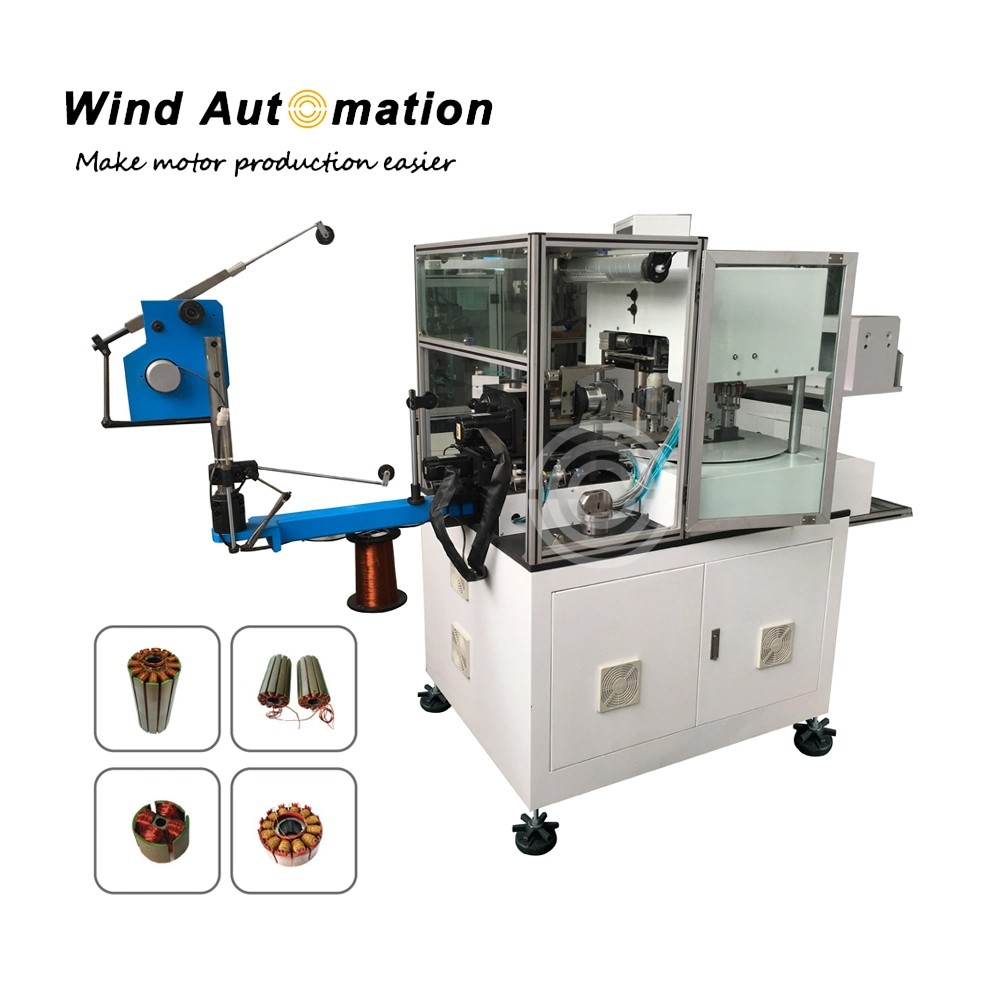

Ceiling Fan Stator Coil Winding Machine
This ceiling fan winding machine is fully automatic, winding, arraying, indexing are all done by machine. Two winding stations ensures two coils can be wound at the same time.
(1) Specification
| Wire diameter | 0.05~0.45mm |
| Stator O.D | 10~163mm |
| Slot number | ≤24 slots |
| Stack height | 6~30mm |
| RPM | Max 2500RPM |
| Voltage | 220v/50Hz |
| Power | 1.5 KW |
| Weight | 435Kg |
| Dimension | 1350X630X1130mm |
(2) Application

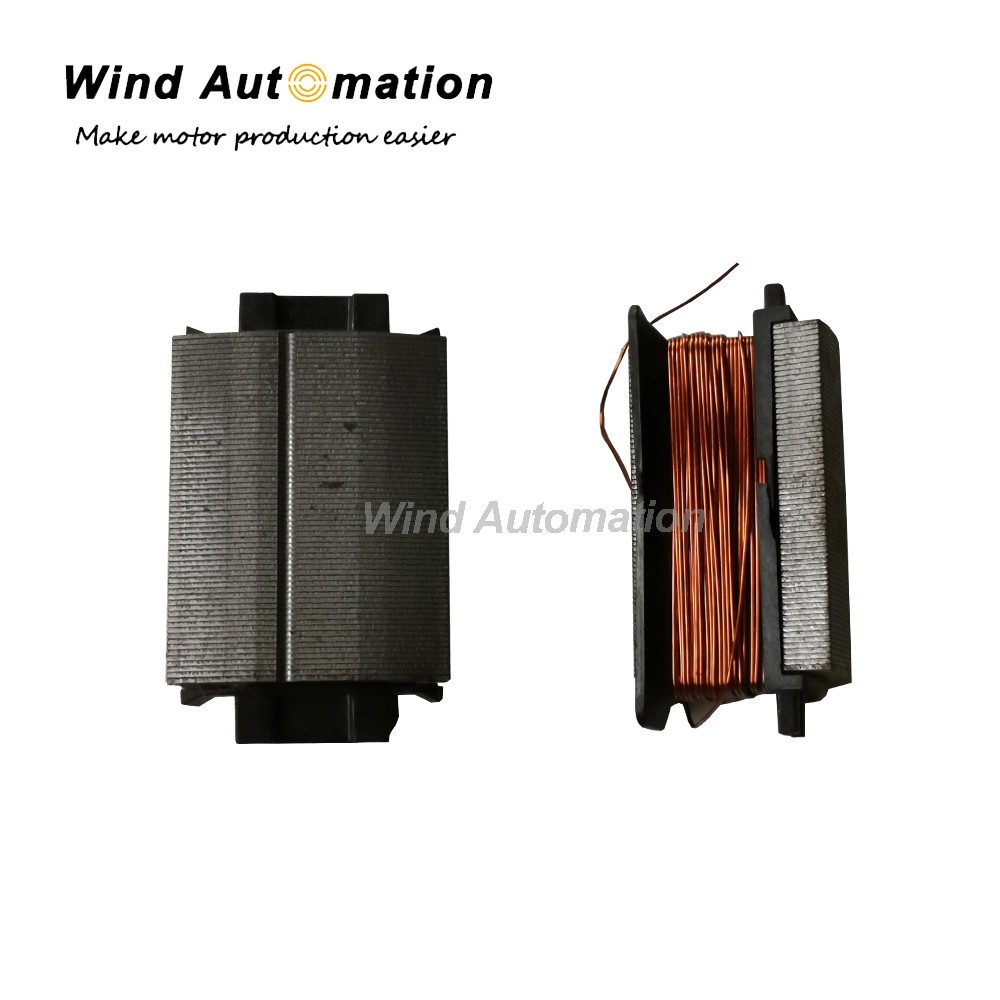

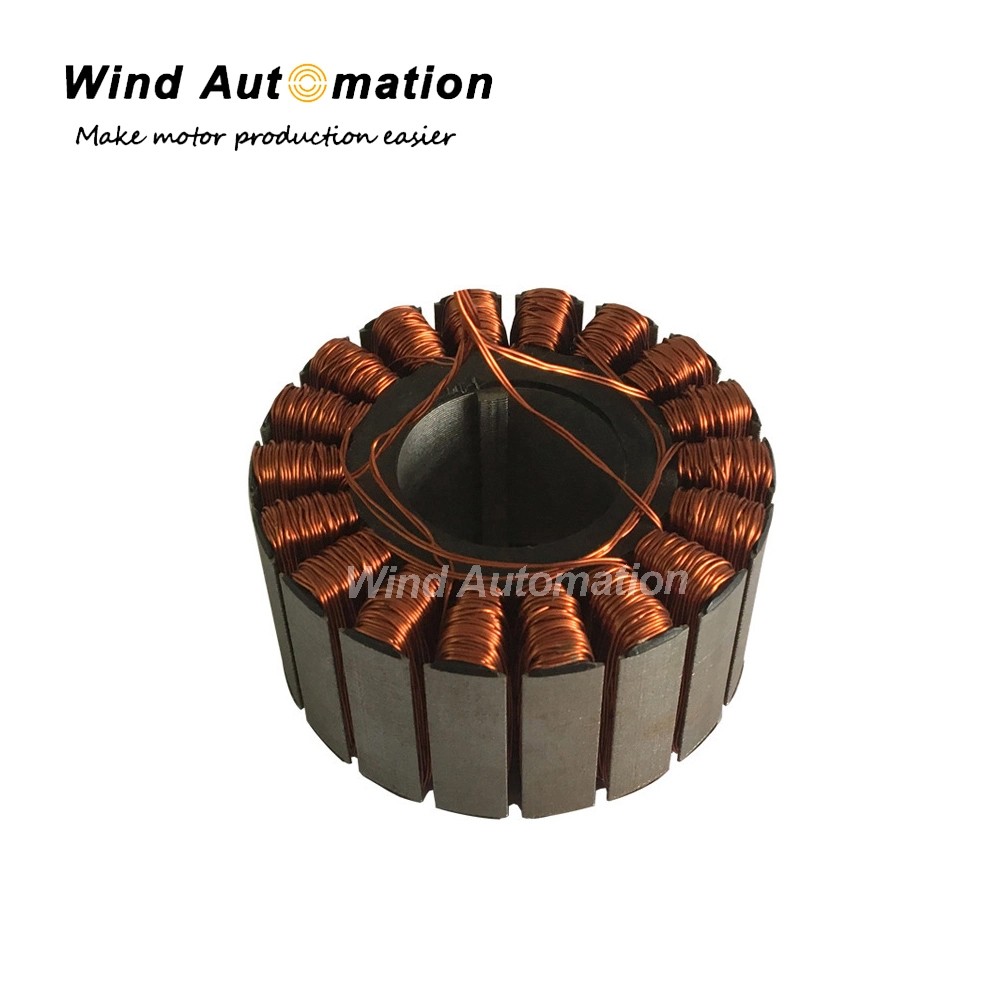

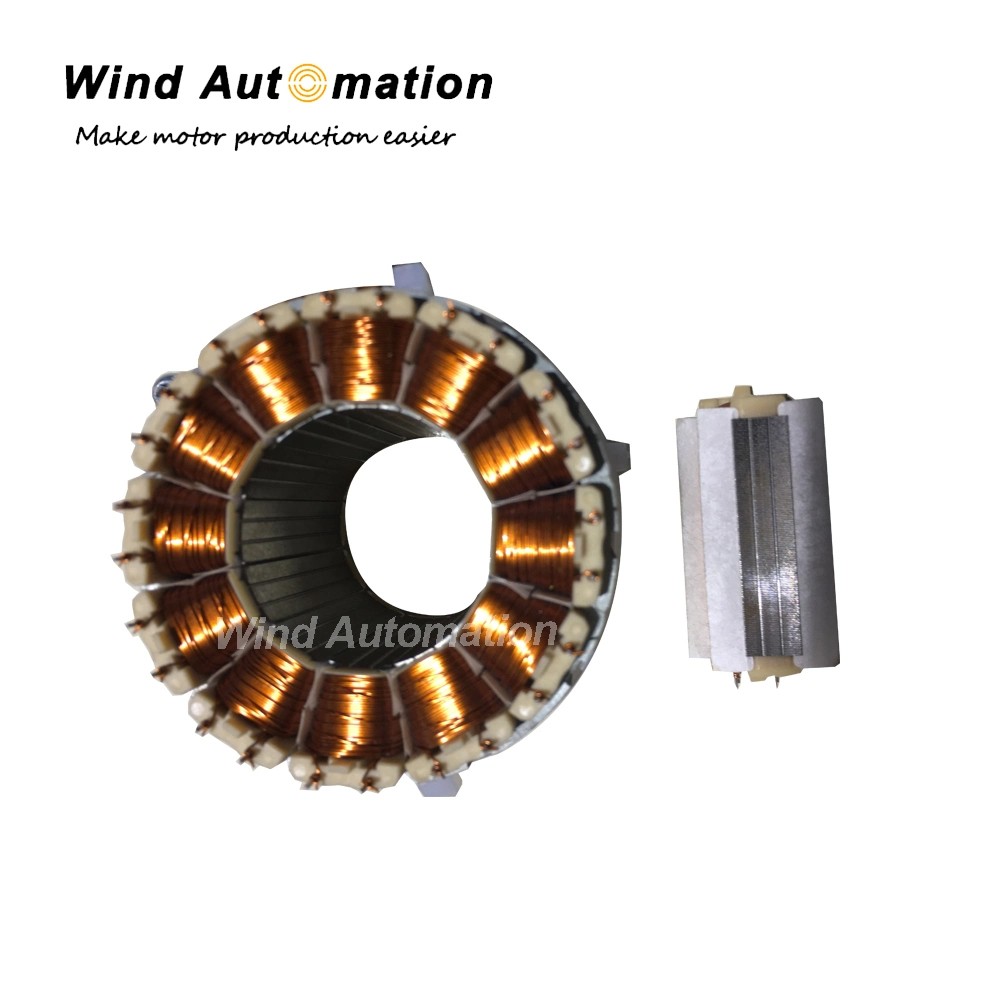

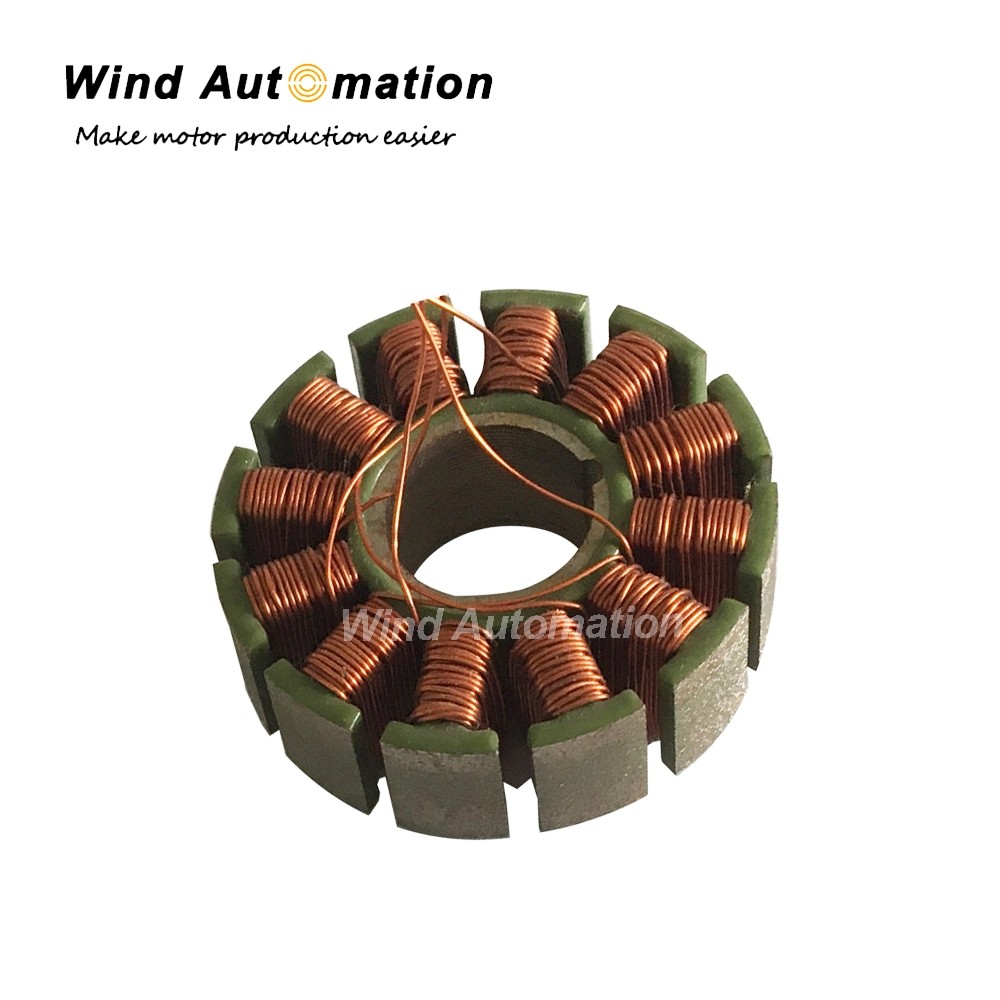

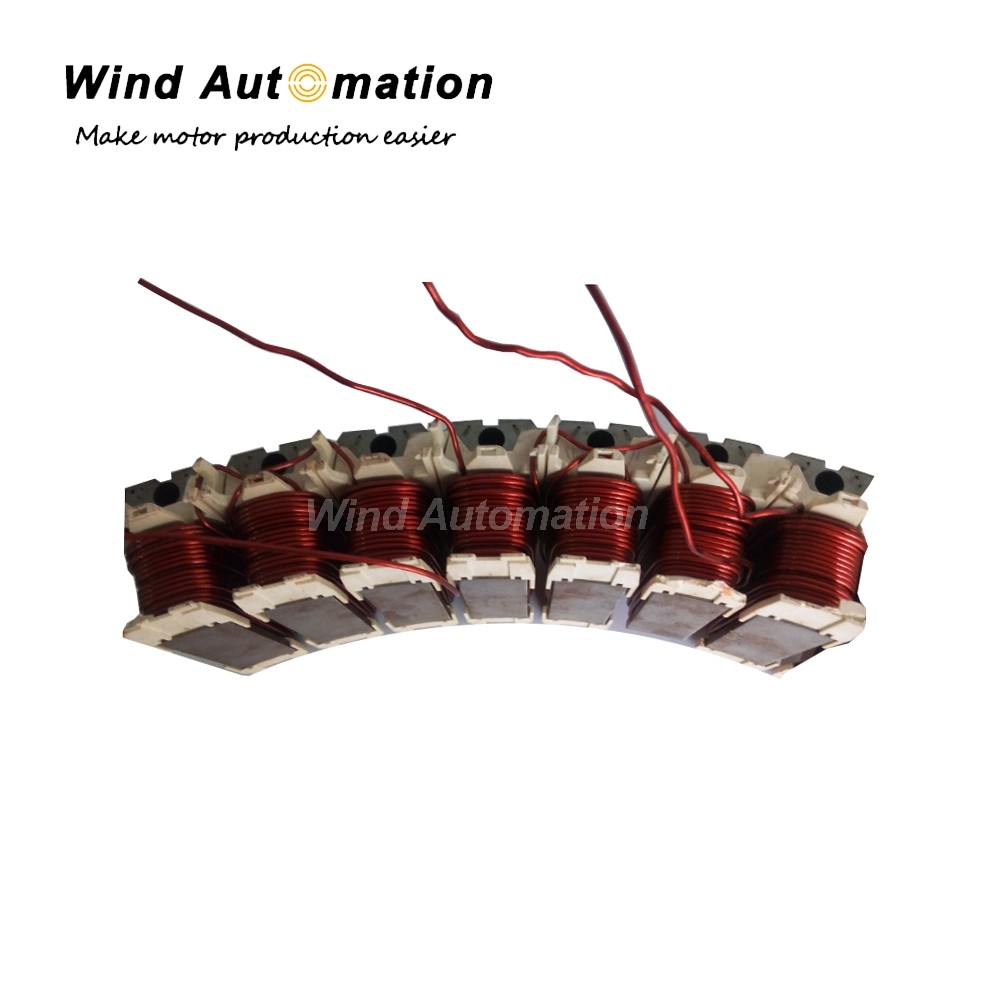

This ceiling fan coil winding machine is capable of producing coils for frequency conversion alternator and generator stator.
(3) Features
Two winding stations
Micro computer controlled operation
Wire arraying and indexing controlled by stepping motor
Winding controlled by frequency converting motor
