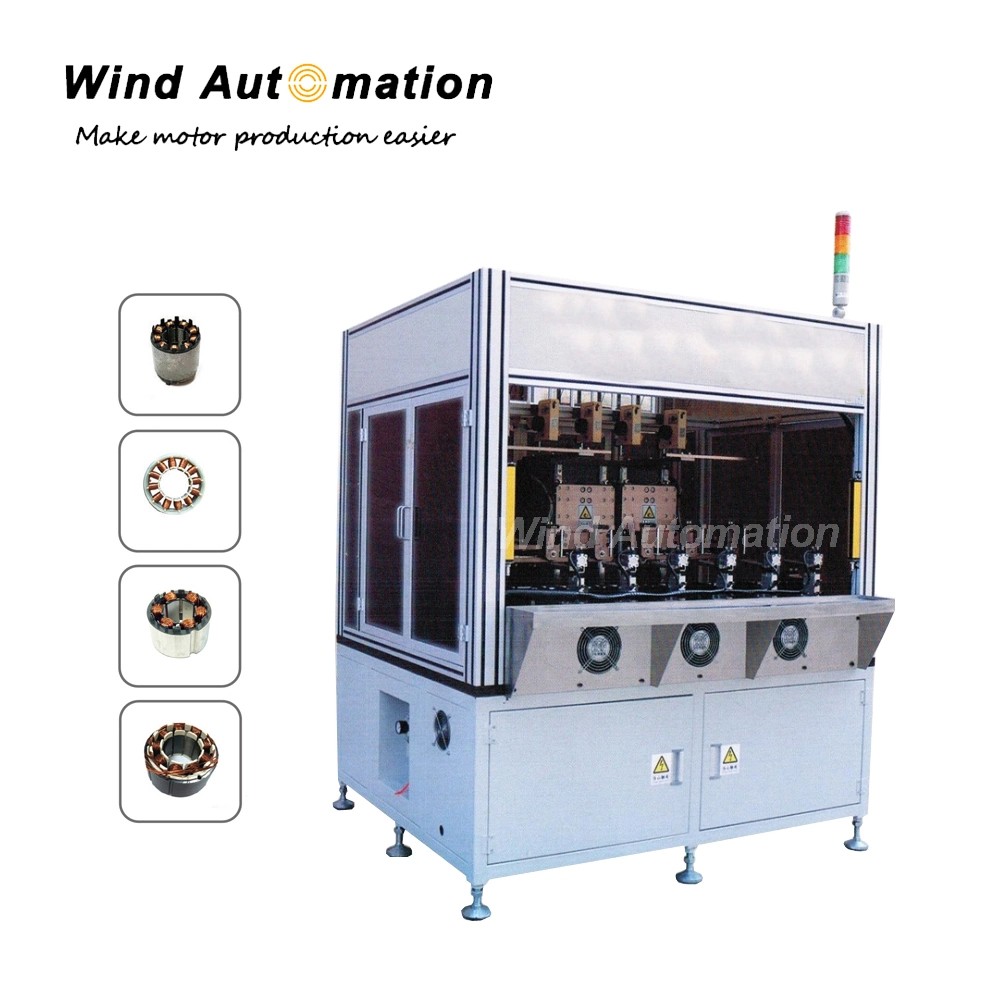

6 Working Stations BLDC Motor Needle Winding Machine
With 6 working stations, this BLDC motor winding machine can do high speed winding of 6 stators synchronously. Its winding speed is up to 1000r/min. Precise needle winding, high efficiency and wide slot range makes this machine a perfect choice for mass production.
(1)Specification
| Working station | 6 |
| Stator OD | 20~120mm |
| Stator ID | 12~80mm |
| Stack length | 5~80mm |
| Wire diameter | 0.08~1.0mm |
| Spindle spacing | 200mm |
| Spindle speed | Up to 1000r/min |
| Drive servo | 5000W 1 set |
| Indexing servo | 3000W 6 sets |
| Arraying servo | 750W 2 sets |
| Air source | 6 kg/cm3 |
| Power supply | 380V 50HZ 15A |
| Dimension | 1400x1300x1670mm |
| Weight | 950KG |
(2) Application

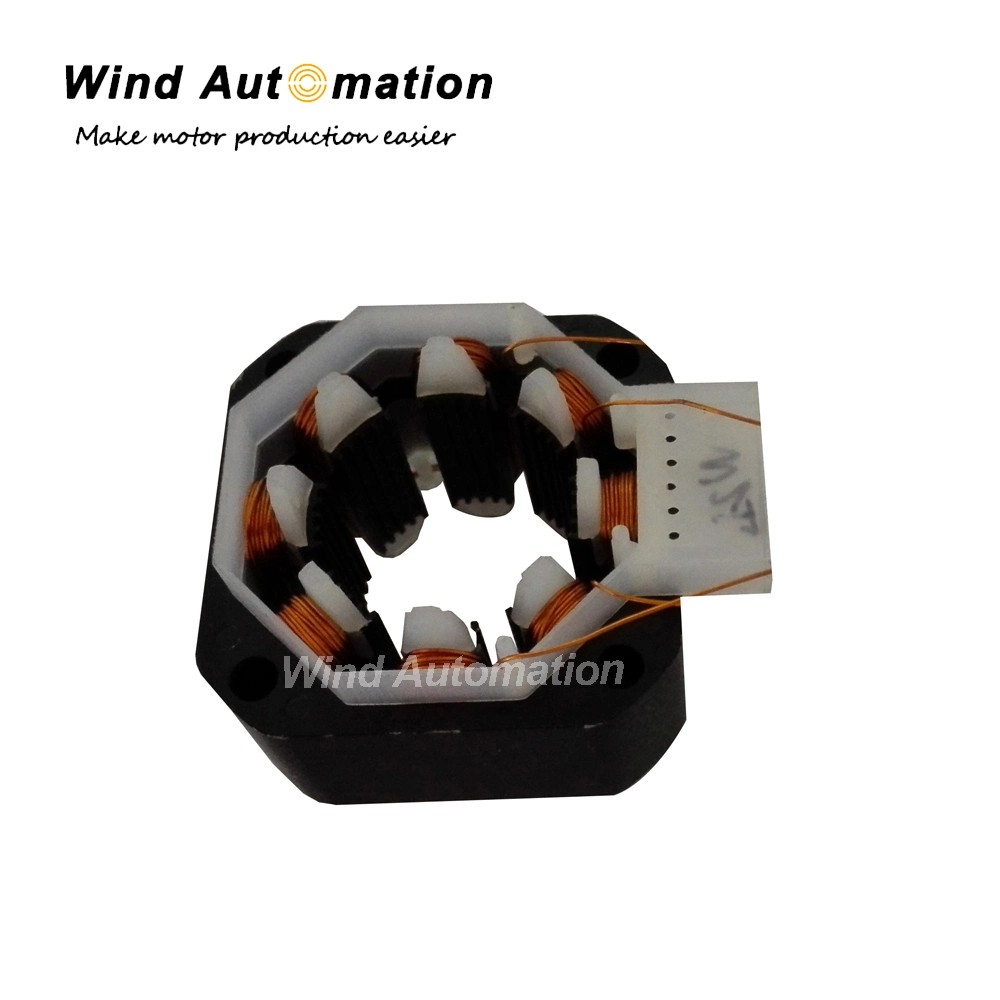

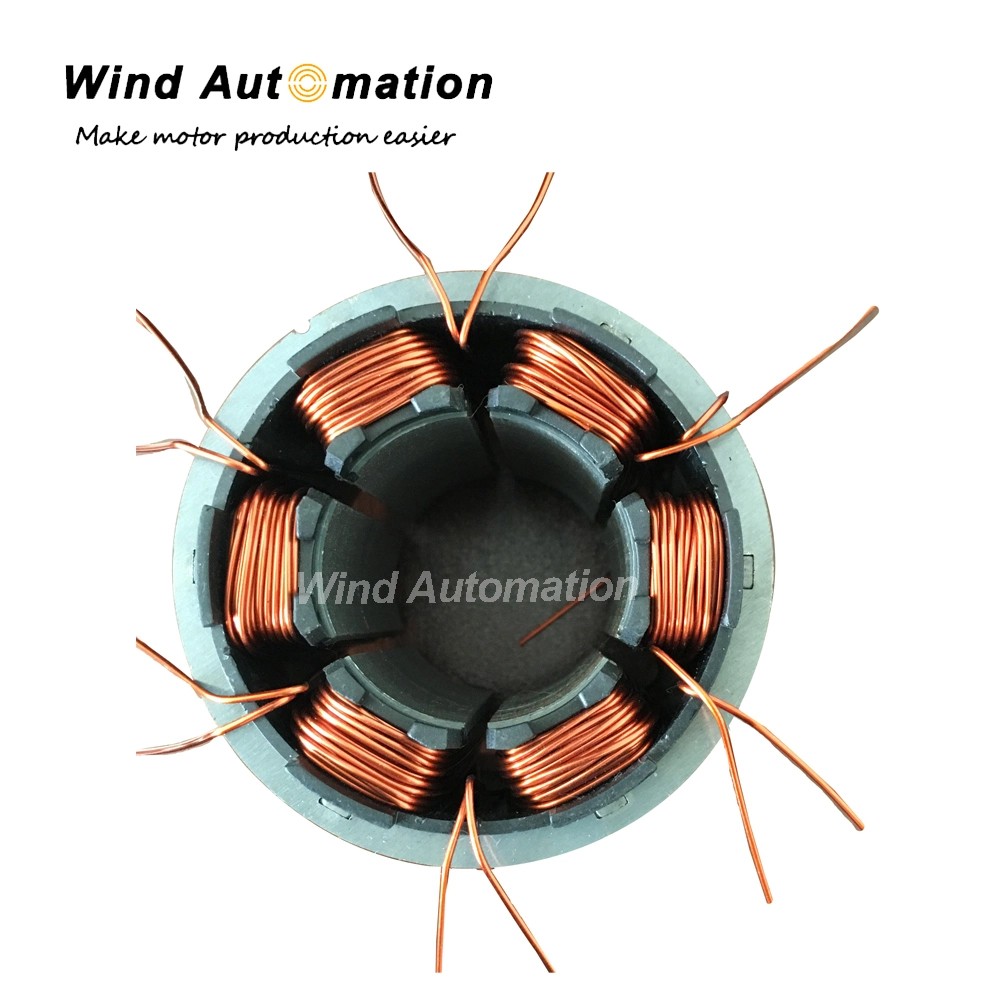

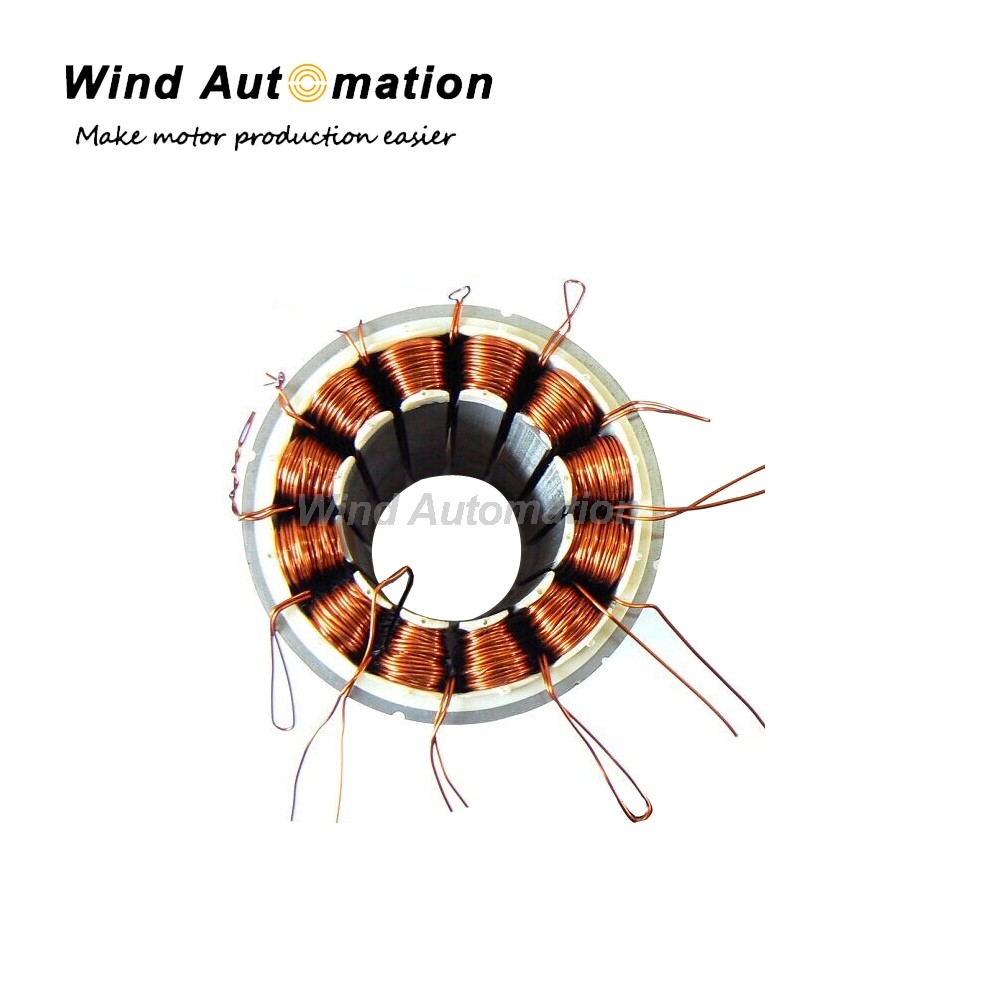

It is suitable for brushless motors,rotary transformers, sensors, industrial fans, pump motors, servo motors, stepper motors.
(3)Features
6 working stations to do synchronous winding
Wide stator slot range, up to 36 slots
No-loading speed up to 1000r/min
Precise needle winding control
High efficiency and production
Provide customized service
