Model NO.
WIND-2B-TD
Automatic
Automatic
Transport Package
Wooden Case
Specification
Middle Size
Trademark
Wind Automation
Origin
China
HS Code
8479811000
Production Capacity
100 Sets/Year

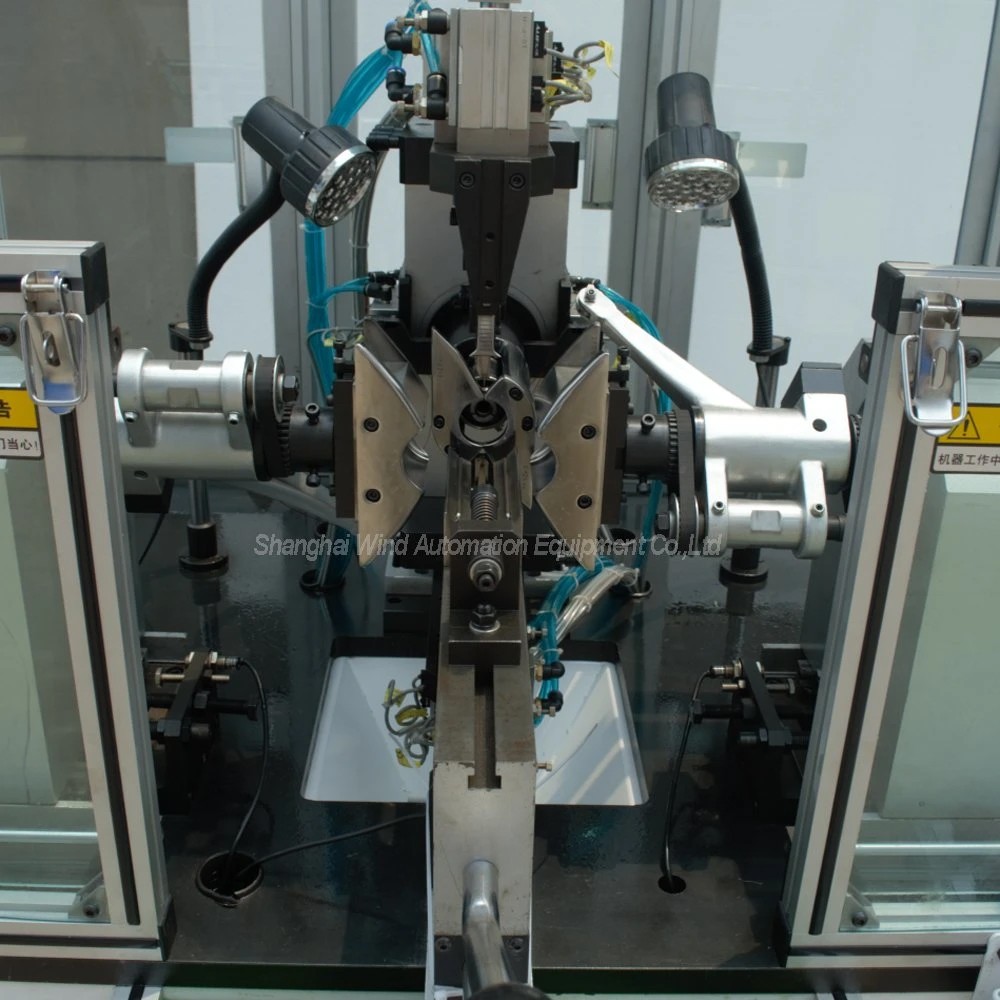

Armature Winder Rotor Slot Coil Winding Machinery
This machine is suitable for slotted armature with OD within 20~90mm.
Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature
Specification
| Wire range | 0.2~1.2mm |
| Armature OD | 20~90mm |
| Stack height | 10~130mm |
| Commutator OD | 8~60mm |
| Movement | Jog/auto |
| Slot No. | Odd/Even |
| Turn No. | 0~9999 |
| Flyer speed | 0~2000rpm |
| Power supply | AC 220V 50/60HZ |
| Air source | 5~7kg/cm3 |
| Power | 3.5KW |
| Weight | 830KG |
| Dimension | 1530x1280x1650mm |
Feature
For riser type commutator
With medium and big wire diameter
Manual loading and unloading
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen
Application
This machine is suitable for slotted type armature with riser type commutator.
