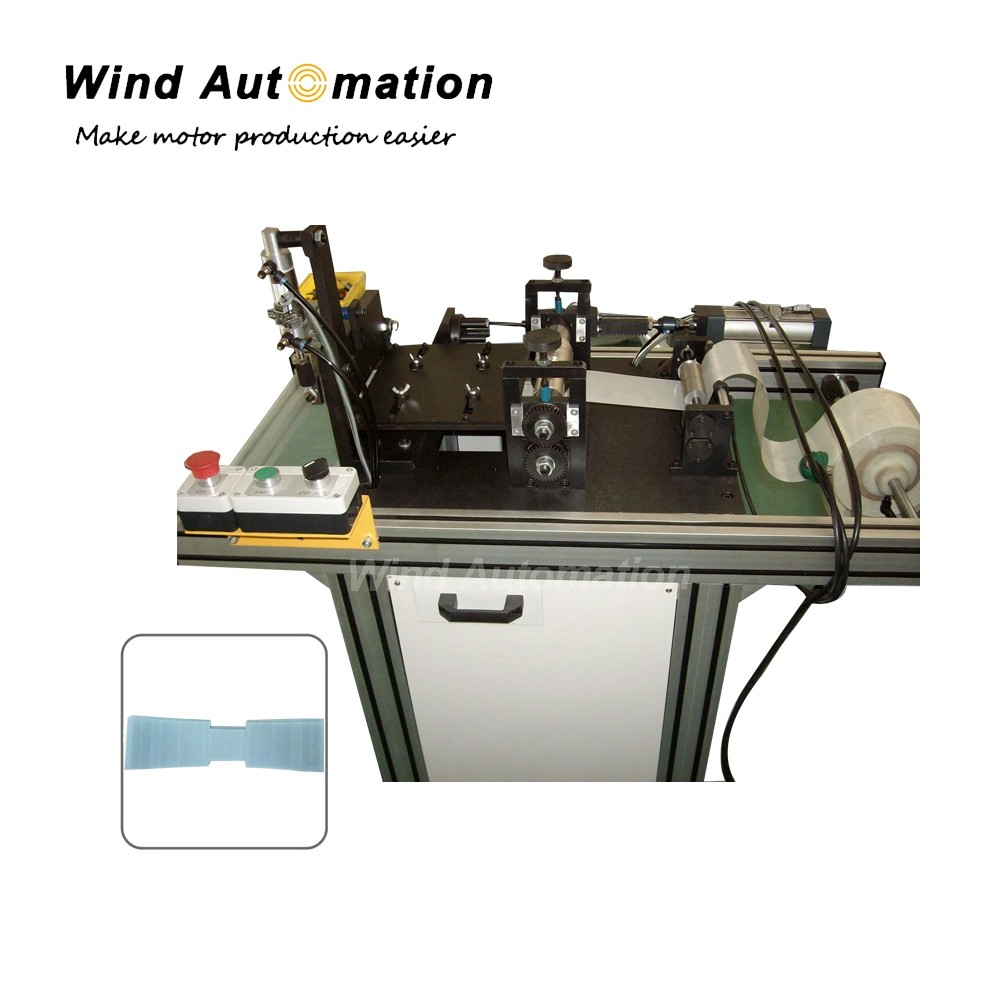

Shaded Stator Slot Insulation Paper Forming and Cutting Machine
This machine is suitable for various 2 poles stator to do insulation paper forming and cutting. Paper insertion process should be done manually.
(1)Specification
| Stator OD | 50~95mm |
| Stator ID | 30~55 mm |
| Stack length | 5~80mm |
| Paper width | Max 130mm |
| Paper thickness | Max 1mm |
| Productivity | 4s/pc |
| Air pressure | 0.4~0.7Mpa |
| Machine dimension | 490x790x1200mm |
| Machine weight | 110Kg |
(2)Application
Suitable for two-poles series motor, shaded pole motor, power tool motor stator
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
