4-Slots-BLDC-Motor-Stator-Shroud-Coil-Winding-Machine

Product Description

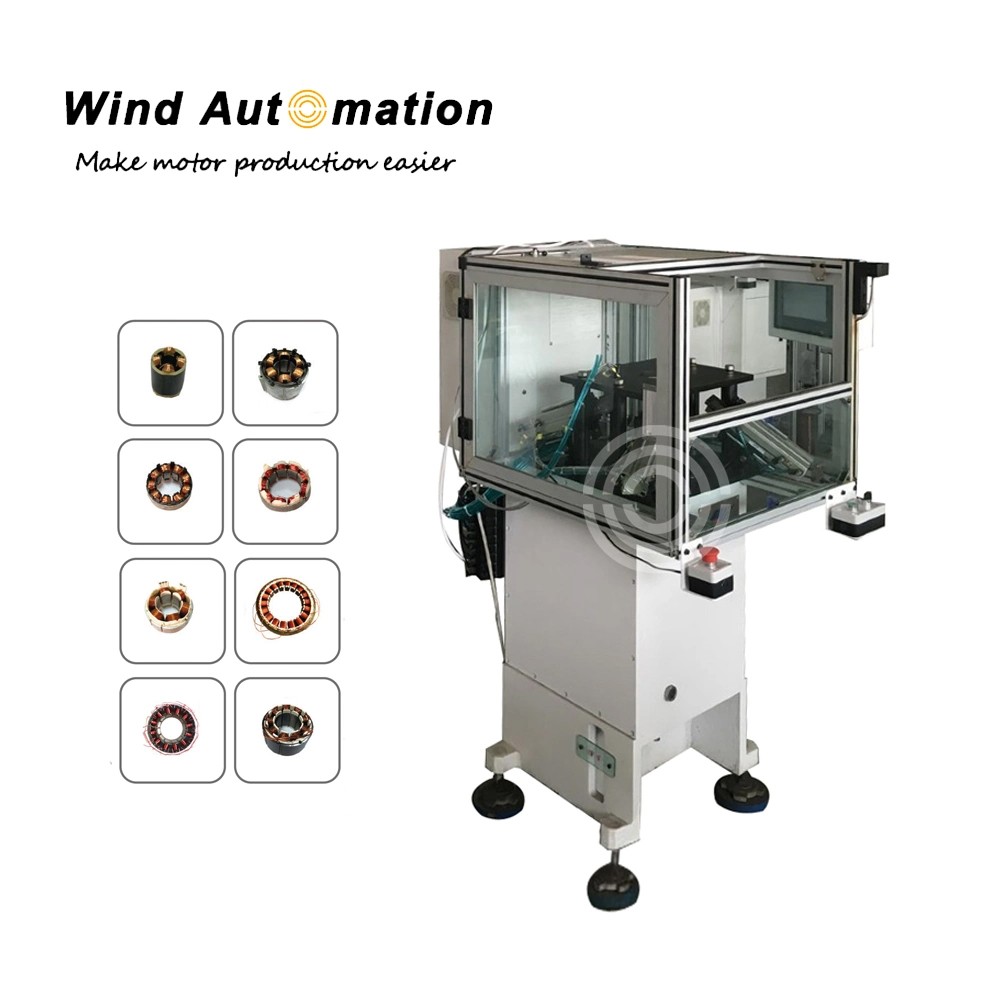

4 Slots BLDC Motor Stator Shroud Coil Winding Machine

This needle winding machine is special designed for 4 poles shaded pole motor to do winding. It can wind four poles synchronously. It takes 2min to wind one stator.

(1)Features
High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling

(2)Specification

(3)Application
Suitable for 4 poles shaded pole motor to do winding.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system
