Product Description

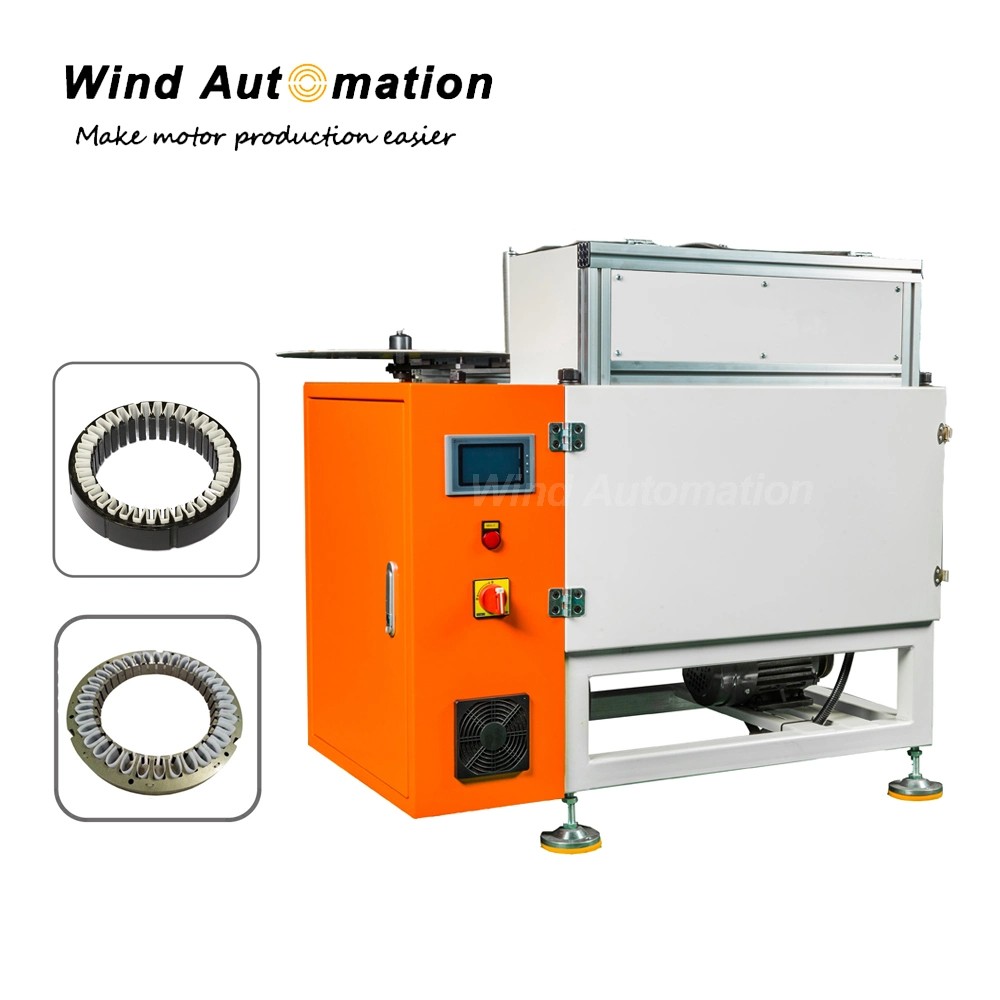

Stator Paper Inserting Machine For AC Motor

Stator Paper Inserting Machine for AC Motor

(1) Specification

Stack length20~90mm
Stator ID20~90mm
Stator ODMax 150mm
Cuff height2~4mm/4~7mm
Paper thickness0.188~0.35mm
Cycle time0.5 s/slot
Power supply380V 50/60HZ
Weight200KG
Dimension1200x650x1100mm


(2) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.

(3) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process


Stator Paper Inserting Machine for AC Motor Stator Paper Inserting Machine for AC Motor
Stator Paper Inserting Machine for AC Motor
