Shaded-Pole-Motor-Stator-Inslot-Needle-Coil-Winder

Product Description

Shaded Pole Motor Stator Inslot Needle Coil Winder

This coil winder is used to do inslot winding for shaed pole motor stator expecially for 4 poles stator. Wind Automation also provides customer with customized service, if stator beyond the specification listed blow.

(1)Specification

(2)Application

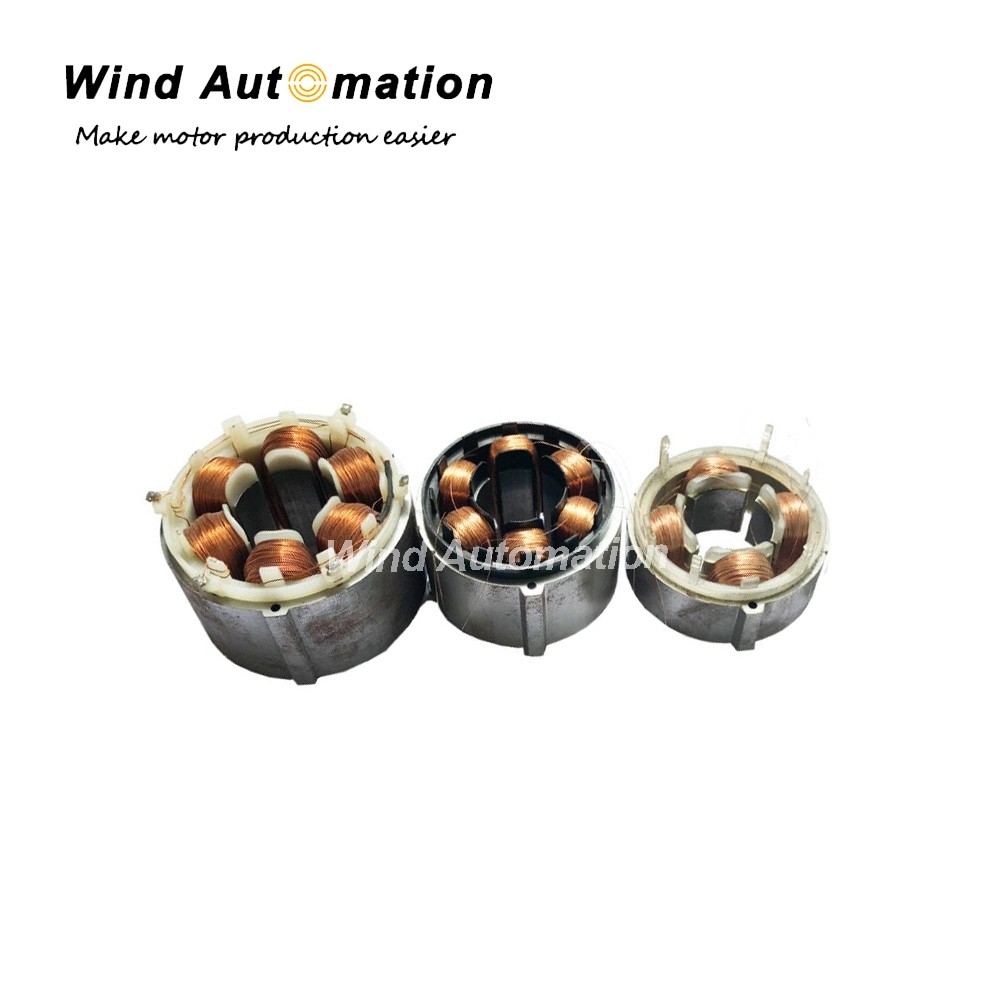

Suitable for 4 poles shaded pole motor to do winding.

(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system

(4)Features
High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling
