Horizontal-Magnetic-Pole-Core-Stacking-Machine

Product Description

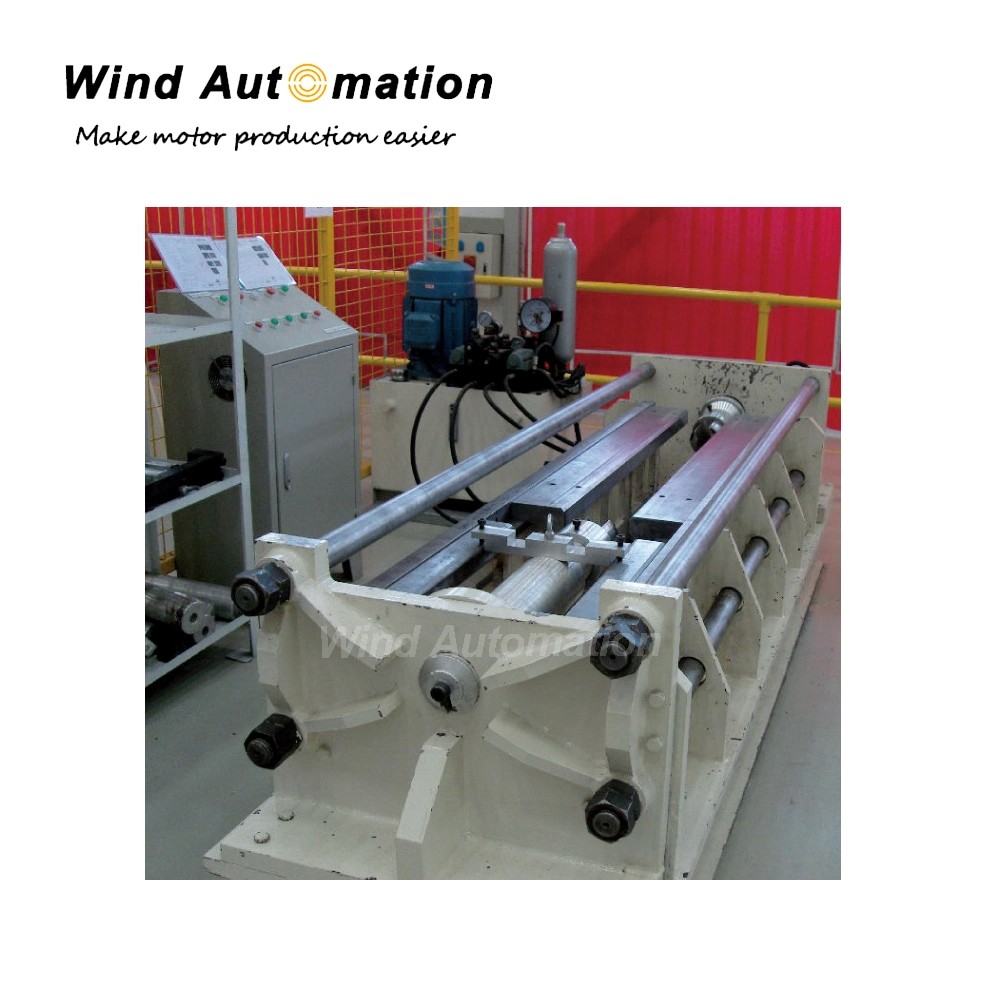

Horizontal Magnetic Pole Iron Core Stacking Machine

Specification

1.Pump station oil pressure 31.5Mpa;

2.Overlying oil cylinder stroke: 300mm, pressure 60T;

3.The base plate equipped with 5 ejection oil cylinders, ejection distance 150mm, ejection force: 2.5T;

4.Magnetic pole max.size: 430(W)× 300(H)mm,max.length: 2000mm;

5.Equipped with one set of tooling as client's drawing;

6.Machine overall size: 2965(L)×840(W)×702(H)mm.

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines.
