Fan-Motor-Stator-Automatic-Slot-Paper-Insertion-Machine

Basic Info.

Model NO.

WIND-80S-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

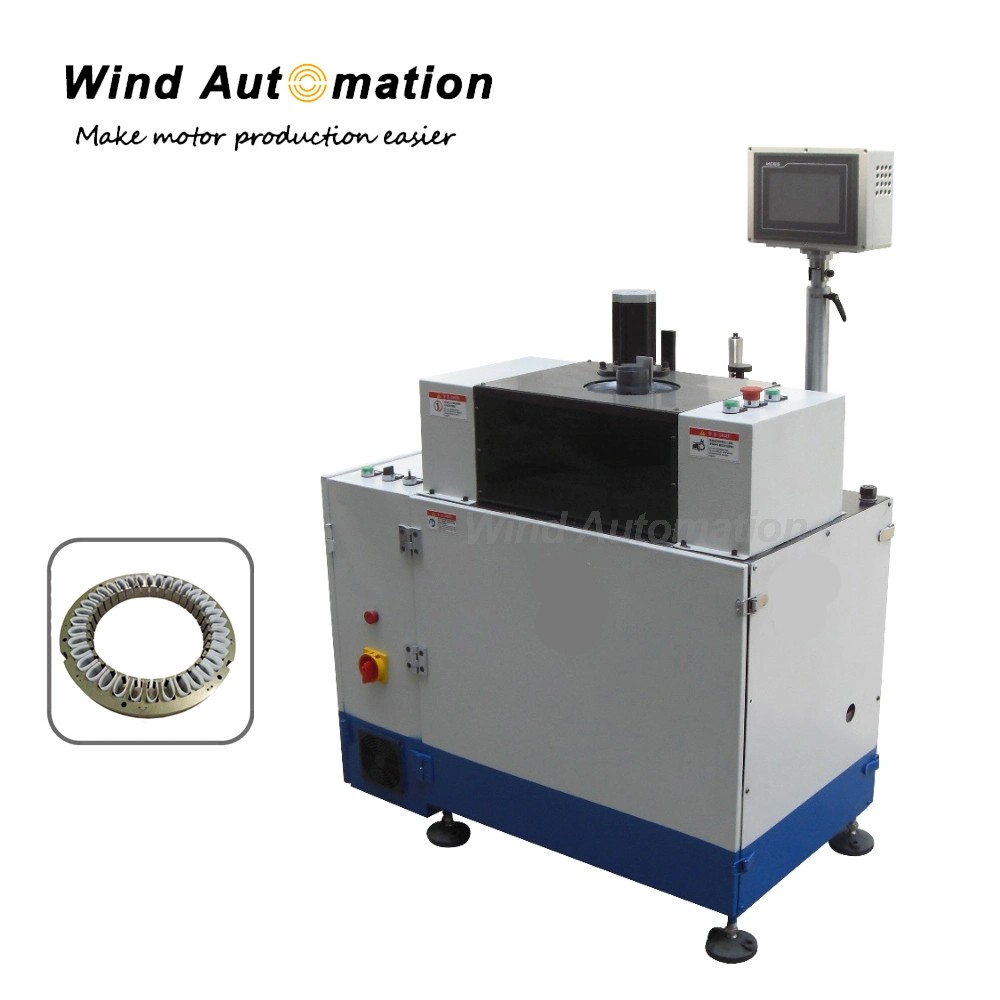

Servo Type Stator Paper Insertion Machine for Fan Motor Stator

Servo Type Stator Paper Insertion Machine for Fan Motor Stator

Operator has to stand while operating. Machine is easy to operate, no skilled operator needed.

(1) Application
This machine is suitable for compressor motor, generator motor, washing machine motor, fan motor and other motors with special slot shapes. .

(2) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process


(3) Specification

Stack lengthMax 60mm
Stator ID40~80mm
Stator ODMax 160mm
Cuff height2.5~4mm
Paper thicknessMax 0.25mm
Cycle time0.45s/slot
Power supply380V 50/60HZ
Air pressure 0.5MPa
Weight450KG
Dimension1150x1050x1500mm


Servo Type Stator Paper Insertion Machine for Fan Motor Stator Servo Type Stator Paper Insertion Machine for Fan Motor Stator
Servo Type Stator Paper Insertion Machine for Fan Motor Stator
