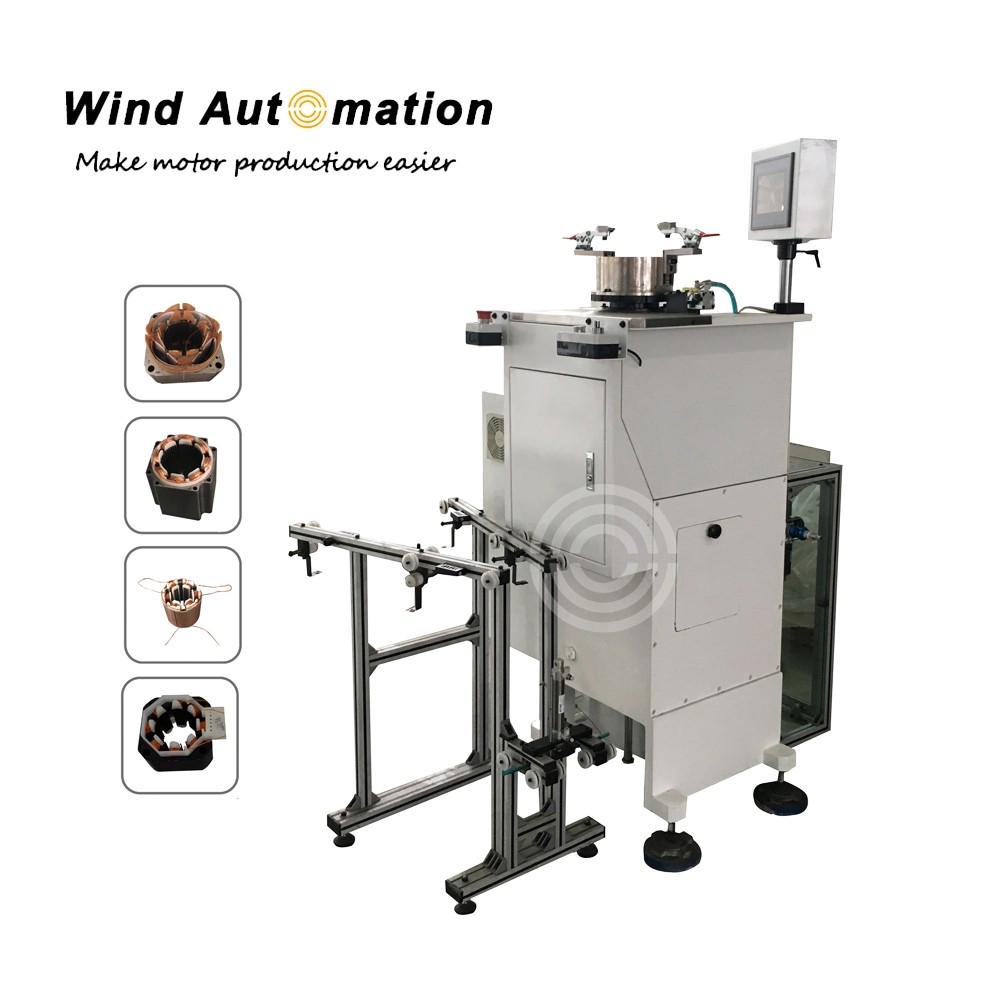

Needle Coil Winding Machine For Brushless Motor & Stepping Motor

Needle Coil Winding Machine for Brushless Motor & Stepping Motor
This needle winding machine is suitable for wires up to 18 AWG (1.0 mm) with latest winding technology for drives and controls.The adoption of rectangle winding track enables this inslot winding machine to produce stators with narrow slot width and heavy wire but high slot filling rate.

(1)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system

(2)Specification

Wire diameter	0.08~1.0mm
Stator ID	Min 19mm
Stack length	Less than 100mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,8,9,10,12,14,18(customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	450KG
Dimension	1600x1100x1400mm

(3)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling

(4)Application

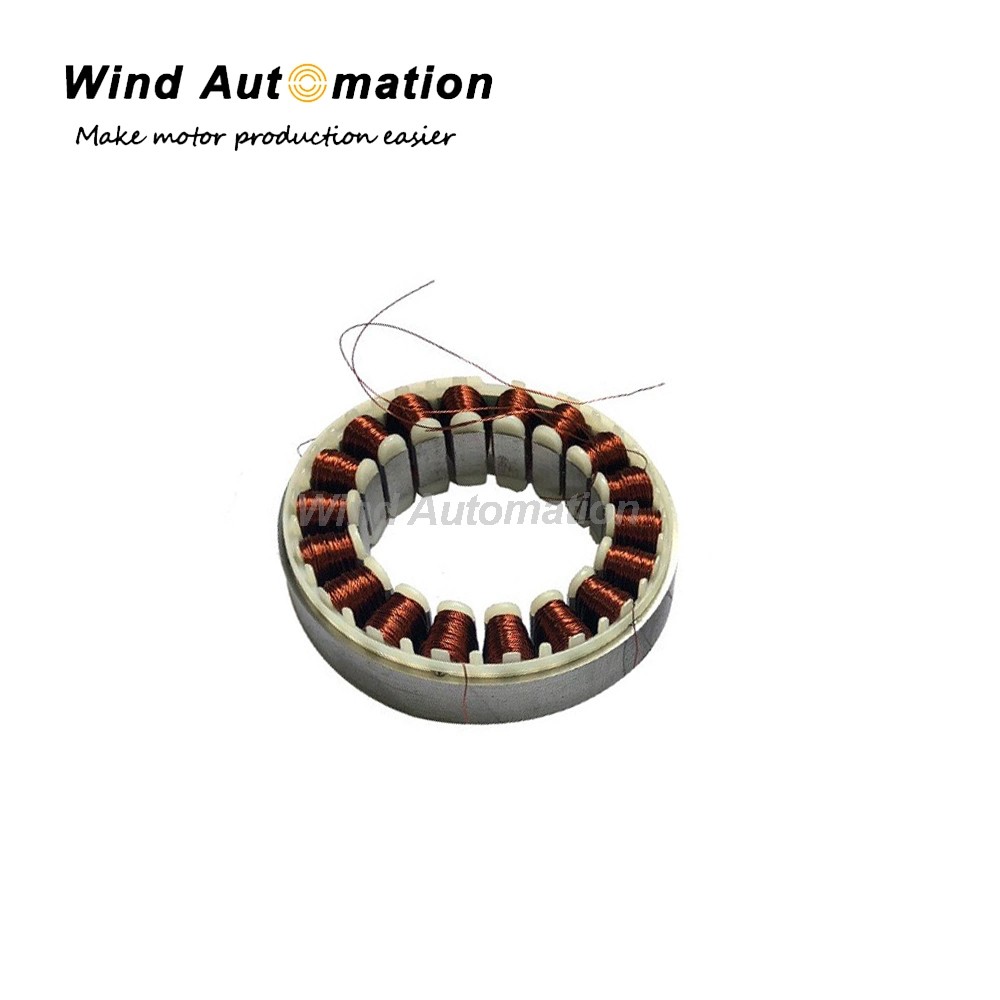

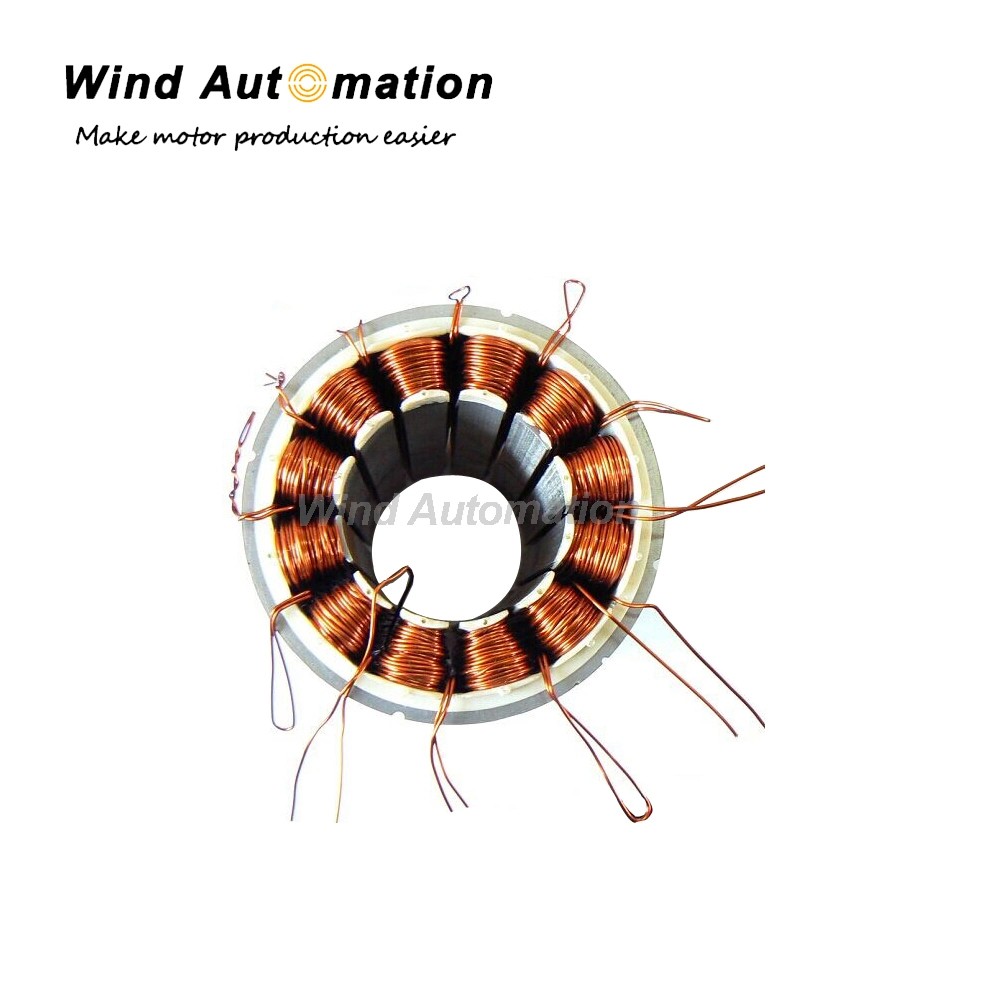

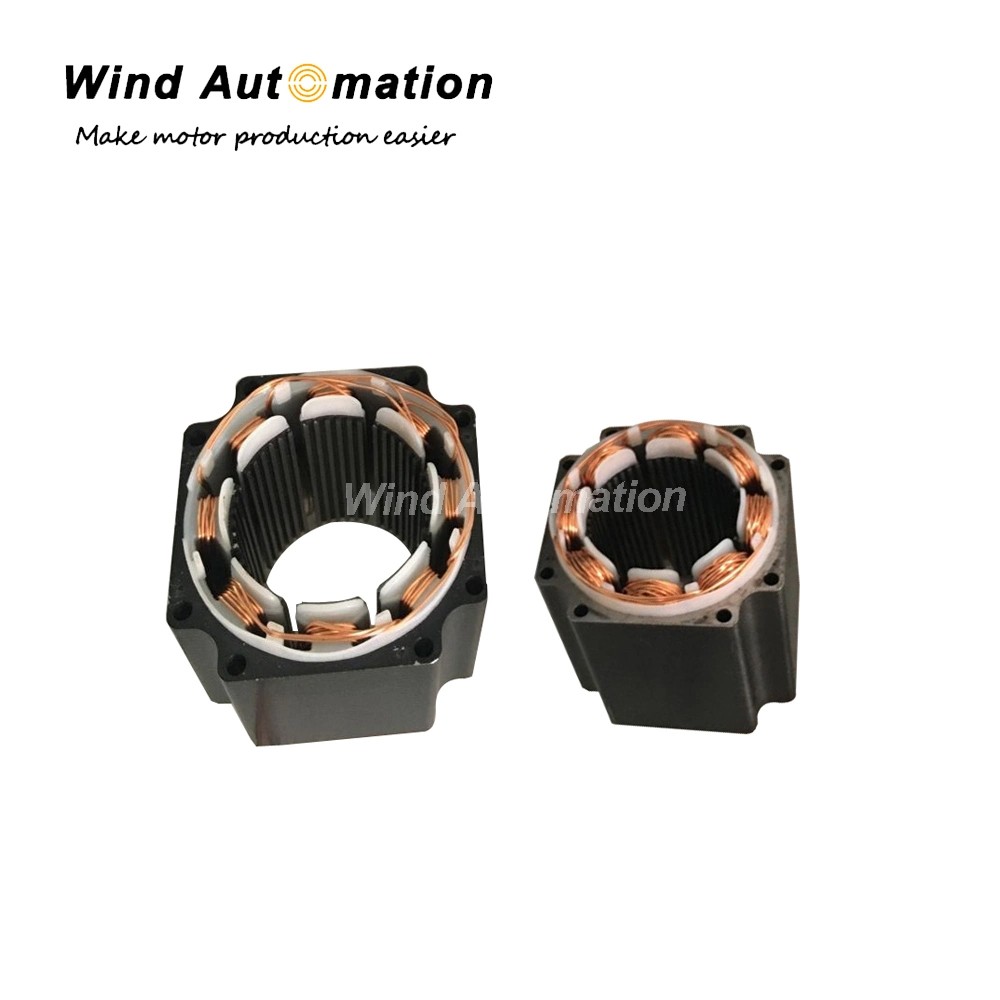

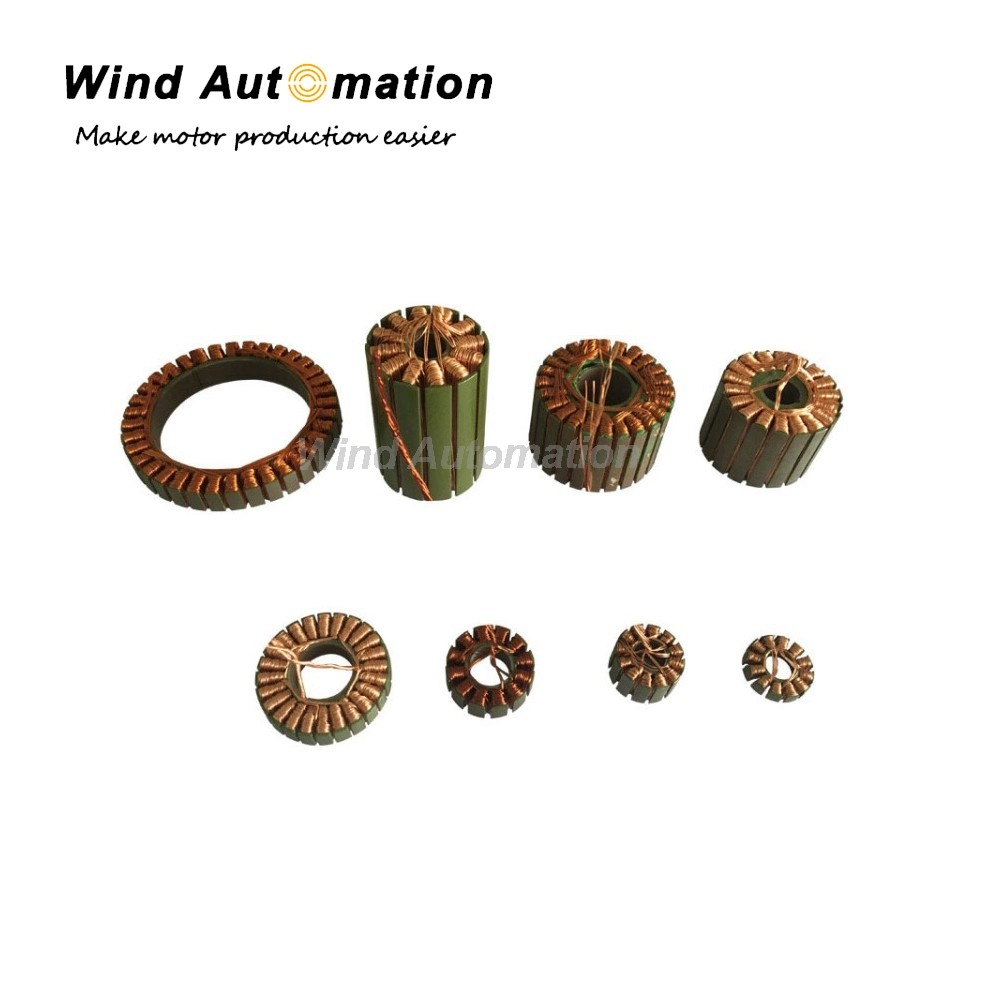

Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.

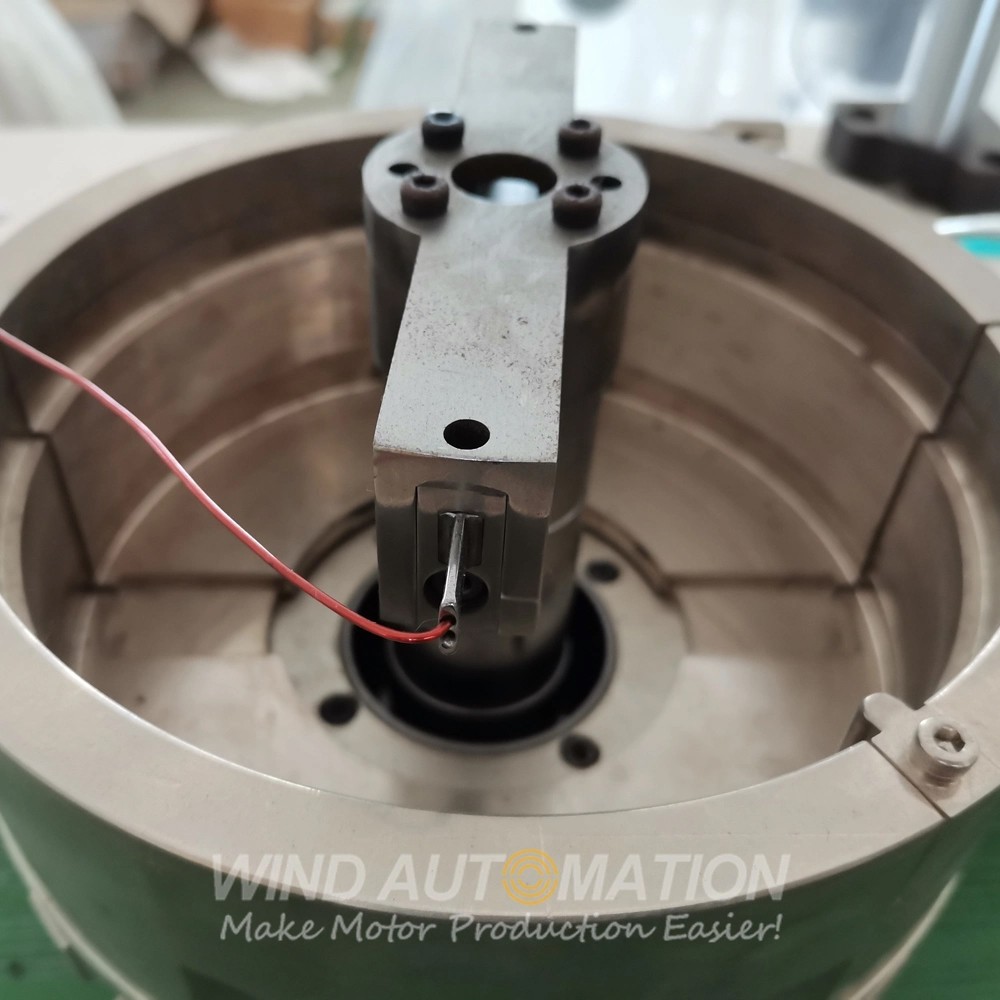

(5) Machine working station

Needle Coil Winding Machine for Brushless Motor & Stepping Motor
