Shroud-Winding-Machine-Inslot-Winding-Machine

Product Description

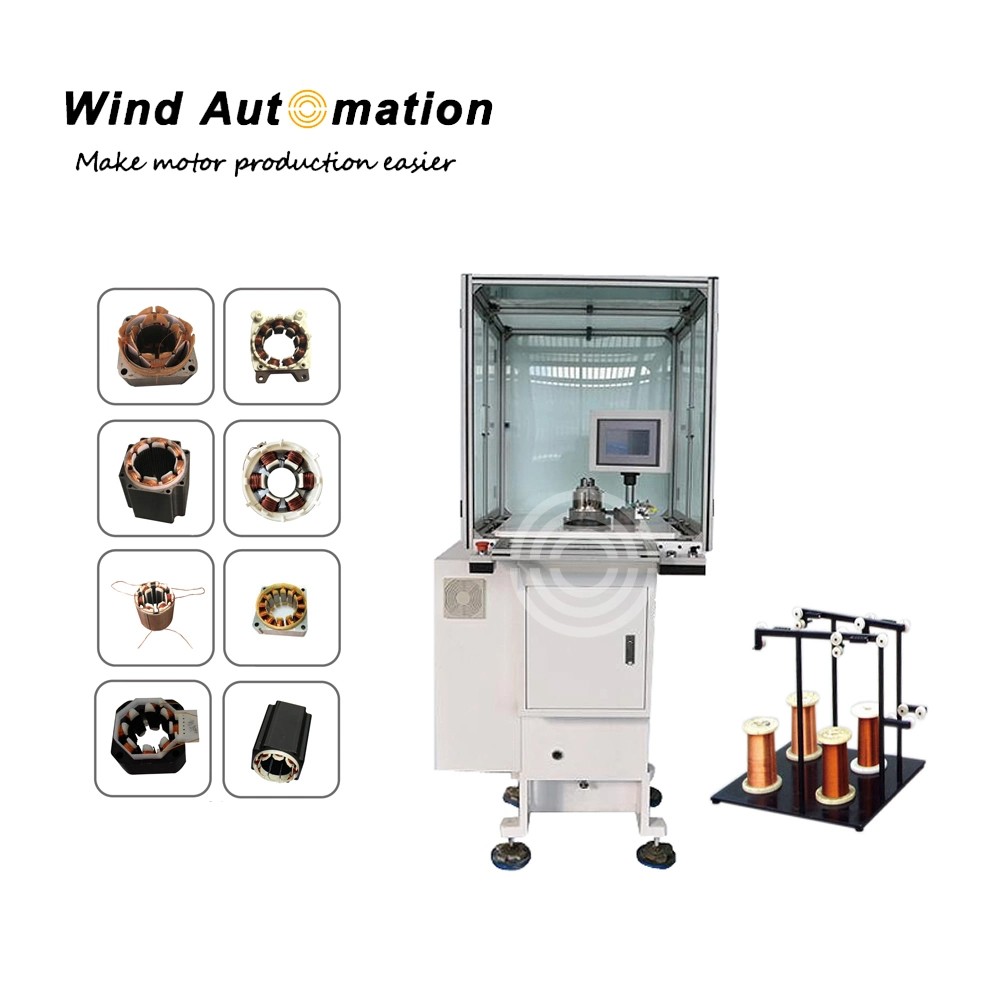

Shroud Winding Machine Inslot Winding Machine

The adoption of rectangle winding track enables this inslot winding machine to produce stators with narrow slot width and heavy wire but high slot filling rate. The precision needle winding performance brings high quality and efficiency of this machine.

(1)Specification

(2)Application

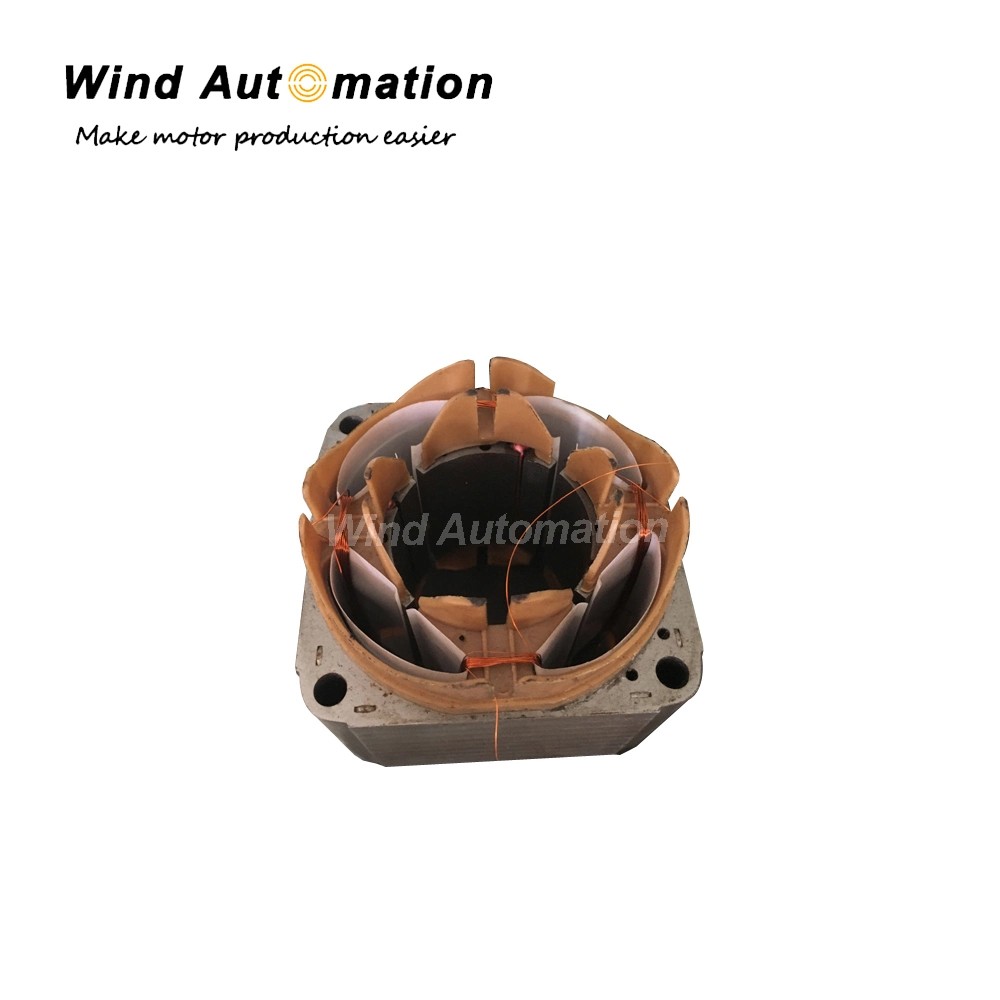

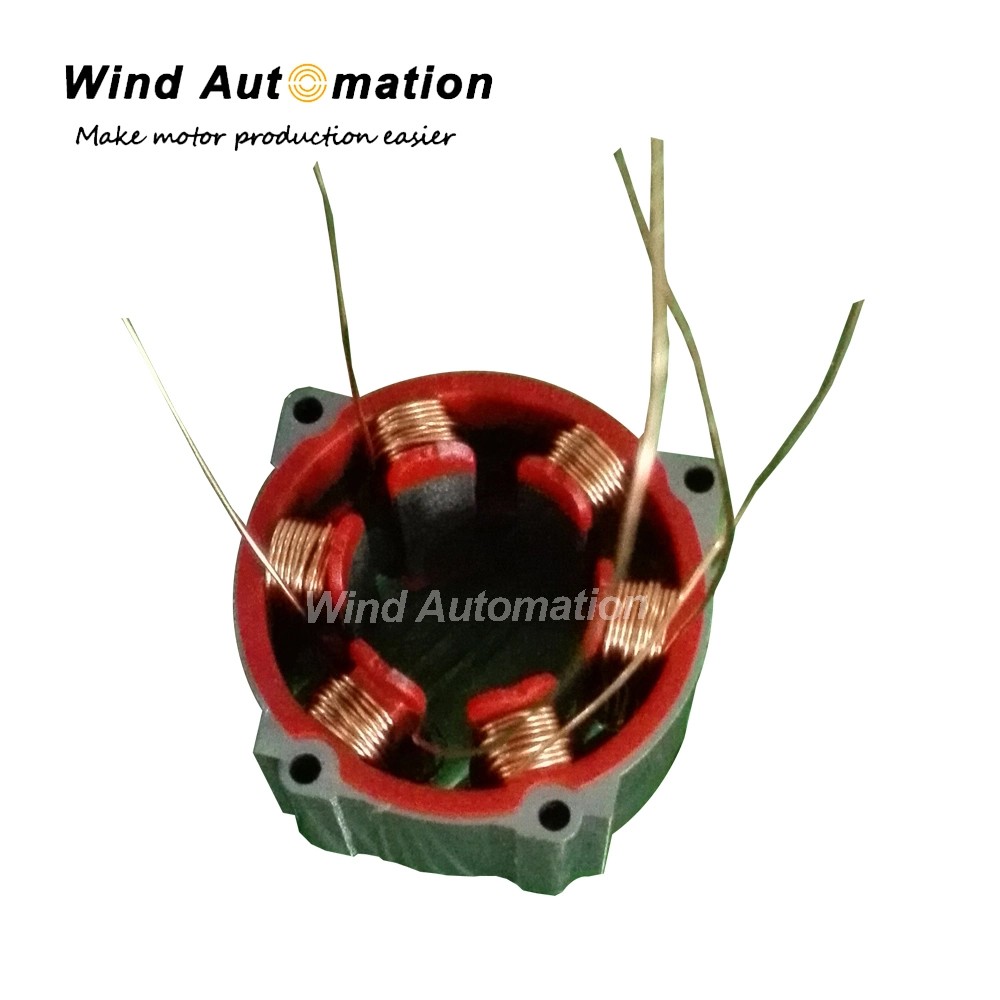

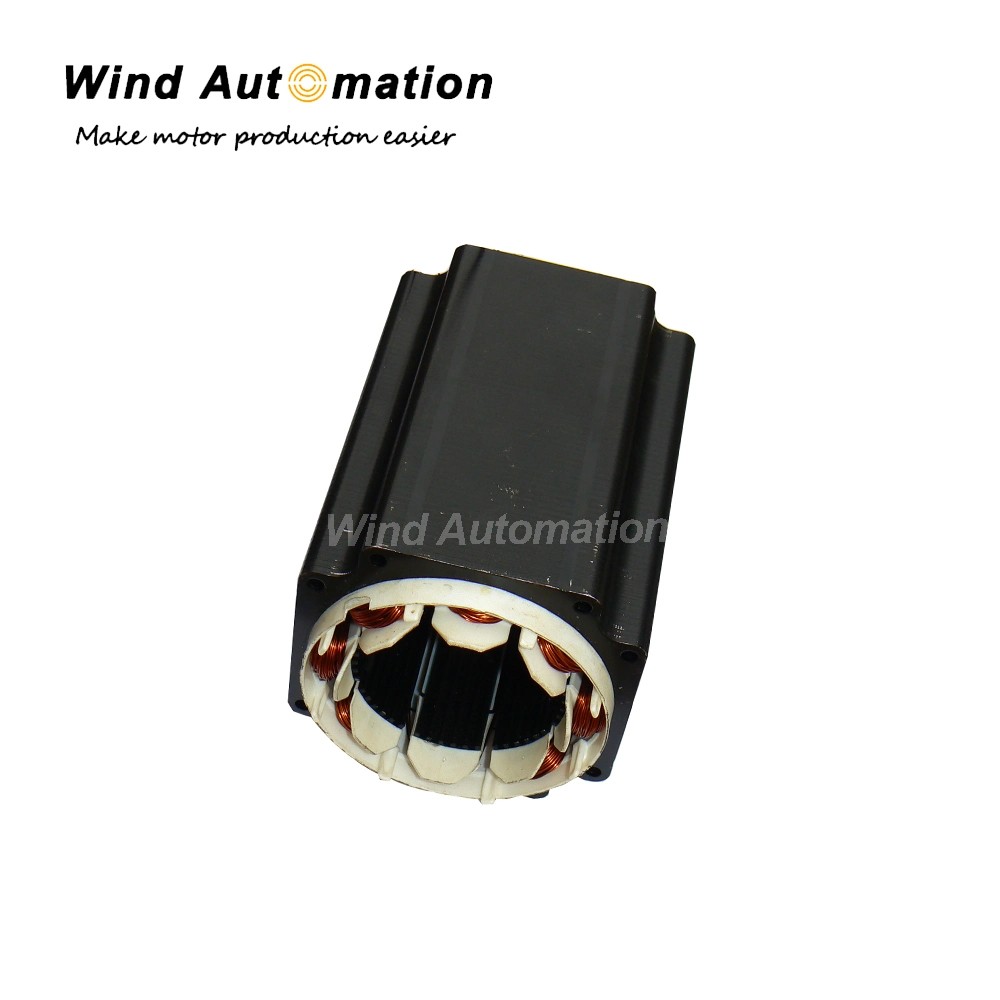

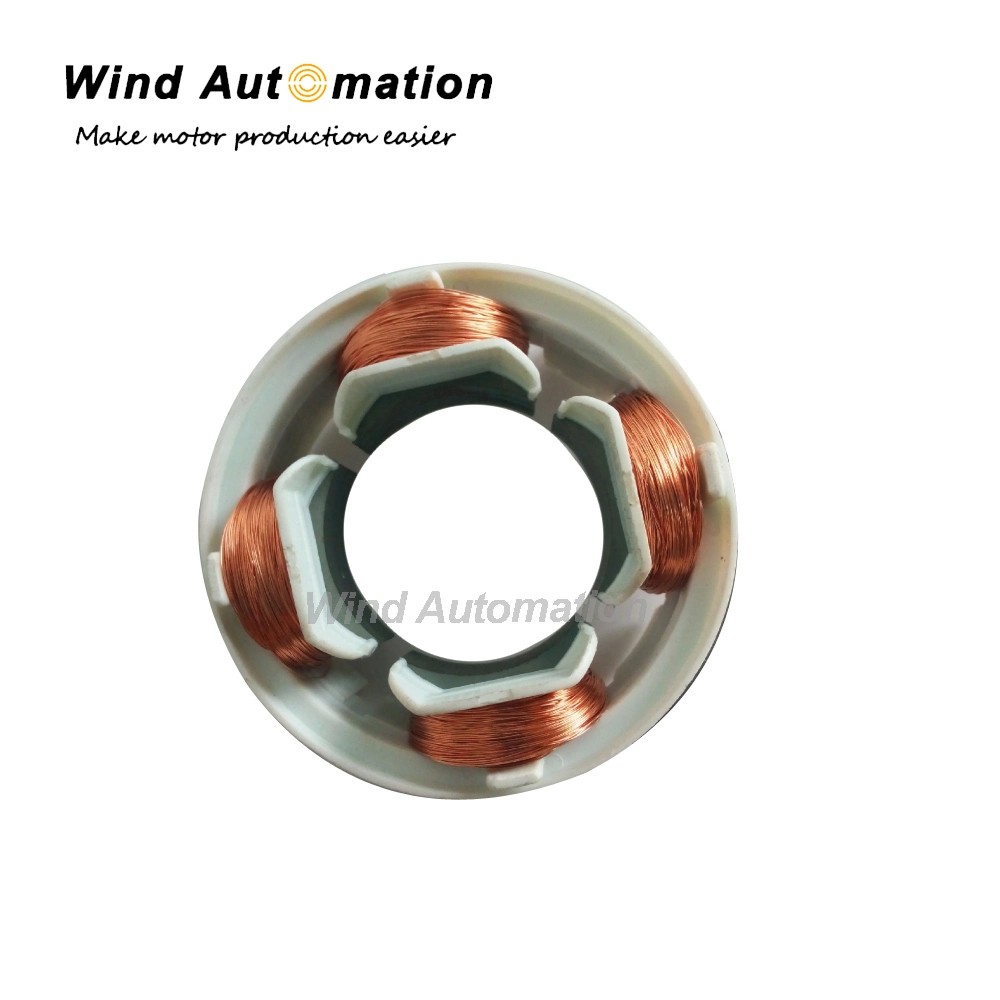

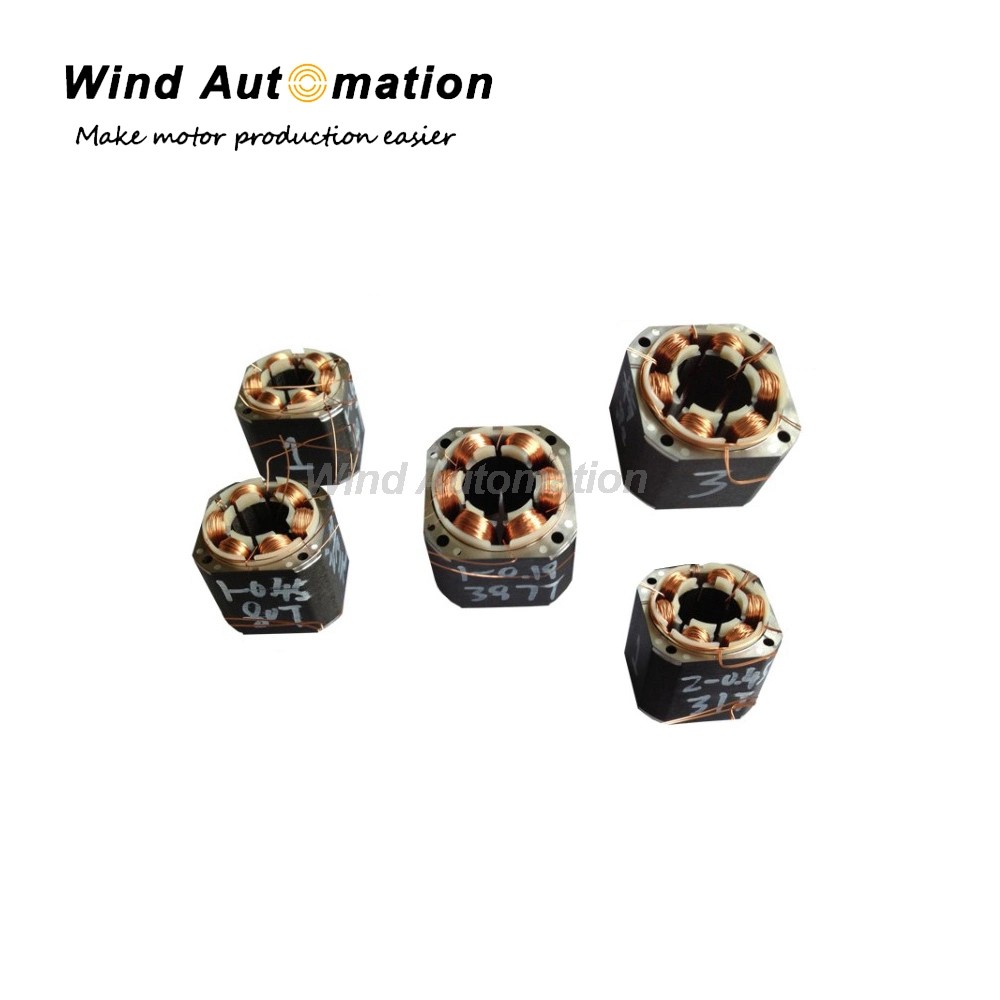

Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.

(3)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
