Needle-Winding-Solution-for-BLDC-Motor-Stator

Product Description

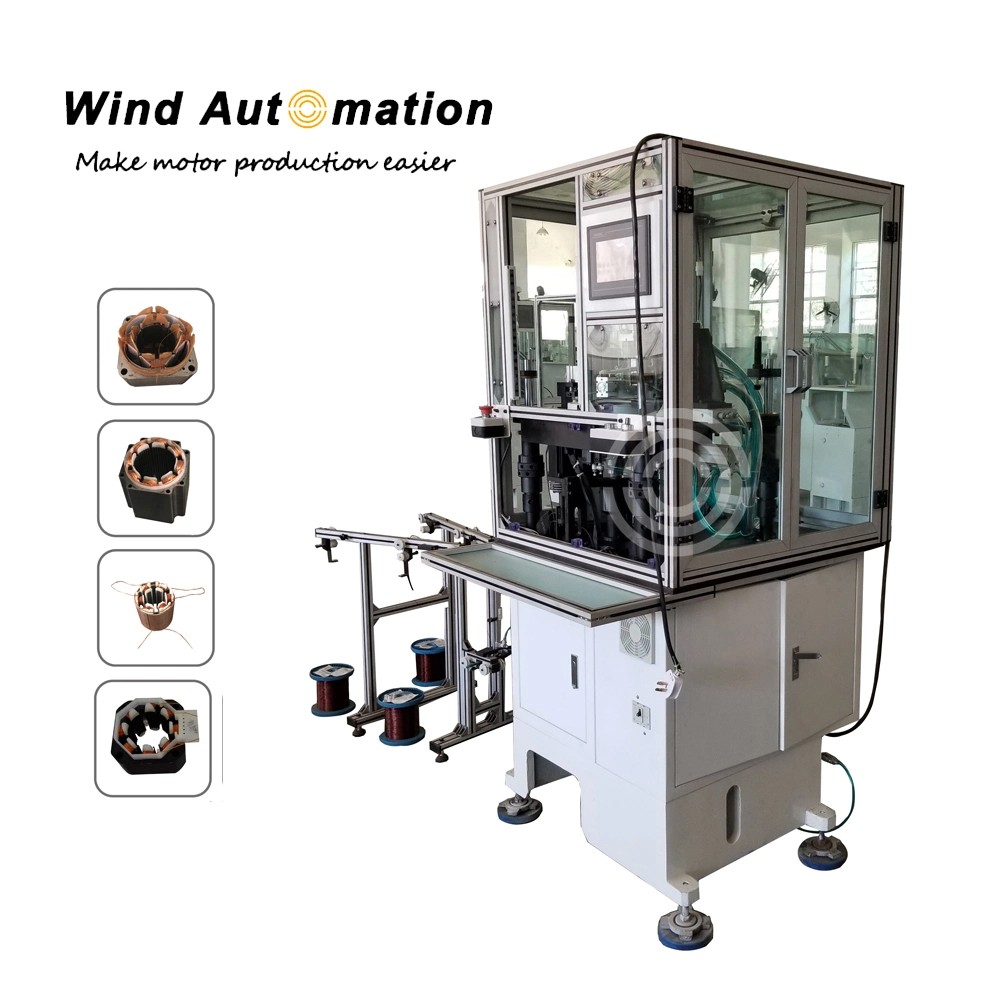

Needle Winding Solution for BLDC Motor Stator

Wind Automation provides customer with various needle winding solutions. Our needle winding machine has different working stations, up to six. Meanwhile, it covers a wide application, not only for BLDC motors but also other motors, such as power tool, stepping motor, open pole, muti-poles stators.

(1)Application

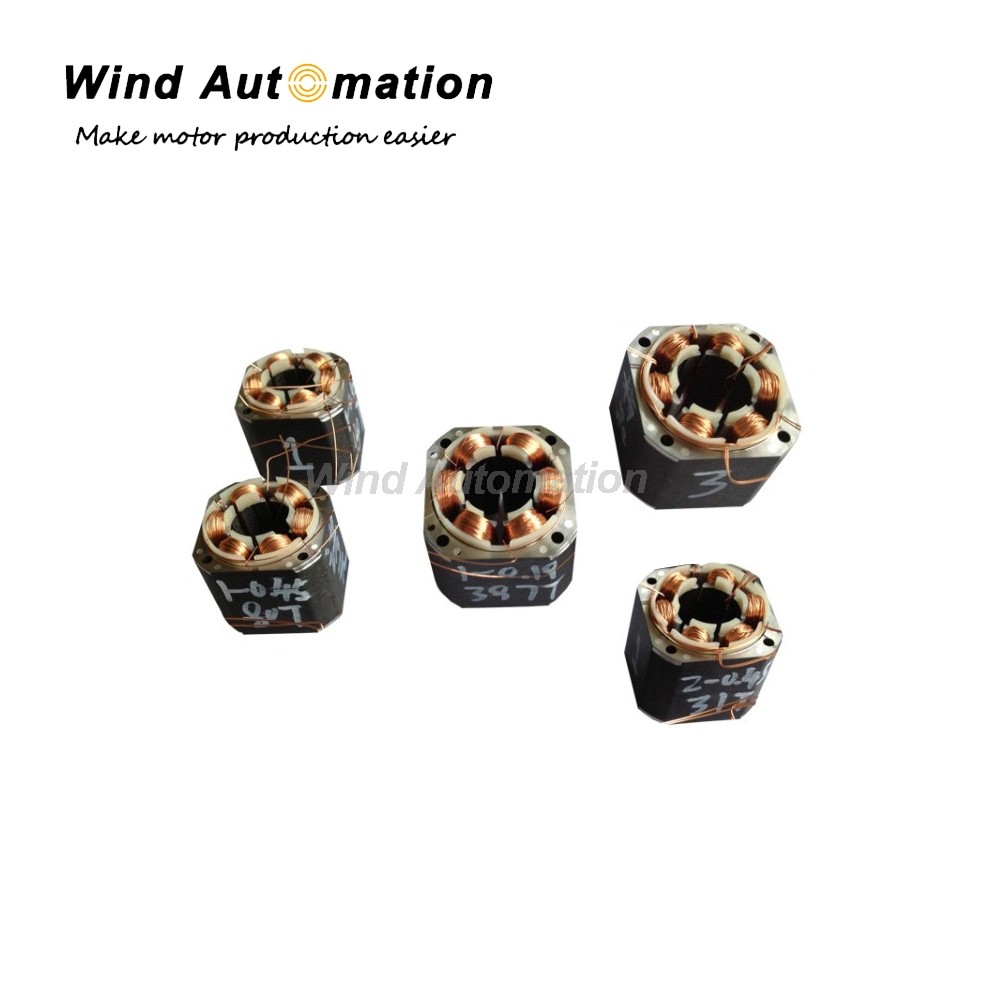

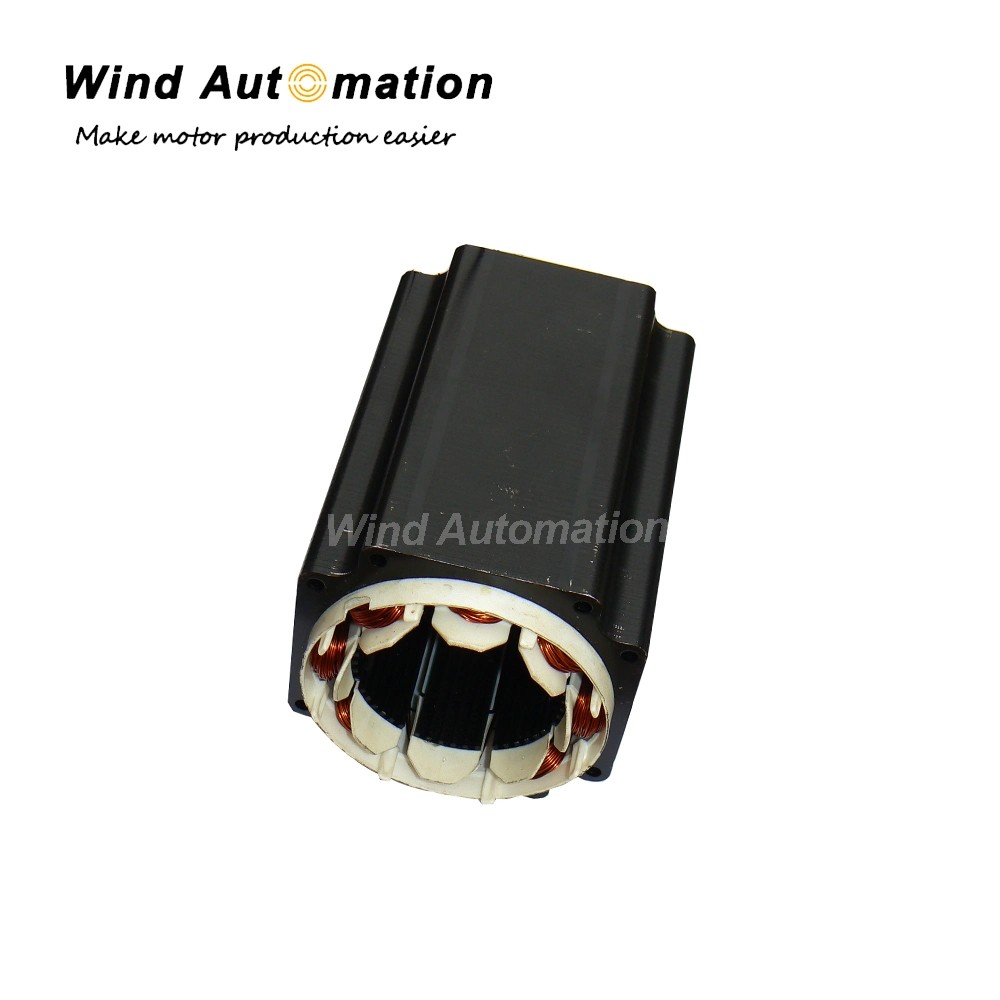

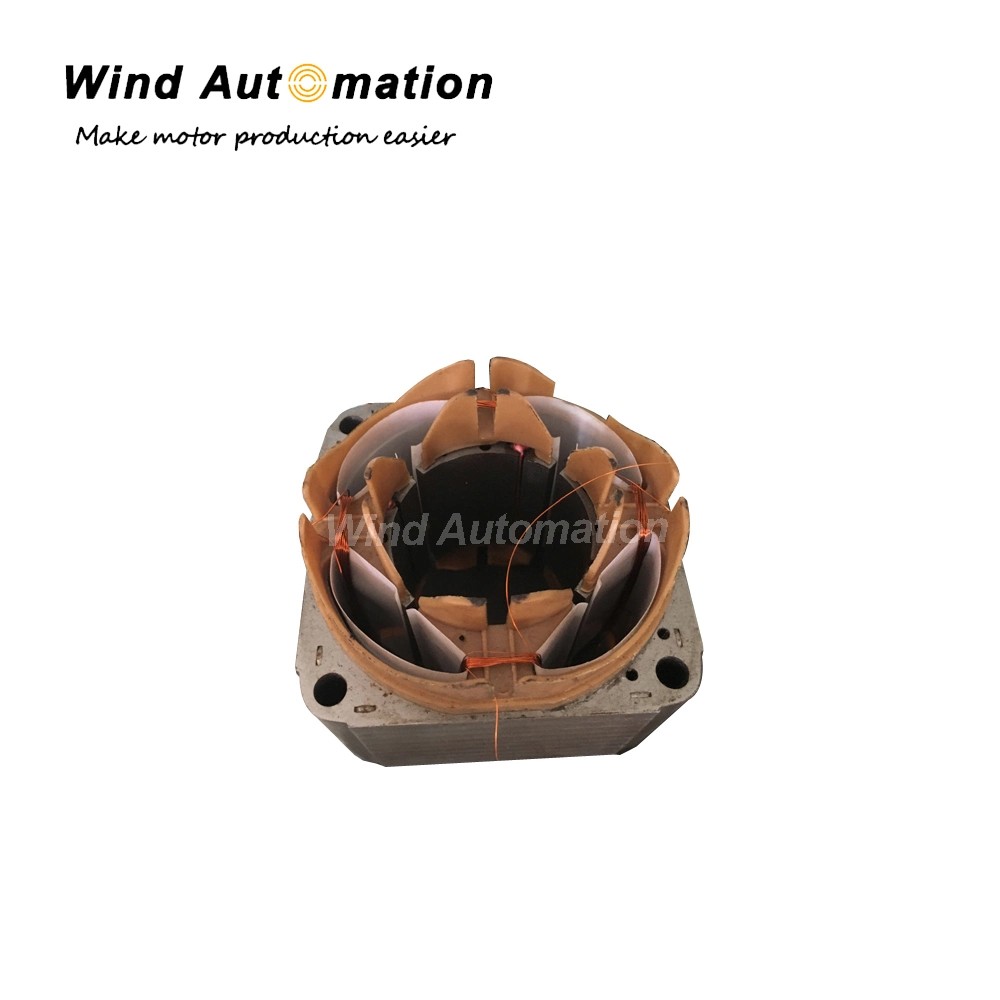

suitable for various types stators with narrow slot width but high slot filling rate.

(2)Features
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Winding parameter adjustable according to different stators

(3)Specification

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

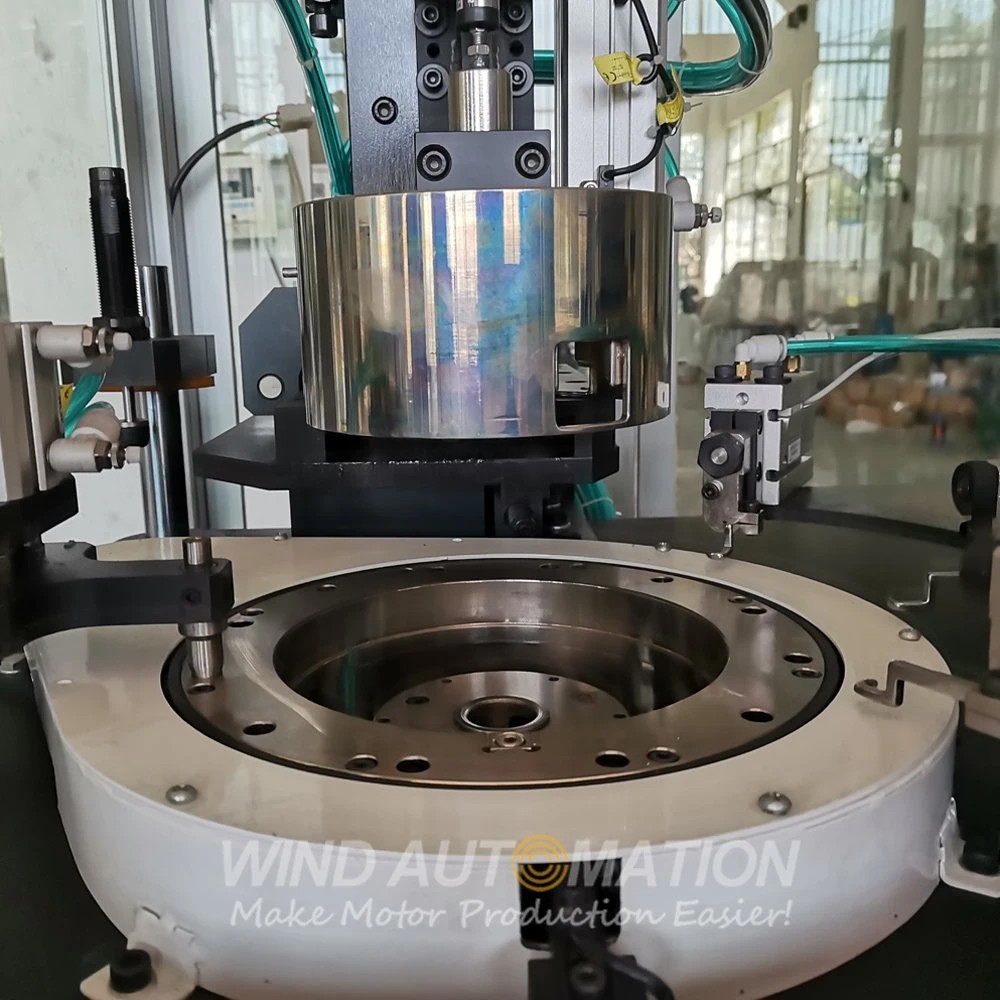

(5) Machine working station
