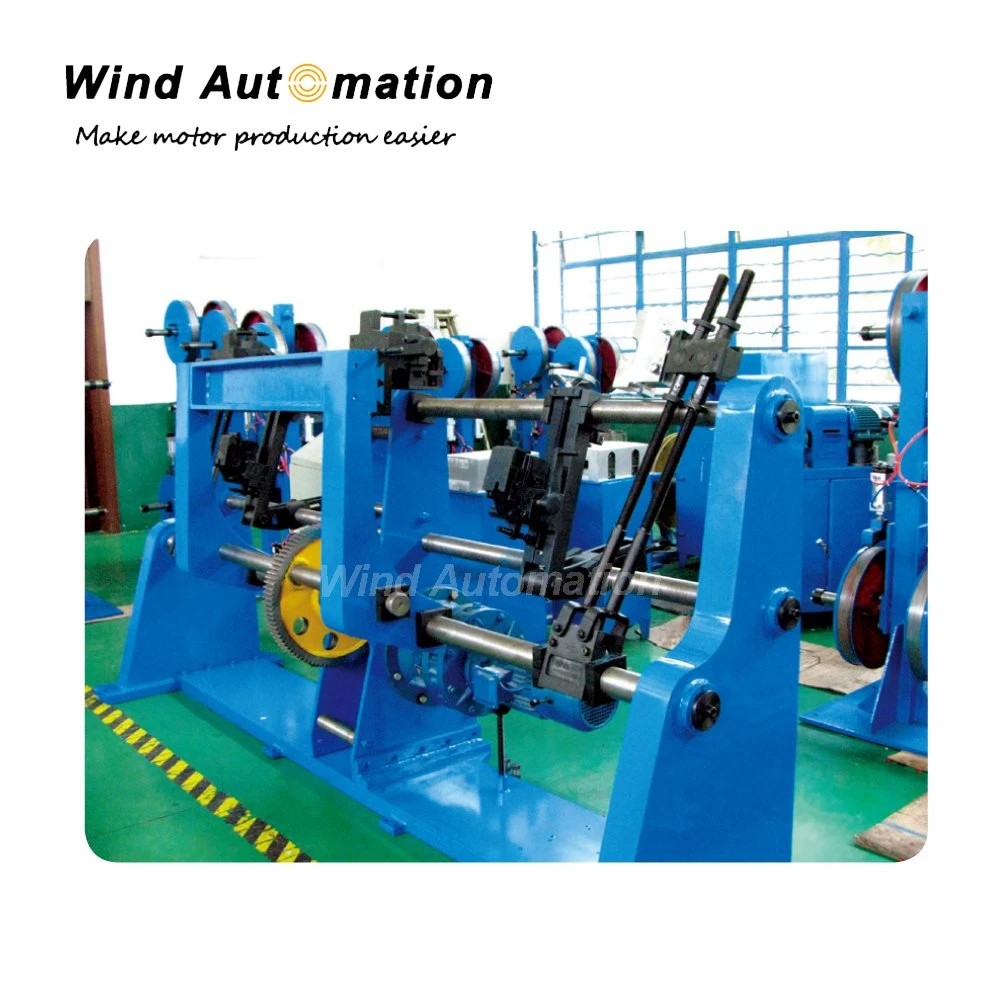

Adjustable Semi-automatic Framework Coil Forming Machine

Specification

1.Coil section: 8×25~15×65mm2 (W/H)adjustable steplessly, eccentric clamping;

2. Max. length of coil line 2200mm, min. 700mm, assemble length scope: 700~1600, 1600~2200, stepless adjustable (movable cross arm has 1100, 1600, small planker has 550mm×2, 350mm×2 by different assemble);

3. Disc (fusiform) length 3000 mm;

4. Drawn pitch 1150mm, angle 160º (125º drawn by Forming Machine, 20º adjusted by the drawing clamp, 15º by fifine tuning);

5. Dia. for coil inserted wire infifinite;

6. Nose part auto-rise 0~300mm, manual arc, equipped withφ30,φ50 drawing nose clamp, nose clamp width 200mm, nose clamp includes full nose and half nose, both for shaping;

7. Power 2.2kw, cycloid slowdown, gear transmission, cross arm adjustable, manual arc by sample plate on the machine for small quantity, to increase effificiency, it is required to use reshaping mould for big quantity
