Product Description

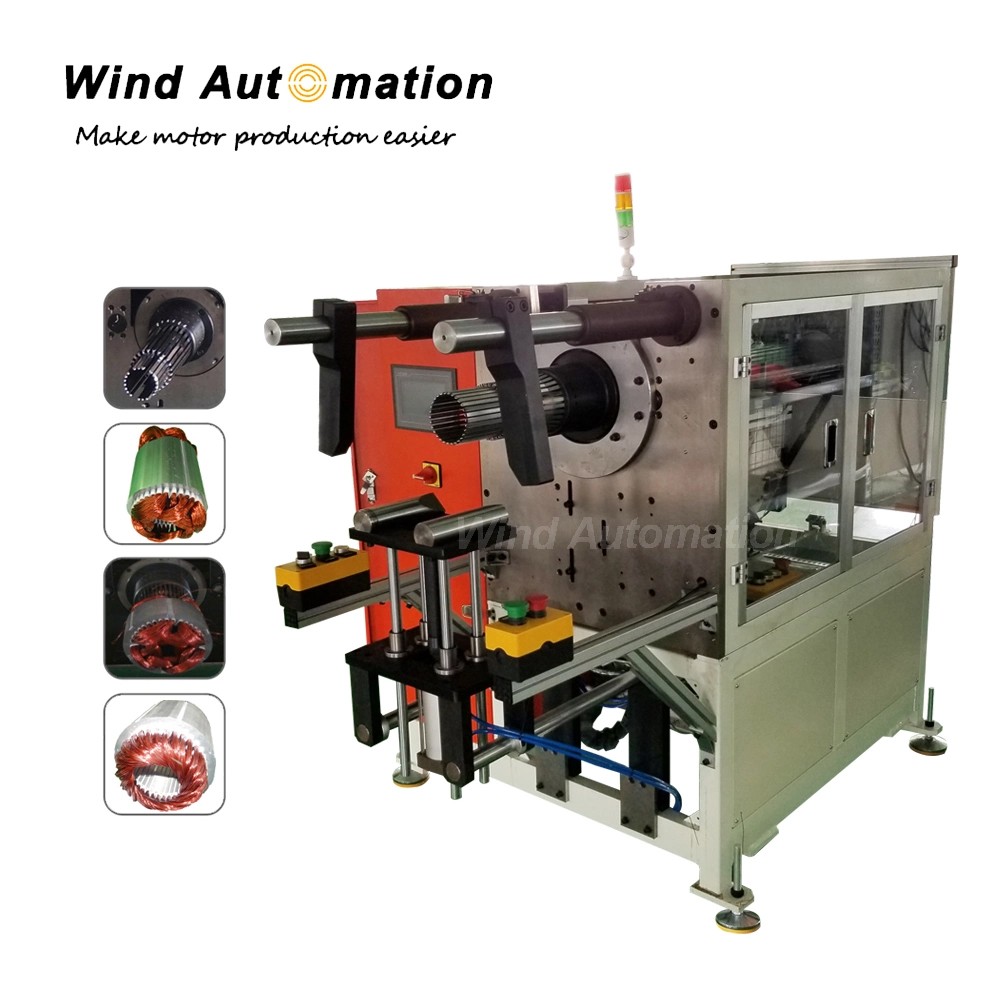

Stator Coil Winding Inserting Machine With Horizontal Type

This type winding inserting machine can insert coil and wedge into stator slot. It firstly insert paper, then wedge. It is suitable for various types induction motors. All parameters like slot number, coil pushing speed, and wedge length are programmable in touch screen.


(1) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required

(2) Specification

(3) Application
This type of machine is suitable for large and medium-sized AC motor, induction motor stators.
