Large-Stator-Paper-Inserting-Machine-Paper-Inserter

Basic Info.

Model NO.

WIND-450-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

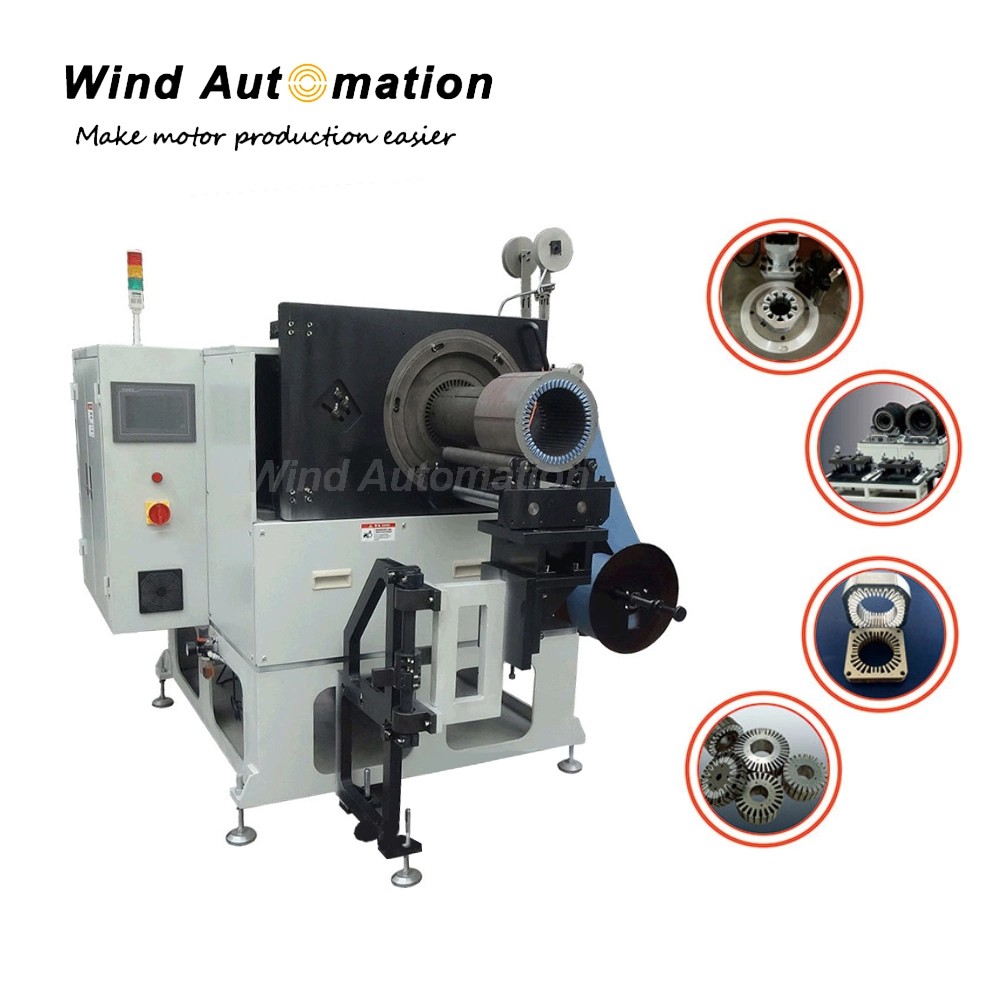

Large Stator Paper Inserting Machine Paper Inserter

This machine adpots a horizontal type so as easy to load and unload stator for big and heavy stators.

Modular design of this paper inserting machine enable the tooling changeover within 30min. Machine structure is mainly controlled by servo system, instead of mechanical transmission.

(1) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process

(2) Specification

(3) Application
This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production.
