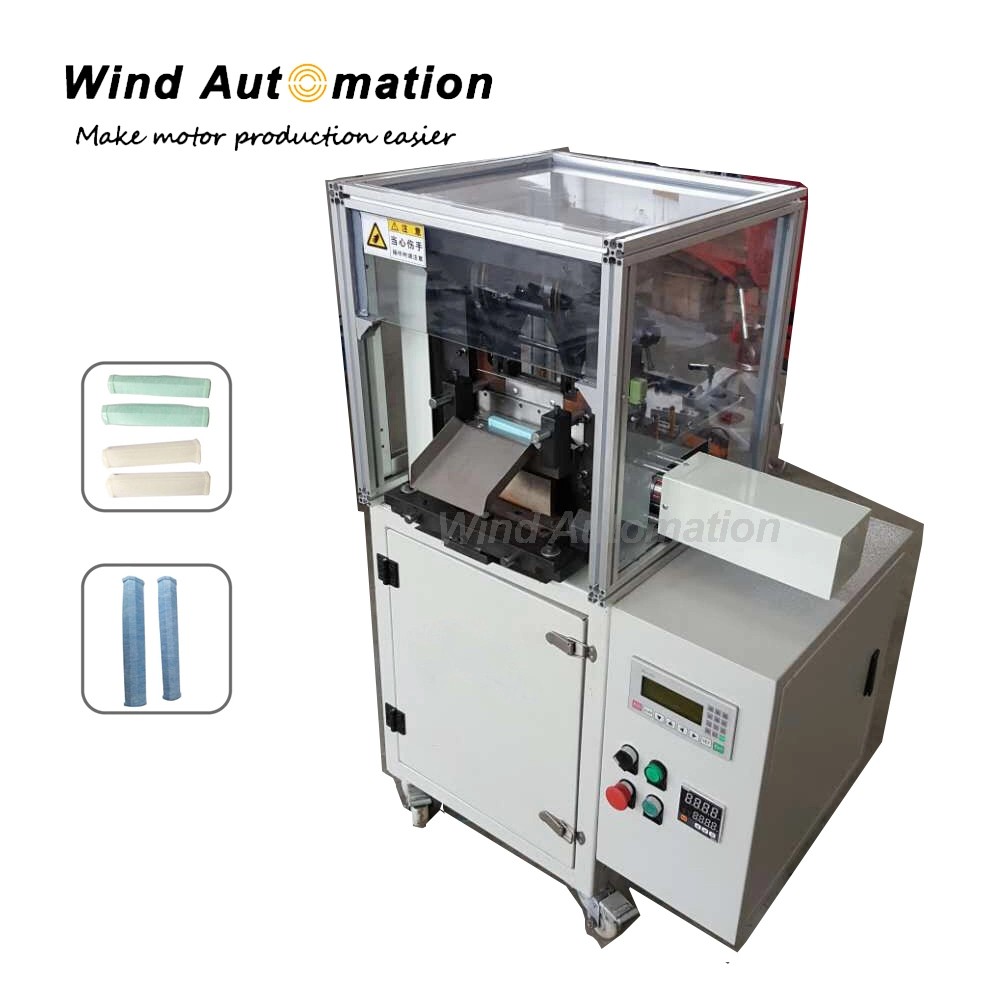

Auto Stator Slot Paper Forming and Cutting Machine
This machine is capable of producing slot paper of stators for manual inserting. Paper feeding is driven by steeping motor.
(1) Specification
| Feeding length | 10~100mm |
| Cutting width | Max 150mm |
| Cutting thickness | Max 0.35mm |
| Cuff height | 2.5mm~4mm |
| Power supply | 220V 50/60HZ |
| Total power | 0.5KW |
| Weight | 150KG |
| Dimension | 500x900x1200mm |
(2) Feature
Simple and easy to operate
Wide applied for bending and cutting different slot cell size no need tooling change
No regular maintenance needed, only polish or replace cutter after 2 year to 5 years
(3) Application
This machine is suitable for a low volume but a high mix of production or manual production motor manufacturer.
