Economic-Type-Stator-Coil-Injection-Slot-Winding-Inserting-Machine

Basic Info.

Model NO.

WIND-CWH

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

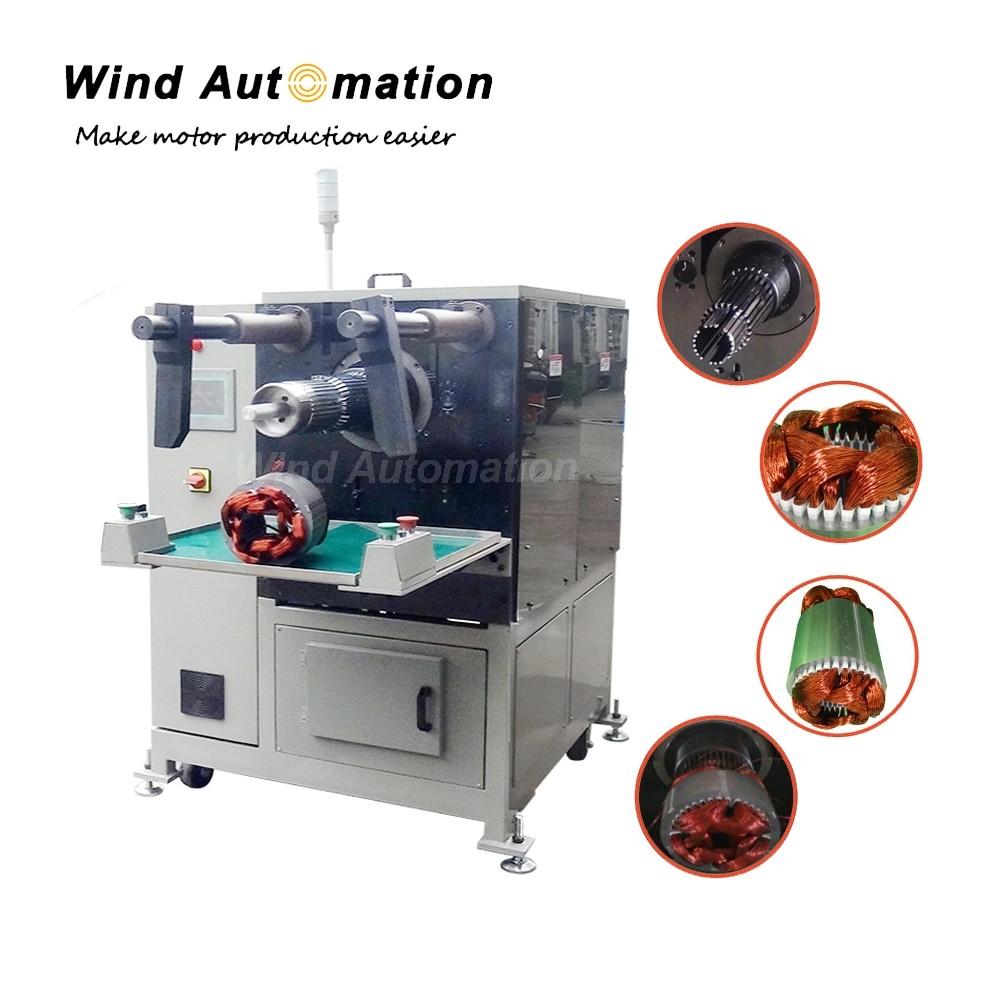

Economic Type Stator Coil Injection Slot Winding Inserting Machine

This machine has a horizontal type structure. Coil insertion, wedge cutting and feeding are controlled by servo motor, while wedge insertion by stepping motor. It is equipped with a heating device which enable better wedge forming process. Tooling change consumes less than 10min.

(1) Specification

(2) Application
This type of machine is suitable for large and medium-sized AC motor, induction motor stators.

(3) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
