Stator-Automatic-Final-Coil-Shaping-Winding-Forming-Machine

Product Description

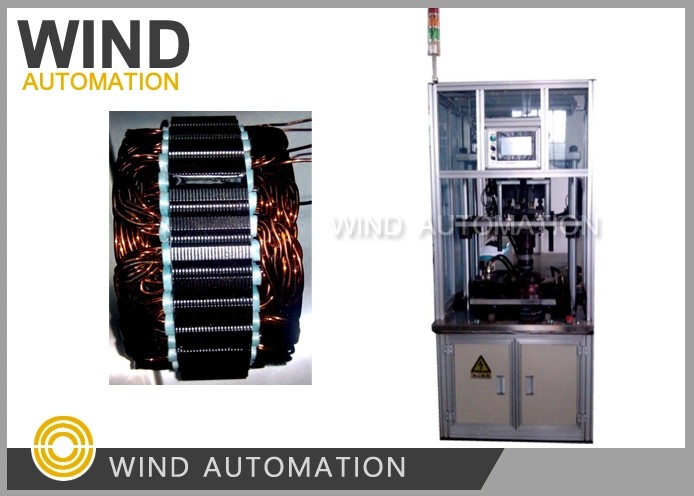

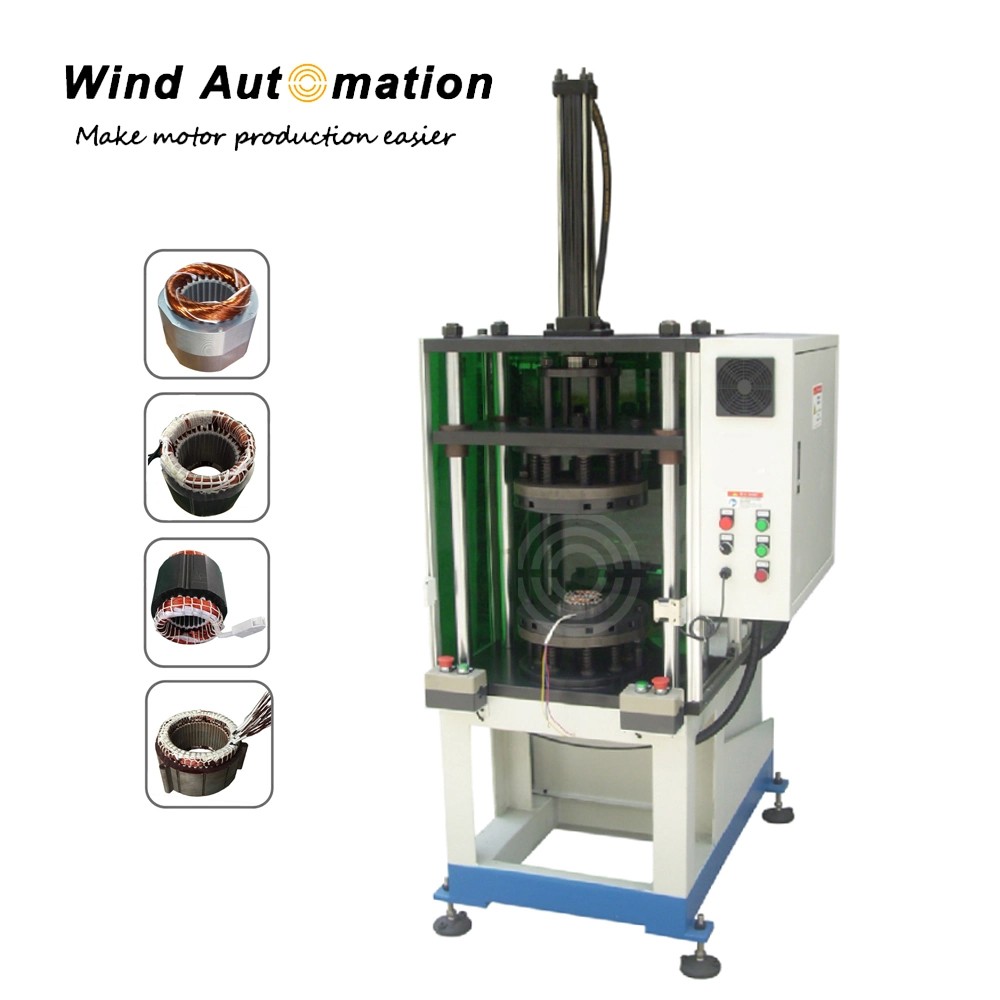

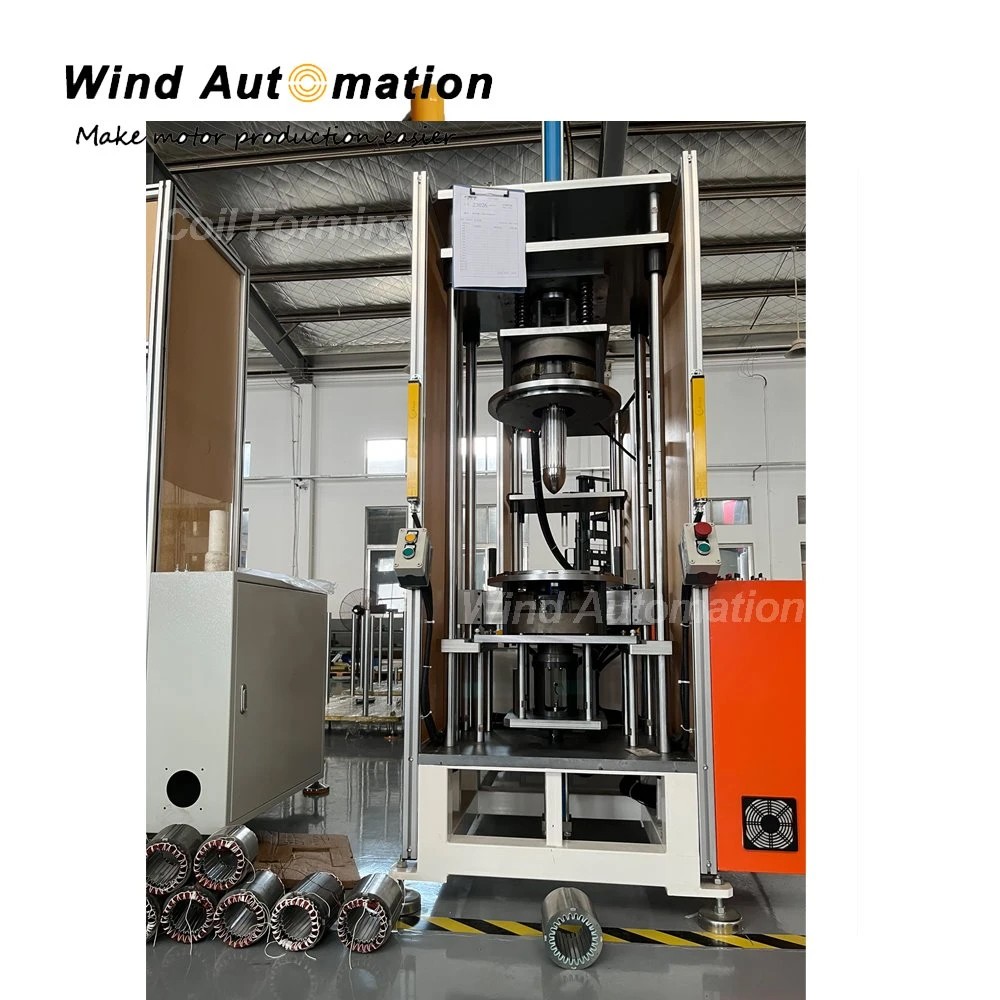

Stator Automatic Final Coil Shaping Winding Forming Machine

Final forming machine is consisted of machine framework, oil hydraulic power system, control system, and forming tooling system. Powered by hydraulic system, machine drives the forming tooling system, so as to control the expansion and shrink of expansion blade and forming blade to complete the stator coil forming.


(1) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required

(2) Specification

(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.
