Stator-Needle-Winding-Machine-for-Inner-Skewed-Slot-Stator

Product Description

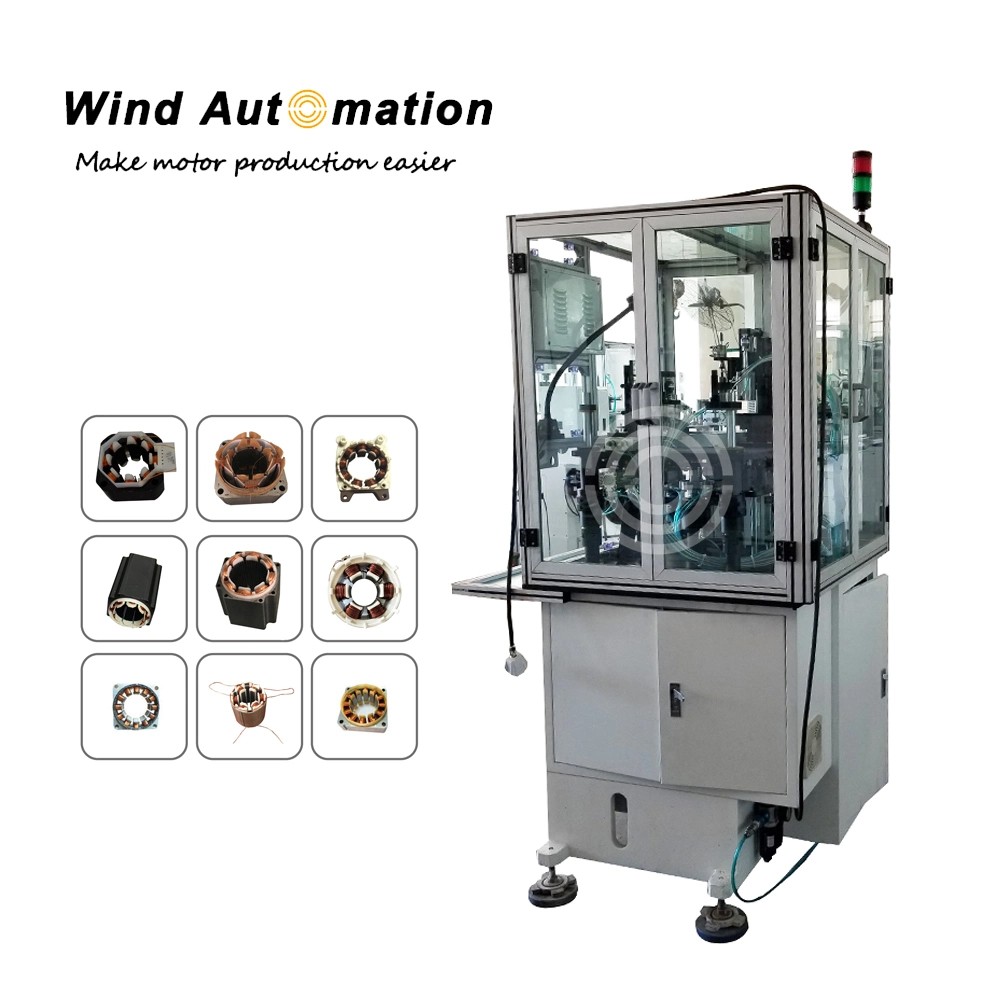

Stator Needle Winding Machine for Inner Skewed Slot Stator

This needle winding equipment is suitable for inner skewed slot stator to do inslot winding. Customized service is also provided, if stator parameter does not meet the specification listed blow.


(1)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

(2)Specification

(3)Application

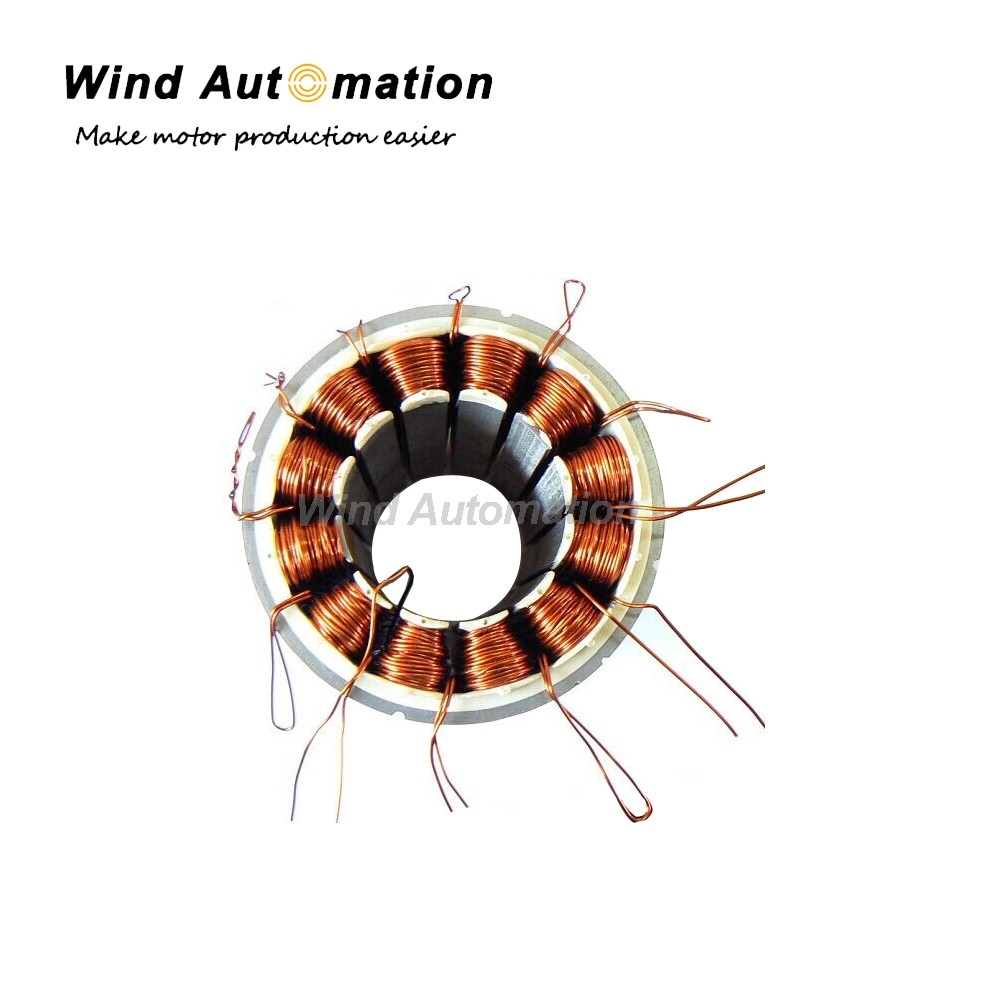

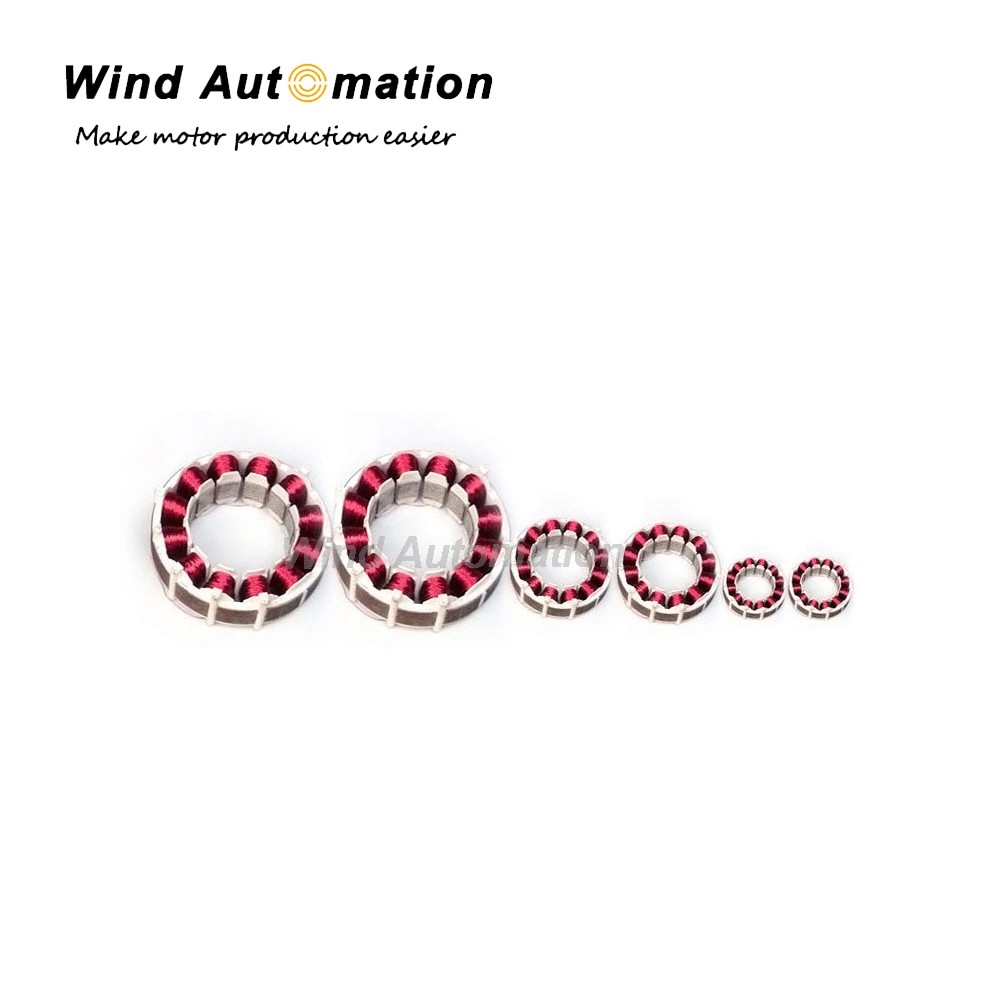

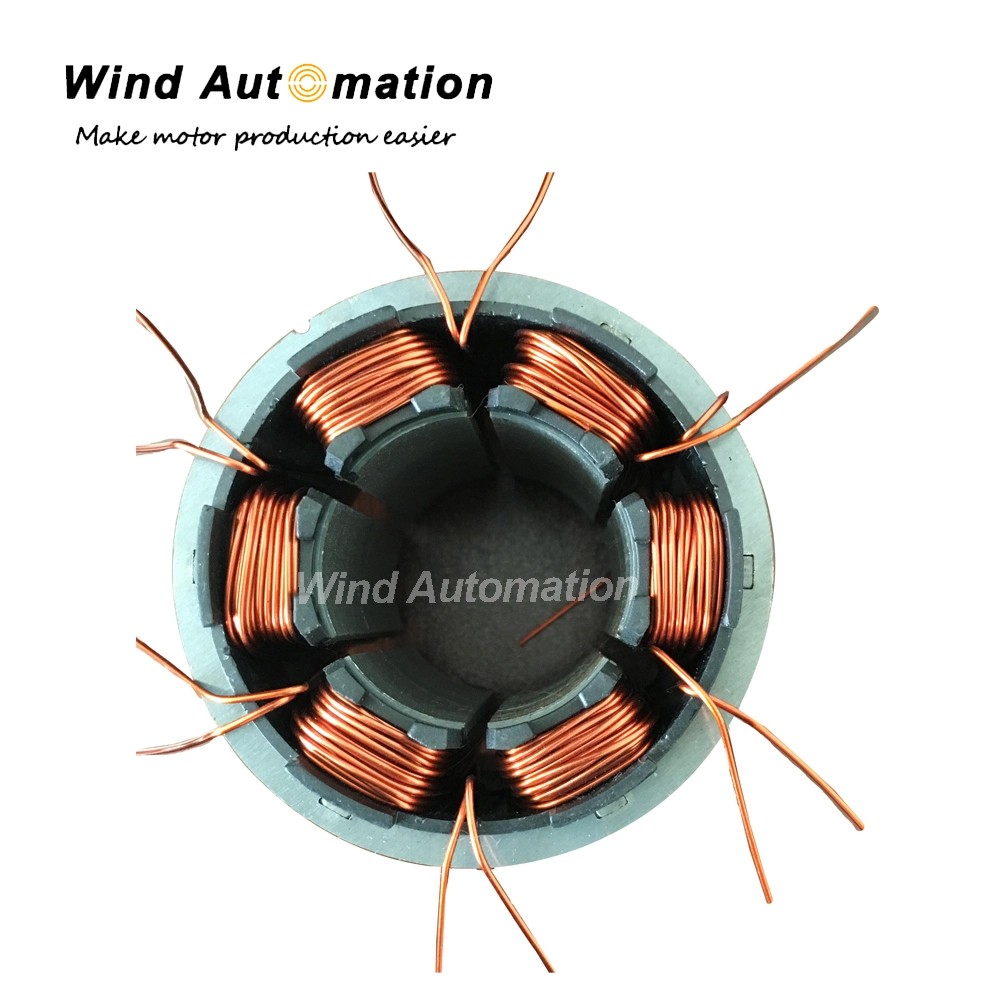

Suitable for various types stators with narrow slot width but high slot filling rate.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

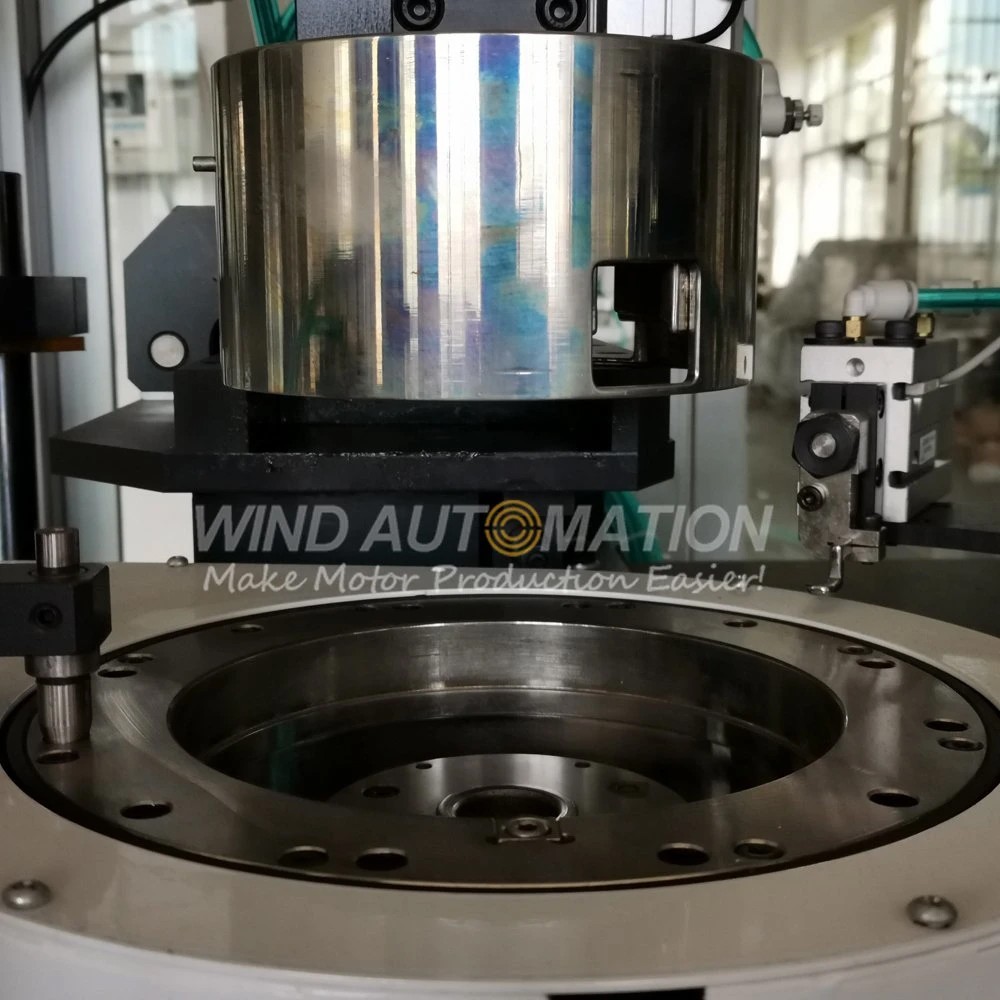

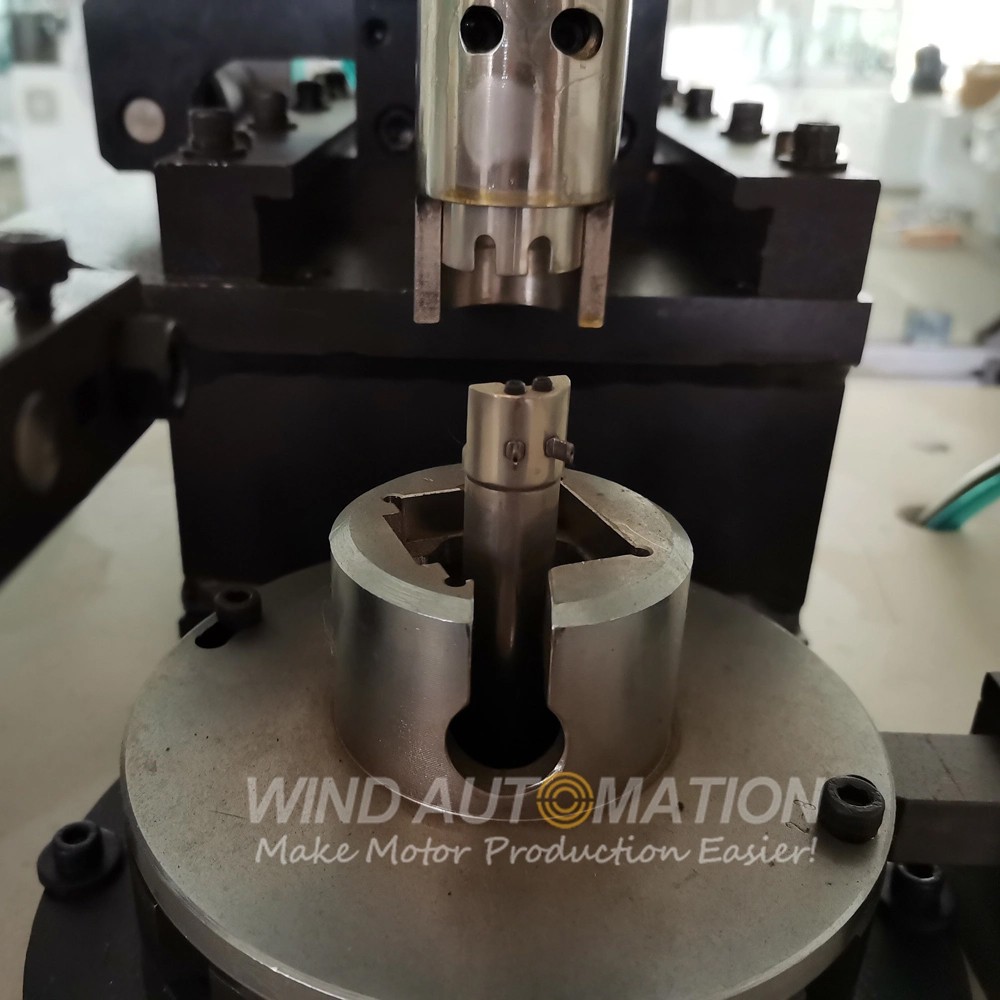

(5) Machine working station
