Starter-Wire-Twisting-Machine-Coil-Twisting-Machine

Product Description

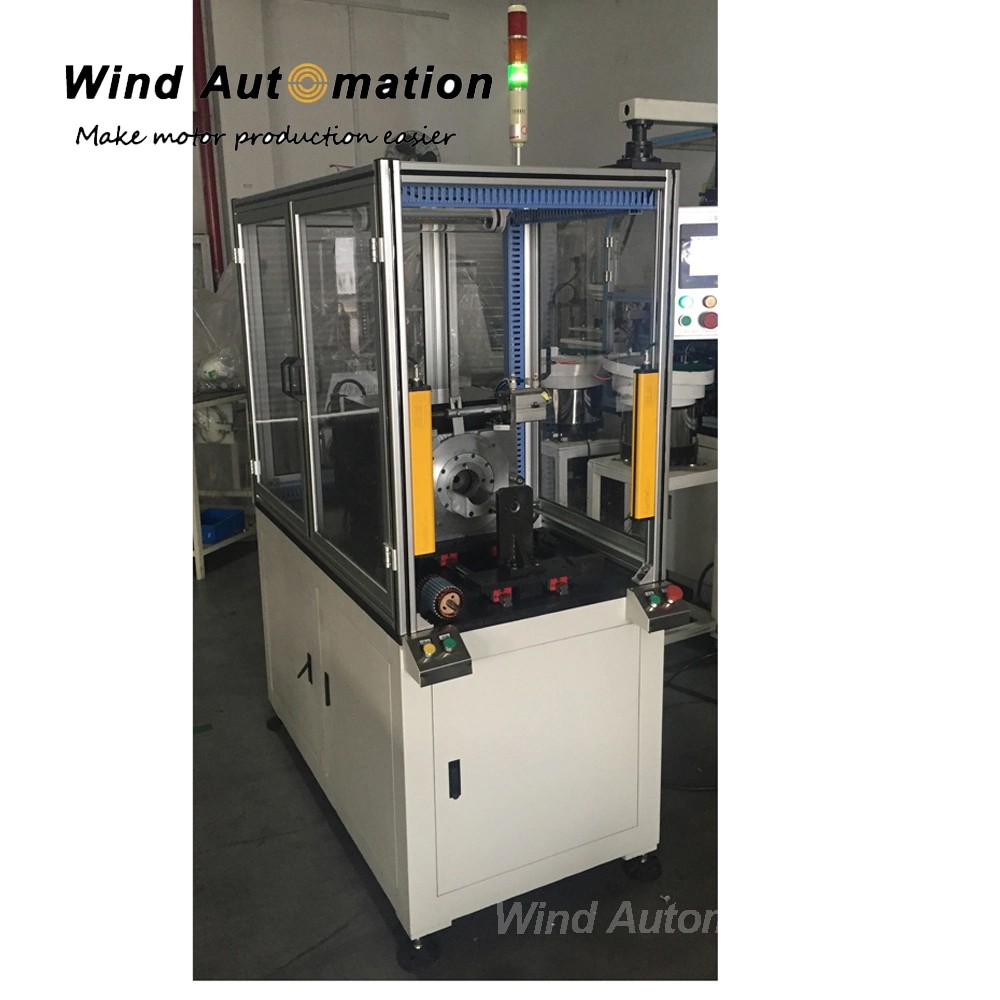

Starter Wire Twisting Machine Coil Twisting Machine

This servo controlled twisting machine is an ungrade model. The twisting method adopts double servo motor twisting method, The inserted protection device can effectively ensure that the root of the copper wire does not puncture with the copper chip, so as to guarantees the final quality. The equipment can automatically complete the clamping, automatically feed the servo twist head to a  pre-set angle, rebound to a set angle, and eject. etc.


(1) Specification

(2) Application
Suitable for armatures requiring high quality and reliability of starters and starter-generators for aircraft Industries.

(3) Features
Precise twisting angle,
Easy operation
Easy replacement of tooling fixtures
Good versatility
Fully automatic twisting cycle after loading of the armature
Coil twisting angle can be customized
Fast and easy readjustment

(3) Hairpin Twisting Machine working process:

Manually put the rotor into the positioning sleeve → press the start button with both hands → tighten the cylinder to tighten the rotor → insert the cylinder action → servo motor twist→ Rebound → Eject → Servo Return → Complete
