Compressor-Motor-Stator-Automatic-Insulation-Paper-Inserter

Basic Info.

Model NO.

WIND-160-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

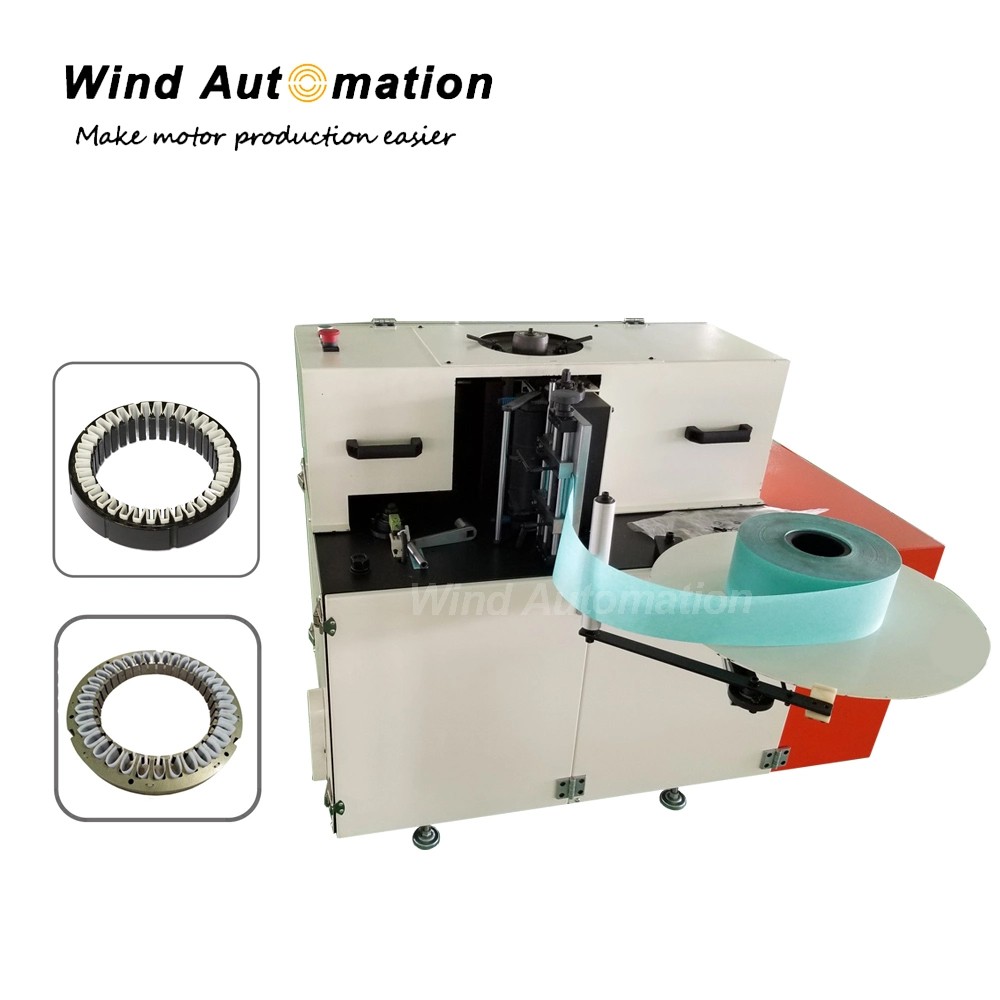

Compressor Motor Stator Automatic Insulation Paper Inserter

Compressor Motor Stator Automatic Insulation Paper Inserter

The production capacity of this machine is less than 1s/slot excluding the loading/unloading time.

(1) Specification

Stack length20~160mm
Stator ID50~120mm
Stator ODMax 190mm
Cuff height2~4mm/4~7mm
Paper thickness0.188~0.35mm
Cycle time0.8 s/slot
Power supply380V 50/60HZ
Weight250KG
Dimension1200x650x1200mm


(2) Feature
Manual loading and unloading
Parameter of different models can be edited, modified and displayed

Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator requiredLow noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length


(3) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.

Compressor Motor Stator Automatic Insulation Paper Inserter Compressor Motor Stator Automatic Insulation Paper Inserter
Compressor Motor Stator Automatic Insulation Paper Inserter
